1-Speed Transfer Case - Front View: Notes

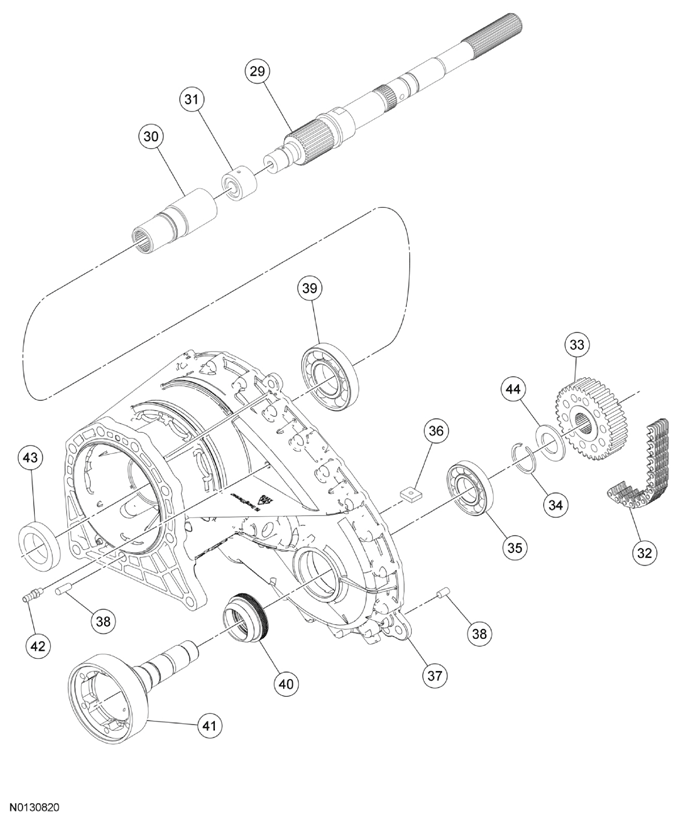

Fig 1: Exploded View Of 1-Speed Transfer Case - Front View

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
29	7061	Output shaft
30	7017	Output shaft collar
31	7A149	Input gear
32	7A029	Drive chain
33	7177	Driven sprocket
34	7917	Snap ring
35	7025	Front output shaft support bearing
36	7E290	Magnet
37	7005	Case
38	7B362	Dowels
39	7025	Front input shaft support bearing
40	7B215	Front output shaft oil seal
41	7061	Front output shaft
42	7034	Vent tube
43	7B215	Input flange seal
44	7N063	Driven sprocket spacer
