Transfer Case Rear Output Shaft Seal: Notes

SPECIAL TOOLS CHART

G07953714
 Installer, Input Shaft Oil Seal
308-249 (T96T-7127-A)

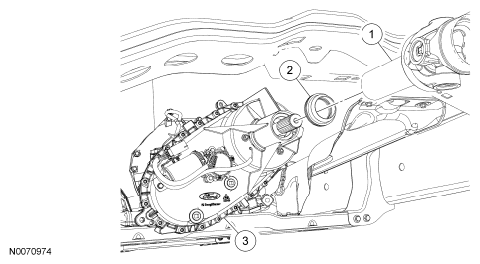

Fig 1: Identifying Transfer Case Rear Output Shaft Seal
G06128035Courtesy of FORD MOTOR CO.
Item Part Number Description
1 4602 Driveshaft
2 7B215 Rear output shaft seal
3 7A195 Transfer case
