Integrated Wheel End (IWE): Notes

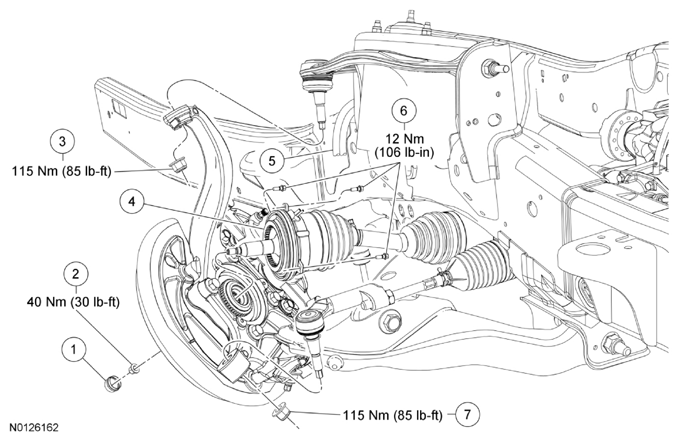

Fig 1: Integrated Wheel End (IWE) Replacement Components With Torque Specifications
G07953707Courtesy of FORD MOTOR CO.
Item Part Number Description
1 1131 Dust cap
2 N802827-S Axle nut
3 W520215-S Upper ball joint nut
4 3C247 Integrated Wheel End (IWE)
5 - Vacuum vent and supply tube
6 W710279-S IWE bolts (3 required)
7 W520215-S Tie-rod nut
