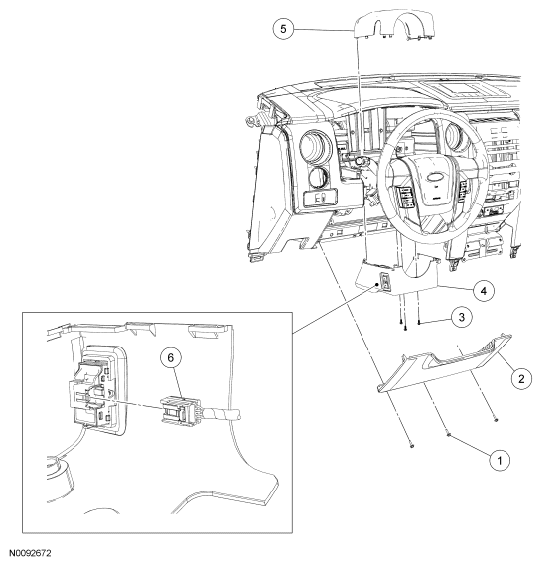

Steering Column Shroud
| Item | Part Number | Description |
|---|---|---|
| 1 | W707628 | Steering column opening trim panel screw (3 required) |
| 2 | 04459 | Steering column opening trim |
| 3 | W710485 | Lower steering column shroud screw (3 required) |
| 4 | 3530 | Lower steering column shroud |
| 5 | 3530 | Upper steering column shroud |
| 6 | - | Power tilt switch electrical connector (part of 14401) (if equipped) |
All columns
- Remove the 3 screws and steering column opening trim panel.
- Remove the upper and lower steering column shrouds.
- If equipped, position the selector lever boot aside.
- Unclip the upper steering column shroud from the lower steering column shroud and remove.
- Remove the 3 screws and the lower shroud.
Power tilt columns
- Disconnect the power tilt electrical connector.
All columns
- To install, reverse the removal procedure.
