Fuel Pump Control Module: Notes

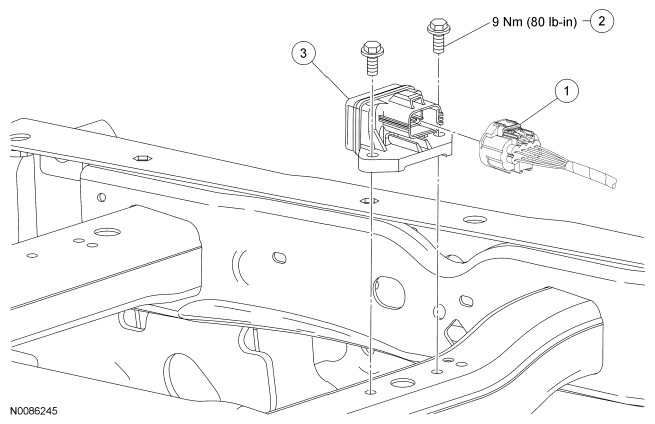

Fig 1: Exploded View Of Fuel Pump Control Module With Torque Specifications
G06455525Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Fuel Pump (FP) control module electrical connector (part of 14404)
2 W705549 FP control module bolt (2 required)
3 9345 FP control module
