Master window adjust switch - Expedition: Schematic

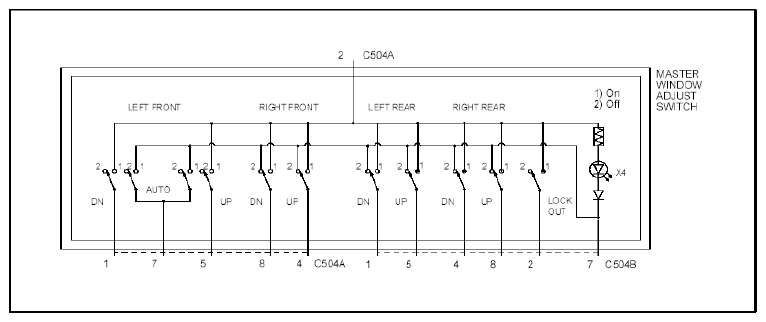

Fig 1: Master Window Adjust Switch (Expedition) Schematic Diagram
G07900672Courtesy of FORD MOTOR CO.
