Steering Gear: Notes
SPECIAL TOOLS CHART
| Separator, Ball Joint Tool 204-592 |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

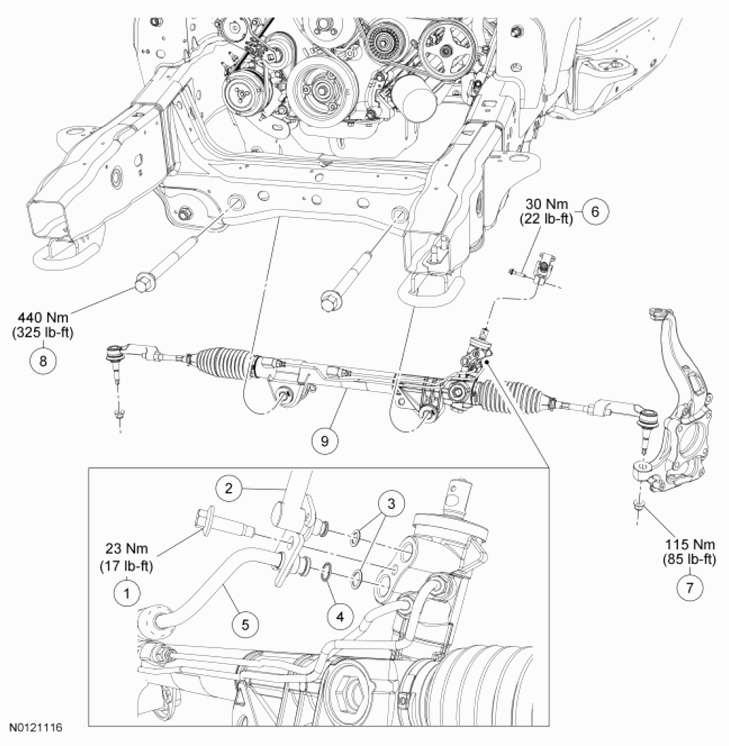

| Item | Part Number | Description |
|---|---|---|
| 1 | W712679 | Steering line clamp plate bolt |
| 2 | 3F886 | O-ring seals (2 required) |
| 3 | 3A713C | Return line |
| 4 | 3B602 | Back-up O-ring seal |
| 5 | 3A719 | Pressure line |
| 6 | N808684 | Steering column shaft-to-steering gear bolt |
| 7 | W520215 | Outer tie-rod end nut (2 required) |
| 8 | W713954 | Steering gear-to-crossmember bolt (2 required) |
| 5 | 3504 | Steering gear |
