Steering Column Shaft: Notes

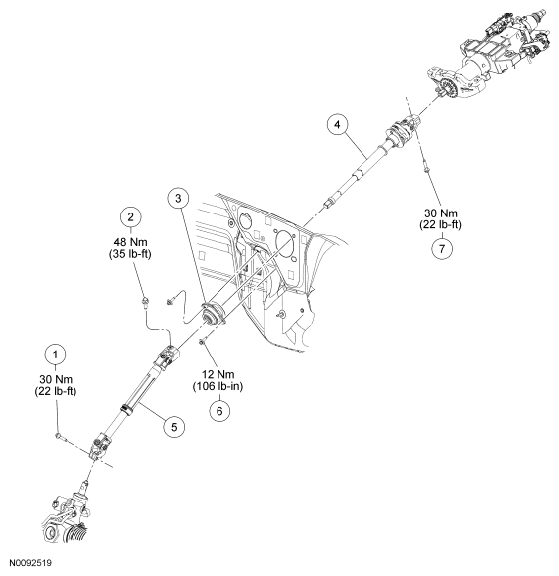

Fig 1: Exploded View Of Steering Column Shaft With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N808684	Lower steering column shaft-to-steering gear bolt
2	W710570	Lower steering column shaft-to-upper steering column shaft bolt
3	3D677	Steering column shaft dash seal
4	3E751	Upper steering column shaft
5	3C662	Lower steering column shaft
6	W705132	Steering column shaft dash seal bolt
7	N808684	Upper steering column shaft-to-steering column bolt
