Horn: Service and Repair

Horn

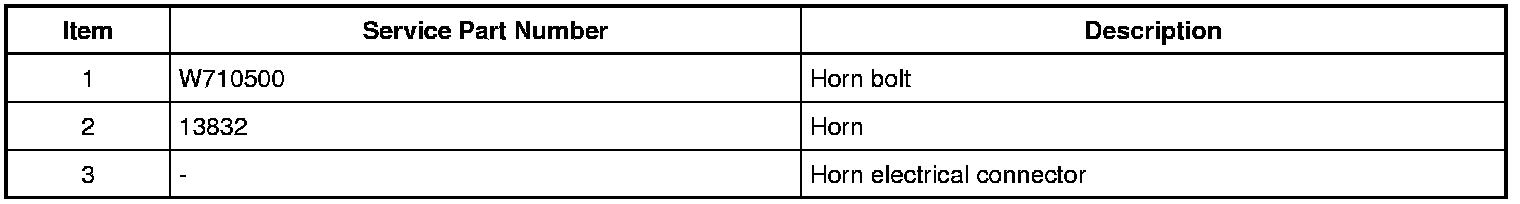

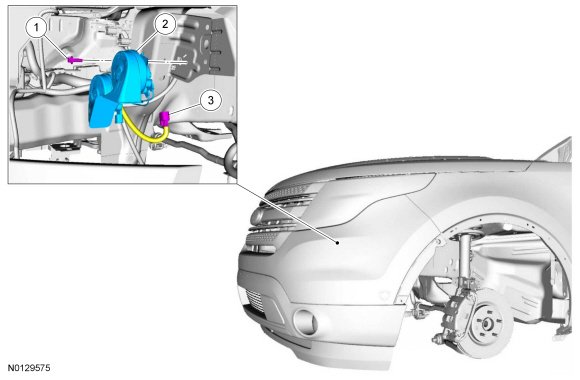

Exploded View










Removal

1. With the vehicle in NEUTRAL, position it on a hoist. REFER to Jacking and Lifting.

2. Remove the 3 screws from the LH (Left Hand) lower splash shield and position aside.





3. NOTE: The horn and bracket are installed as an assembly.
Remove the bolt and horn assembly.

- Disconnect the electrical connector.

- To install, tighten to 13 Nm (115 lb-in).

Installation

1. To install, reverse the removal procedure.
