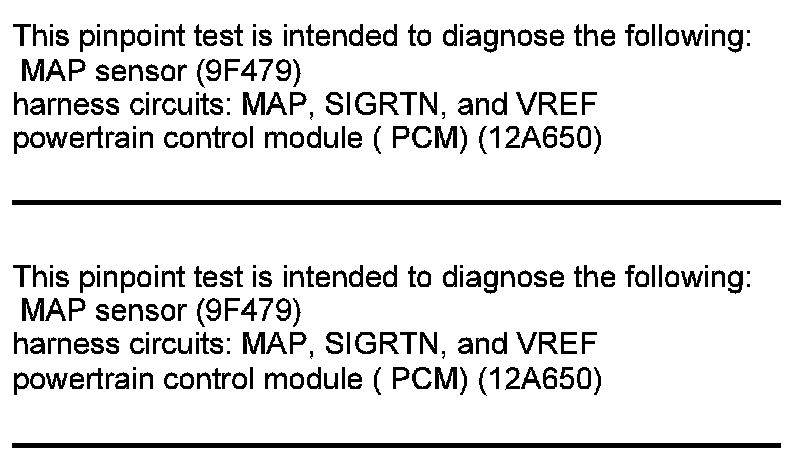

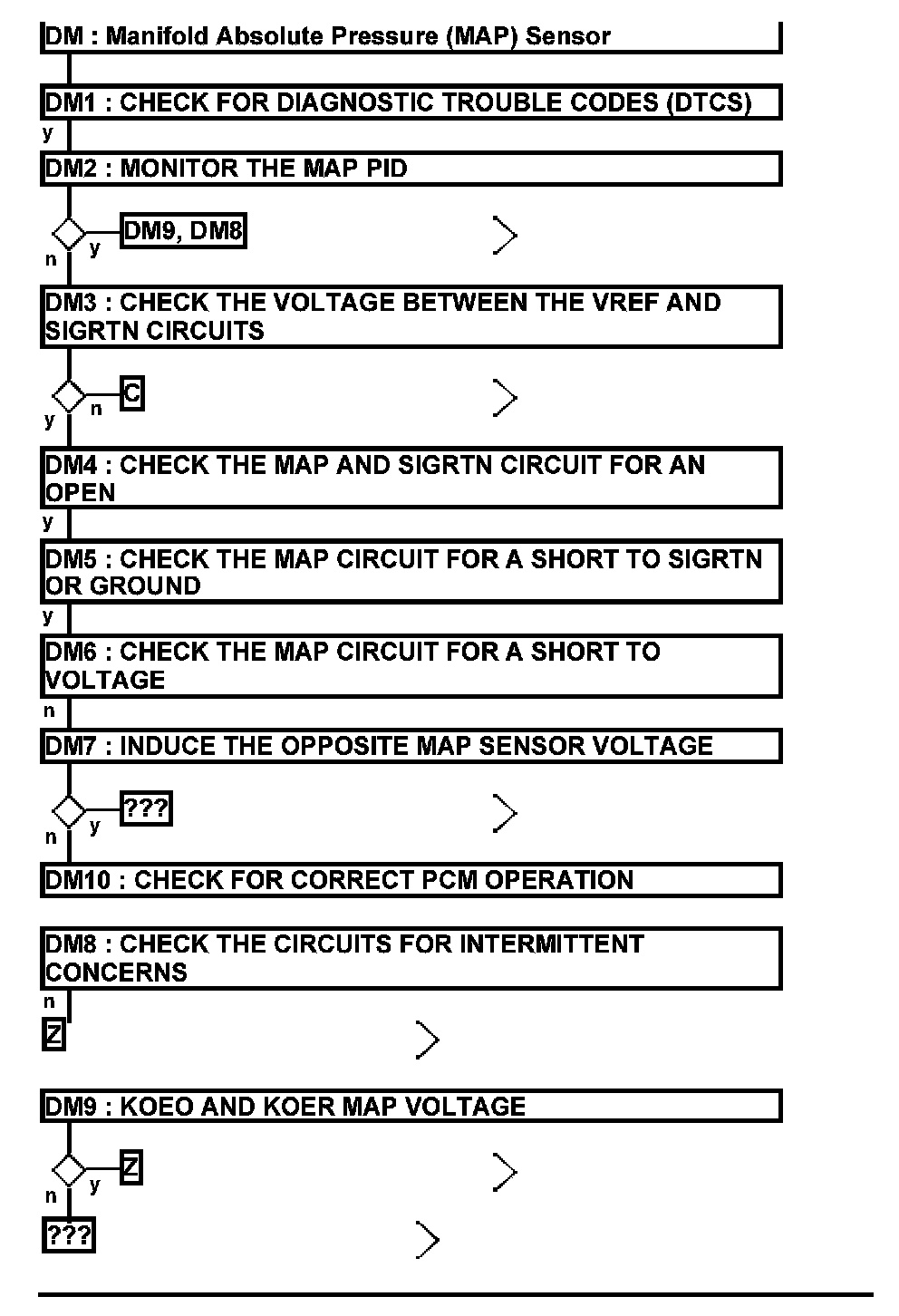

Test DM: Manifold Absolute Pressure (MAP) Sensor
Manifold Absolute Pressure (MAP) Sensor

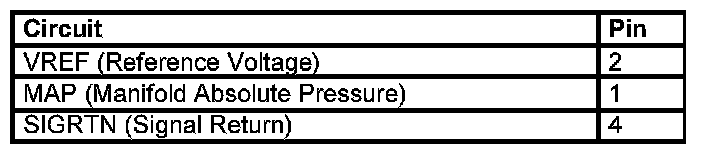

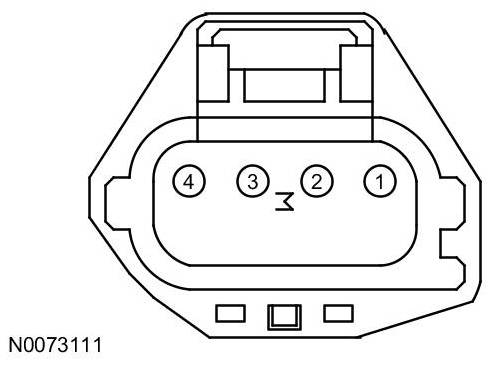

Manifold Absolute Pressure (MAP) Sensor Connector
Harness Side

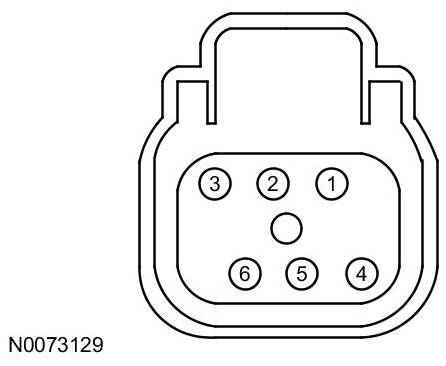

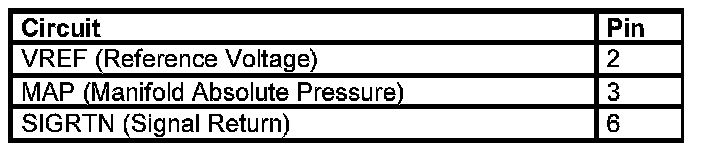

EGR System Module (ESM) Connector
Harness Side

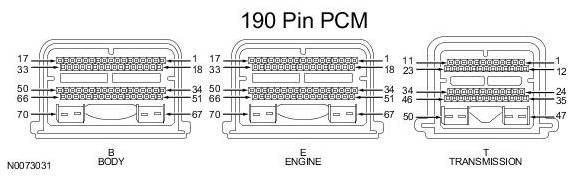

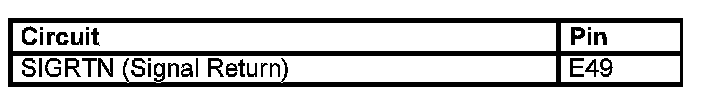

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference values.
Harness Side
