Exploded View

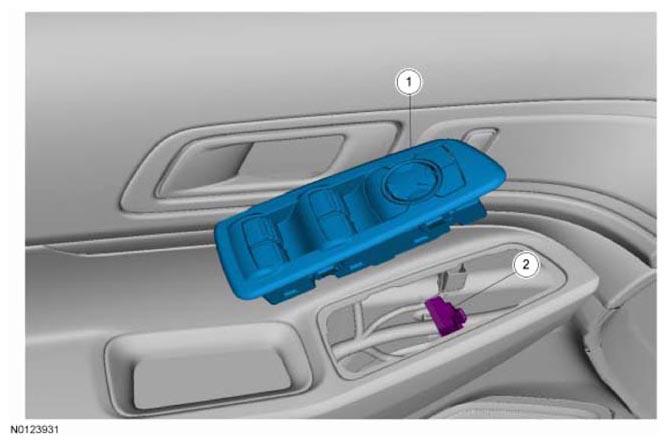

Fig 1: Identifying Driver Window Control Switch And Electrical Connector
G08040398Courtesy of FORD MOTOR CO.
Item Service Part Number Description Tool Number Material Name Notes
1 14529 Driver window control switch - - -
2 - Driver window control switch electrical connector (part of 14630 RH / 14631 LH - - -
