Exploded View

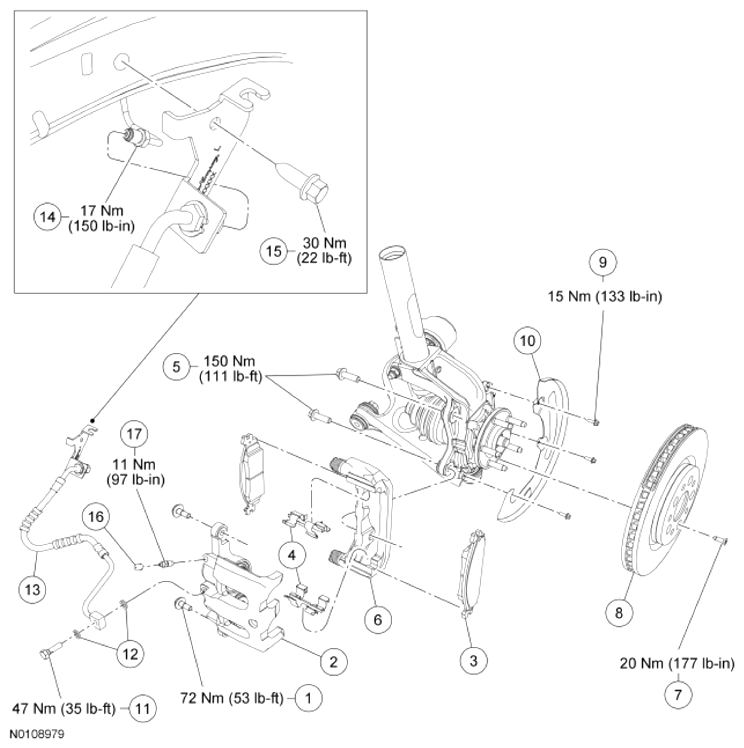

Fig 1: Exploded View Of Disc Brake System With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Service Part Number	Description	Torque	Material Name	Notes
1	part of service kit 2386	Brake caliper guide pin bolt (2 required)	72 Nm (53 lb-ft)	-	-
2	2B120 RH / 2B121 LH	Brake caliper	-	-	-
3	part of service kit 2001	Brake pad	-	-	-
4	part of service kit 2001	Spring clips (2 required)	-	-	-
5	W715091	Brake caliper anchor plate bolts (2 required)	150 Nm (111 lb-ft)	-	-
6	2B292 RH / 2B293 LH	Brake caliper anchor plate	-	-	-
7	W708733	Brake disc screw	20 Nm (177 lb-in)	-	-
8	1125	Brake disc	-	-	-
9	W505255	Brake disc shield bolt (3 required)	15 Nm (133 lb-in)	-	-
10	2K004 RH / 2K005 LH	Brake disc shield	-	-	-
11	385116	Brake caliper flow bolt	47 Nm (35 lb-ft)	-	-
12	388949	Copper washers (2 required)	-	-	-
13	2078 RH / 2B557 LH	Brake flexible hose	-	-	-
14	part of 2C296	Brake tube fitting	17 Nm (150 lb-in)	-	-
15	W704911	Brake flexible hose bracket bolt	30 Nm (22 lb-ft)	-	-
16	part of 2208	Bleeder screw cap	-	-	-
17	2208	Bleeder screw	11 Nm (97 lb-in)	-	-
