Fuel Pump Control Module: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the RH C-pillar trim panel, REFER to C-PILLAR TRIM PANEL - WITH INFLATABLE SAFETY BELTS , or REFER to C-PILLAR TRIM PANEL - WITHOUT INFLATABLE SAFETY BELTS .
    • 6 Nm (53 lb-in).

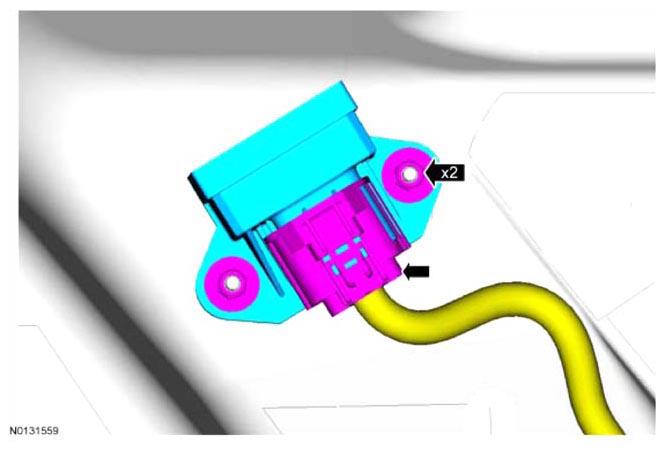

    Fig 1: Locating Fuel Pump Control Module Connector And Mounting Bolts
    G08030320Courtesy of FORD MOTOR CO.
