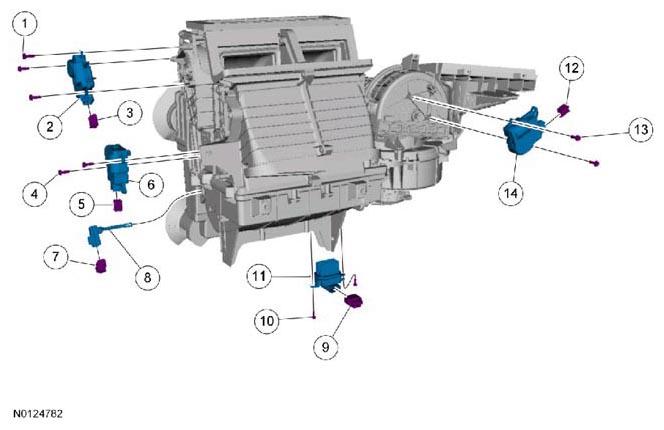

| 1 |
W701696 |
Defrost/panel/floor mode door actuator screw (3 required) |
| 2 |
19E616 |
Defrost/panel/floor mode door actuator |
| 3 |
- |
Defrost/panel/floor mode door actuator electrical connector (part of 14401) |
| 4 |
W701696 |
LH temperature blend door actuator screw (2 required) |
| 5 |
- |
LH temperature blend door actuator electrical connector (part of 14401) |
| 6 |
19E616 |
LH temperature blend door actuator |
| 7 |
- |
Evaporator discharge air temperature sensor electrical connector (part of 14401) |
| 8 |
19C734 |
Evaporator discharge air temperature sensor |
| 9 |
- |
Blower motor speed control electrical connector (part of 14401) |
| 10 |
W701696 |
Blower motor speed control screw (2 required) |
| 11 |
19E624 |
Blower motor speed control |
| 12 |
- |
Air inlet mode door actuator electrical connector (part of 14401) |
| 13 |
W701696 |
Air inlet mode door actuator screw (2 required) |
| 14 |
19E616 |
Air inlet mode door actuator |
