Pinpoint Test

1. Ignition OFF.

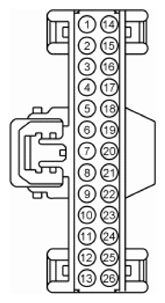

2. Disconnect: SCCM C2414A.
3. Ignition ON.
4. Measure:

   SCCM			Ground
   C2414A			Ground
   Pin	Circuit	Measurement	Pin	Circuit
   10	SBP23 (WH/RD)		-	-

Is the voltage greater than 11 volts?

1. Yes: GO to 2  .
2. No: VERIFY the BCM fuse 23 (15A) is OK. If OK, REPAIR the circuit. If not OK, REFER to the appropriate wiring diagrams to identify the possible causes of the circuit short. REFER to OEM FUSE AND RELAY INFORMATION and OEM WIRING DIAGRAMS .

1. Ignition OFF.
2. Measure:

   SCCM			Ground
   C2414A			Ground
   Pin	Circuit	Measurement	Pin	Circuit
   13	GD214 (BK/BU)		-	-

Is the resistance less than 3 ohms?

1. Yes: GO to 3  .
2. No: REPAIR the circuit.

1. Measure:

   SCCM			DLC
   C2414A			C251
   Pin	Circuit	Measurement	Pin	Circuit
   14	VDB04 (WH/BU)		6	VDB04 (WH/BU)
   15	VDB05 (WH)		14	VDB05 (WH)

Are the resistances less than 3 ohms?

1. Yes: CONNECT the negative battery cable. GO to 4  .
2. No: REPAIR the circuit in question.

1. Ignition OFF.
2. Disconnect and inspect the SCCM connectors.
3. Repair:
   • corrosion (replace connector or terminals - clean module pins)
   • damaged or bent pins - replace terminals/pins
   • pushed-out pins - replace pins as necessary
4. Reconnect the SCCM connectors. Make sure they seat and latch correctly.
5. Operate the system and verify the concern is still present

Is the concern still present?

1. Yes: CHECK OASIS  for any applicable TSBs  . If a TSB exists for this concern, discontinue this test and follow TSB instructions. If no TSBs  address this concern, INSTALL a new SCCM. REFER to STEERING COLUMN CONTROL MODULE (SCCM) .
2. No: The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector.
