Door lock control switch, driver side - with memory: Schematic

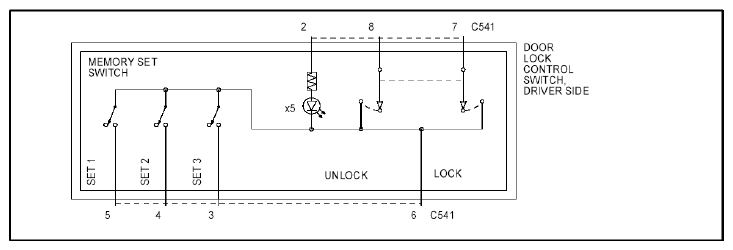

Fig 1: Door Lock Control Switch, Driver Side - With Memory Schematic
G07895565Courtesy of FORD MOTOR CO.
