Door lock control switch, driver side - without memory: Schematic

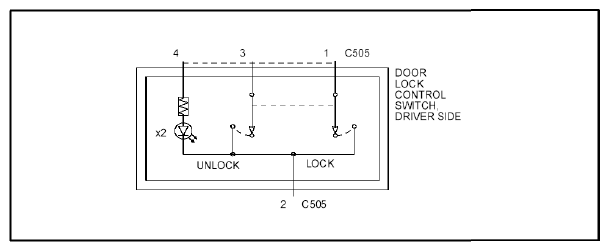

Fig 1: Door Lock Control Switch, Driver Side - Without Memory Schematic
G07895563Courtesy of FORD MOTOR CO.
