Roof opening panel control switch
>>
Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Roof opening panel control switch: Schematic

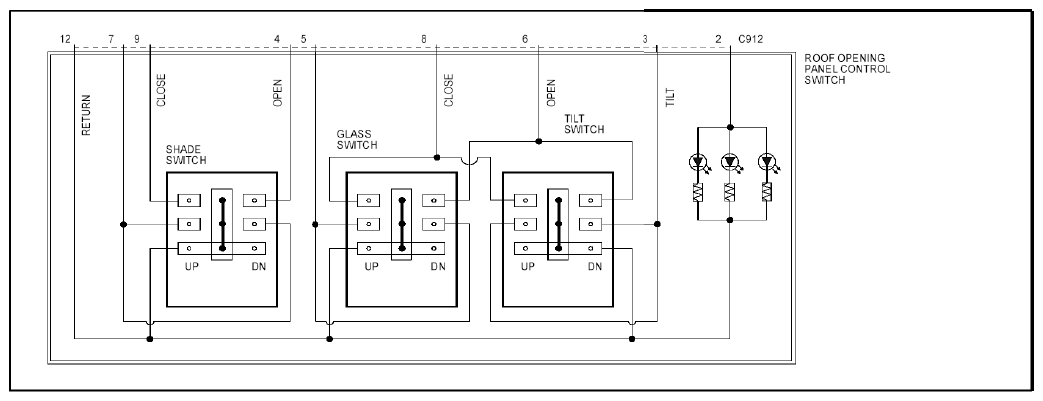

Fig 1: Roof Opening Panel Control Switch Schematic
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
