Register - RH: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

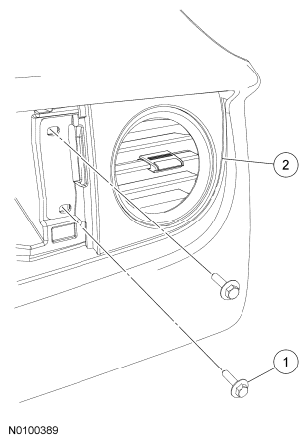

Fig 1: Identifying RH Register Assembly And Screw
G06384690Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W705314 RH register screw
2 19893 RH register assembly
