Strut and Spring Assembly: Notes
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Silicone Brake Caliper Grease and Dielectric Compound XG-3-A |
ESE-M1C171-A |

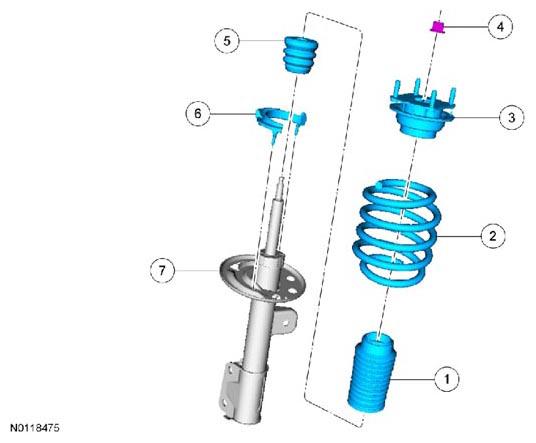

| Item | Part Number | Description |
|---|---|---|
| 1 | - | 3C239 Dust boot |
| 2 | - | 5130 Spring |
| 3 | - | 18183 Upper strut mount |
| 4 | - | W520215 Strut rod nut 133 Nm (98 lb-ft) |
| 5 | - | 18198 Jounce bumper |
| 6 | - | 5415 Lower spring insulator |
| 7 | - | 18124 Strut assembly |
