Exploded View

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

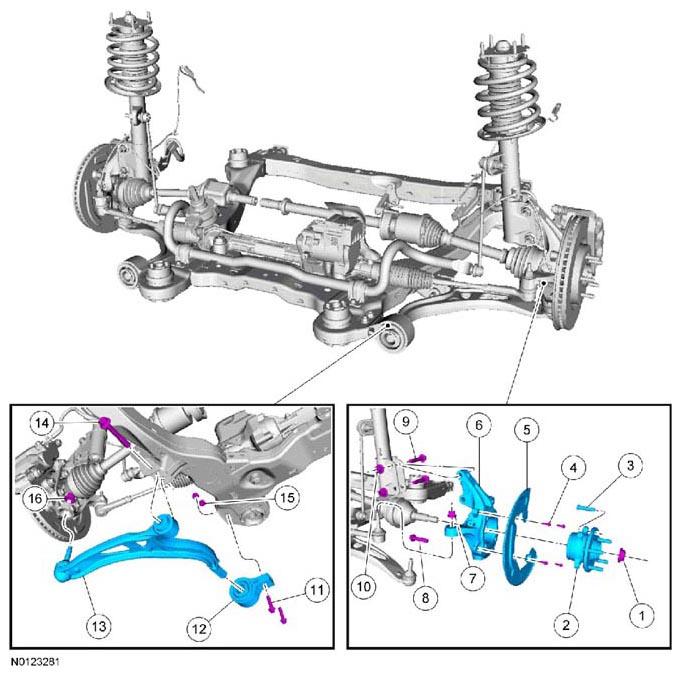

G07420588

Item	Service Part Number	Description	Torque	Material Name	Notes
1	W705967	Wheel hub nut	-	-	-
2	2C300	Wheel bearing and wheel hub	-	-	-
3	1107	Wheel stud (5 required)	-	-	-
4	W505255	Splash shield screw (4 required)	15 Nm (133 lb-in)	-	-
5	2K005 LH/2K004 RH	Splash shield	-	-	-
6	3L171 LH/3K170 RH	Wheel knuckle	-	-	-
7	W710015	Tie-rod end nut (2 required)	150 Nm (111 lb-ft)	-	-
8	W714516	Wheel bearing and wheel hub bolt (4 required)	165 Nm (122 lb-ft)	-	-
9	W715295	Lower strut-to-wheel knuckle bolt (2 required)	-	-	-
10	W520216	Lower strut-to-wheel knuckle nut (2 required)	250 Nm (184 lb-ft)	-	-
11	W708848	Lower control arm rearward bolt (2 required)	99 Nm (73 lb-ft)	-	-
12	3C339 LH/3C403 RH	Lower control arm rearward bushing	-	-	-
13	3051 LH/3042 RH	Lower control arm	-	-	-
14	W707516	Lower control arm forward bolt	265 Nm (195 lb-ft)	-	-
15	W520515	Lower control arm rearward nut (4 required)	-	-	-
16	W714890	Lower ball joint nut	200 Nm (148 lb-ft)	-	-

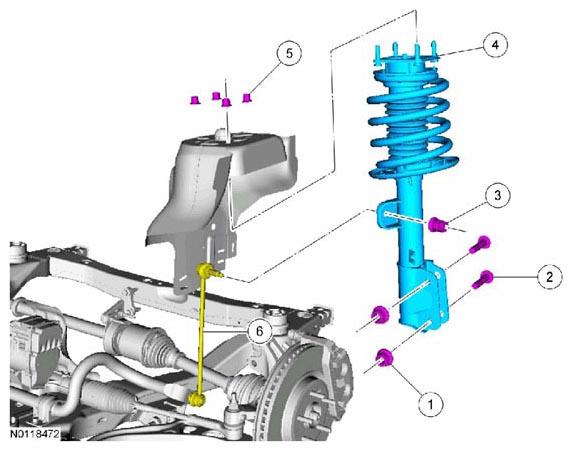

G07420589

Item	Service Part Number	Description	Torque	Material Name	Notes
1	W520216	Lower strut-to-wheel knuckle nut (2 required)	250 Nm (184 lb-ft)	-	-
2	W520216	Lower strut-to-wheel knuckle bolt (2 required)	-	-	-
3	W713968	Stabilizer bar link upper nut	150 Nm (111 lb-ft)	-	-
4	5B421 LH/5B420 RH	Strut and spring assembly	-	-	-
5	W714682	Upper strut mount nut (4 required)	55 Nm (41 lb-ft)	-	-
6	5K484	Stabilizer bar link	-	-	-

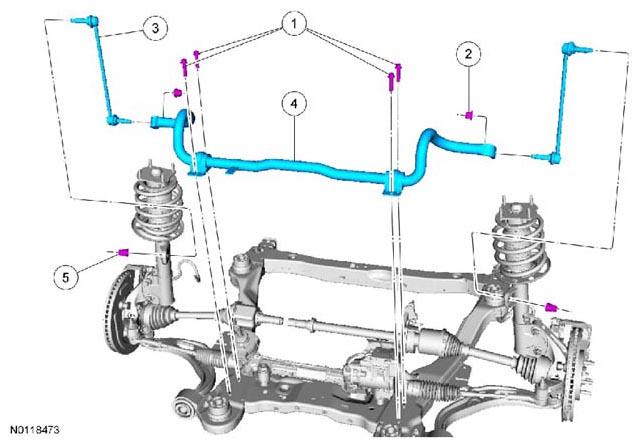

G07420590

Item	Service Part Number	Description	Torque	Material Name	Notes
1	W505274	Stabilizer bar bracket bolts (4 required)	55 Nm (41 lb-ft)	-	-
2	W520215	Stabilizer bar link lower nut (2 required)	150 Nm (111 lb-ft)	-	-
3	5K484	Stabilizer bar link (2 required)	-	-	-
4	5482	Stabilizer bar assembly	-	-	-
5	W713968	Stabilizer bar link upper nut	150 Nm (111 lb-ft)	-	-

For additional information, refer to the appropriate procedure.
