System Operation: SelectShift

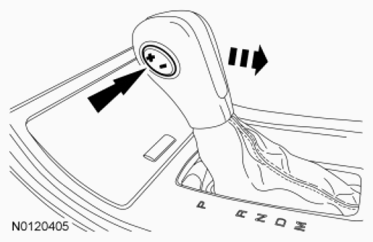

Fig 1: Shifting SelectShift Lever
G07402080Courtesy of FORD MOTOR CO.

When the selector lever is moved to the M position, the driver can shift the transaxle manually using the SelectShift ™ switch mounted on the selector lever knob. By pressing plus (+) on the toggle switch once will shift the transmission to next highest gear. Pressing the minus (-) on the toggle switch will shift the transmission to next lowest gear.

The SelectShift ™ switch is not serviceable. If a new switch is required, install a new selector lever knob. Refer to Selector Lever Knob .
