General Procedure

NOTE: If it is necessary to use the override procedure to move the selector lever out of the PARK position, it is possible that an electrical failure has occurred. Using the scan tool check for DTCs

This vehicle is equipped with a brake shift interlock feature that prevents the selector lever from being moved out of PARK when the ignition is in the ON position until the brake pedal is applied.

If the selector lever cannot be moved out of the PARK position when the ignition is in the ON position and the brake pedal is applied:

Apply the parking brake.
Open the forward storage compartment and remove the rubber protective cover.

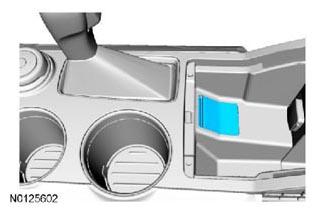

Fig 1: Identifying Center Console Rubber Protective Cover
Courtesy of FORD MOTOR CO.
Using a suitable tool, carefully pry off and remove the BSIA access cover.

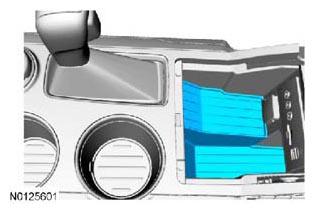

Fig 2: Identifying BSIA Access Cover
Courtesy of FORD MOTOR CO.
NOTE: Storage bin has been removed for clarity.
From the front of the selector lever, locate the BSIA, apply the brake, pull and hold the BSIA lever while moving the selector lever into NEUTRAL.

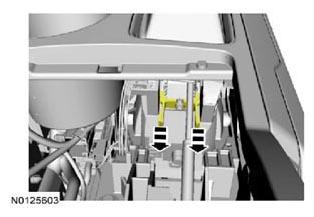

Fig 3: Removing Storage Bin
Courtesy of FORD MOTOR CO.
Install the BSIA access cover.

Fig 4: Identifying BSIA Access Cover
Courtesy of FORD MOTOR CO.
Install the rubber protective cover and close the forward storage compartment.

Fig 5: Identifying Center Console Rubber Protective Cover
Courtesy of FORD MOTOR CO.
Press the brake pedal, start the vehicle and release the parking brake.
