General Procedure

Disconnect the selector lever cable end from the manual control lever.

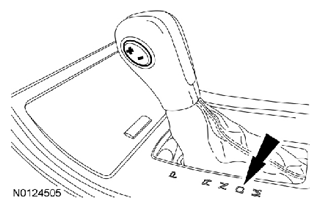

Fig 1: Locating Manual Control Lever
Courtesy of FORD MOTOR CO.
Place the selector lever in DRIVE.

Fig 2: Shifting Selector Lever In Drive
Courtesy of FORD MOTOR CO.
Place the manual control lever in DRIVE.
1. Rotate the manual control lever clockwise until it stops.
2. Rotate the manual control lever counterclockwise one detent.
Fig 3: Rotating Manual Control Lever
Courtesy of FORD MOTOR CO.
Unlock the adjuster.
1. Pry the latch up.
2. Push the lock tab to slide it over.
Fig 4: Pushing Lock Tab
Courtesy of FORD MOTOR CO.
Slide the selector lever cable end forward or backward to align it with the manual control lever.

Fig 5: Sliding Cable End Forward Or Backward
Courtesy of FORD MOTOR CO.
With the adjuster locking tab released, connect the selector lever cable end to the manual control lever.

Fig 6: Locating Manual Control Lever
Courtesy of FORD MOTOR CO.
NOTE: After locking the adjuster, pull back on the adjuster to make sure it is securely installed.

Slide the release tab back to lock the adjuster.

Fig 7: Sliding Adjuster Tab To LOCK Position
Courtesy of FORD MOTOR CO.
Verify the vehicle starts in PARK and NEUTRAL only and the reverse lamps illuminate in REVERSE.
