Fog/Driving Lamp: Service and Repair

Fog Lamp

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

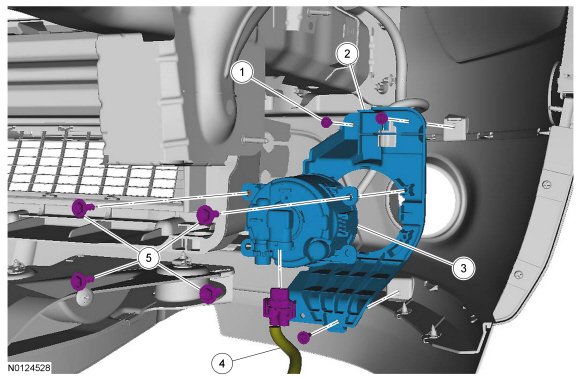

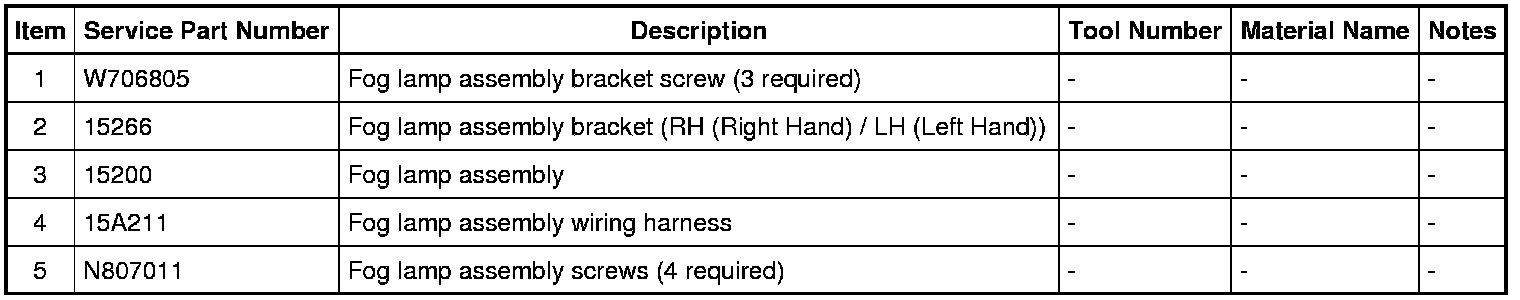

Exploded View










Removal

NOTE: Make sure the headlamp switch and the ignition switch are in the OFF position.

1. Remove the front fender splash shield. REFER to Fender Splash Shield .

2. Remove the fog lamp assembly.

1. Disconnect the fog lamp electrical connector at the fog lamp assembly.

2. Remove the 4 fog lamp assembly screws and the fog lamp assembly.

Installation

NOTE: Make sure the headlamp switch and the ignition switch are in the OFF position.

1. Install the fog lamp assembly.

1. Install the fog lamp assembly and the 4 screws.

2. Connect the fog lamp assembly electrical connector at the fog lamp assembly.

2. Install the front fender splash shield. REFER to Fender Splash Shield .
