Engine Ignition

Engine Ignition - 2.0L GTDI

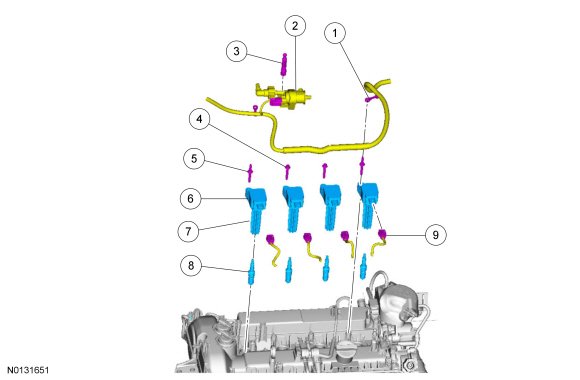

Component Location

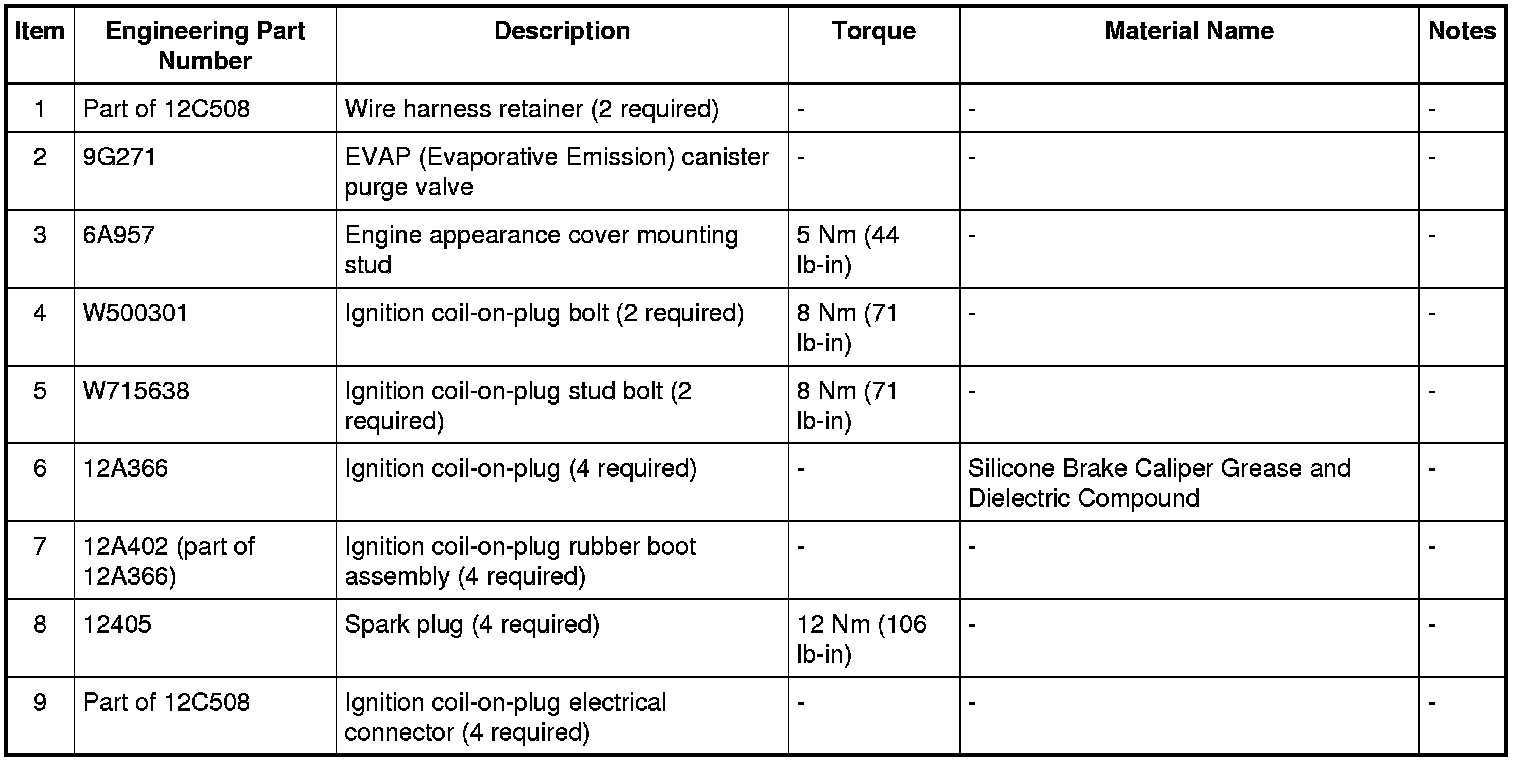

Ignition system components, and.










System Operation - Refer to Computers and Control Systems Information

REFER to Computers and Control Systems Information, Description and Operation.

Component Description - Refer to Computers and Control Systems Information

REFER to Computers and Control Systems Information, Description and Operation.
