Symptom Related Diagnostic Procedures




Symptom Chart(s)

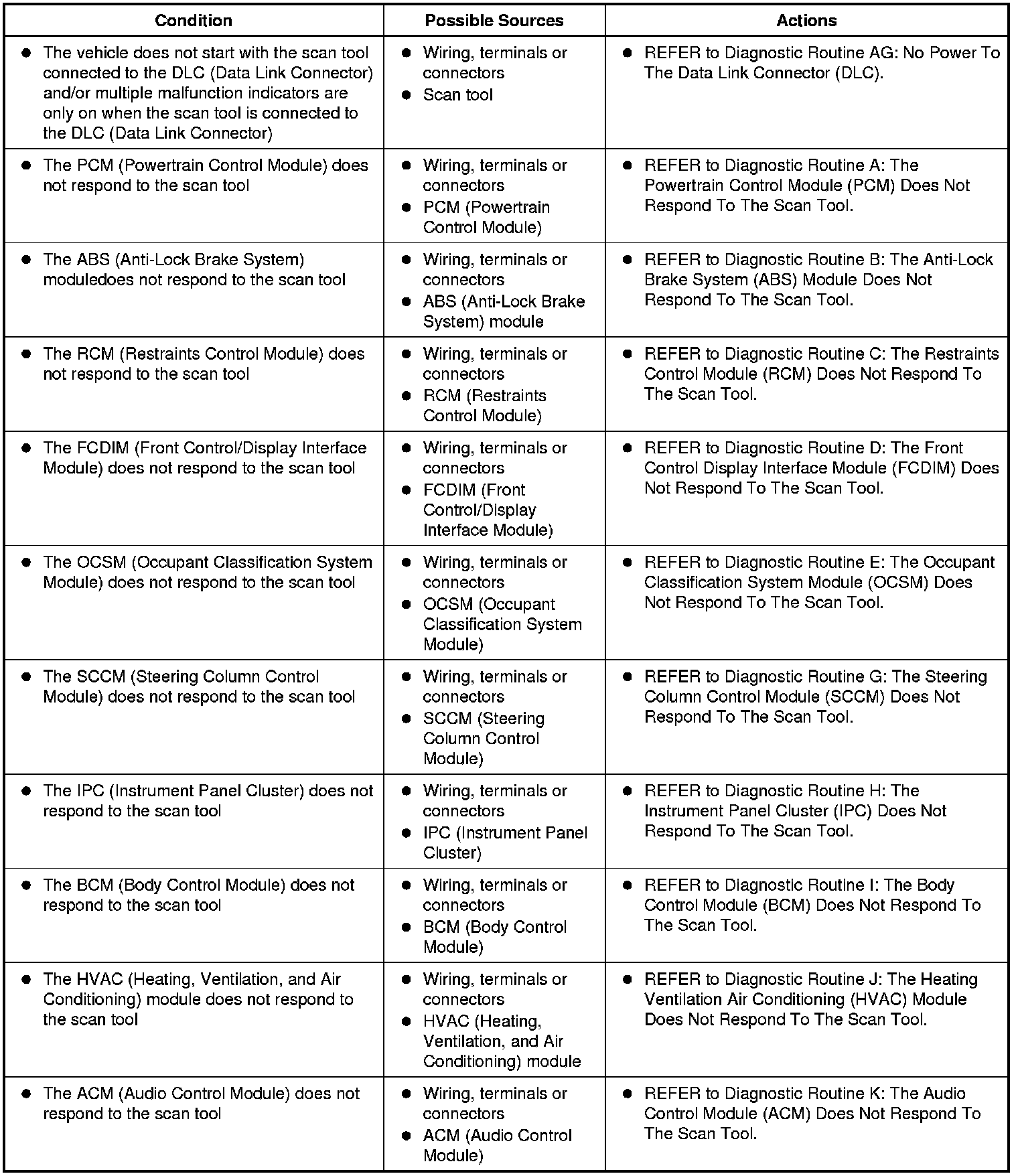

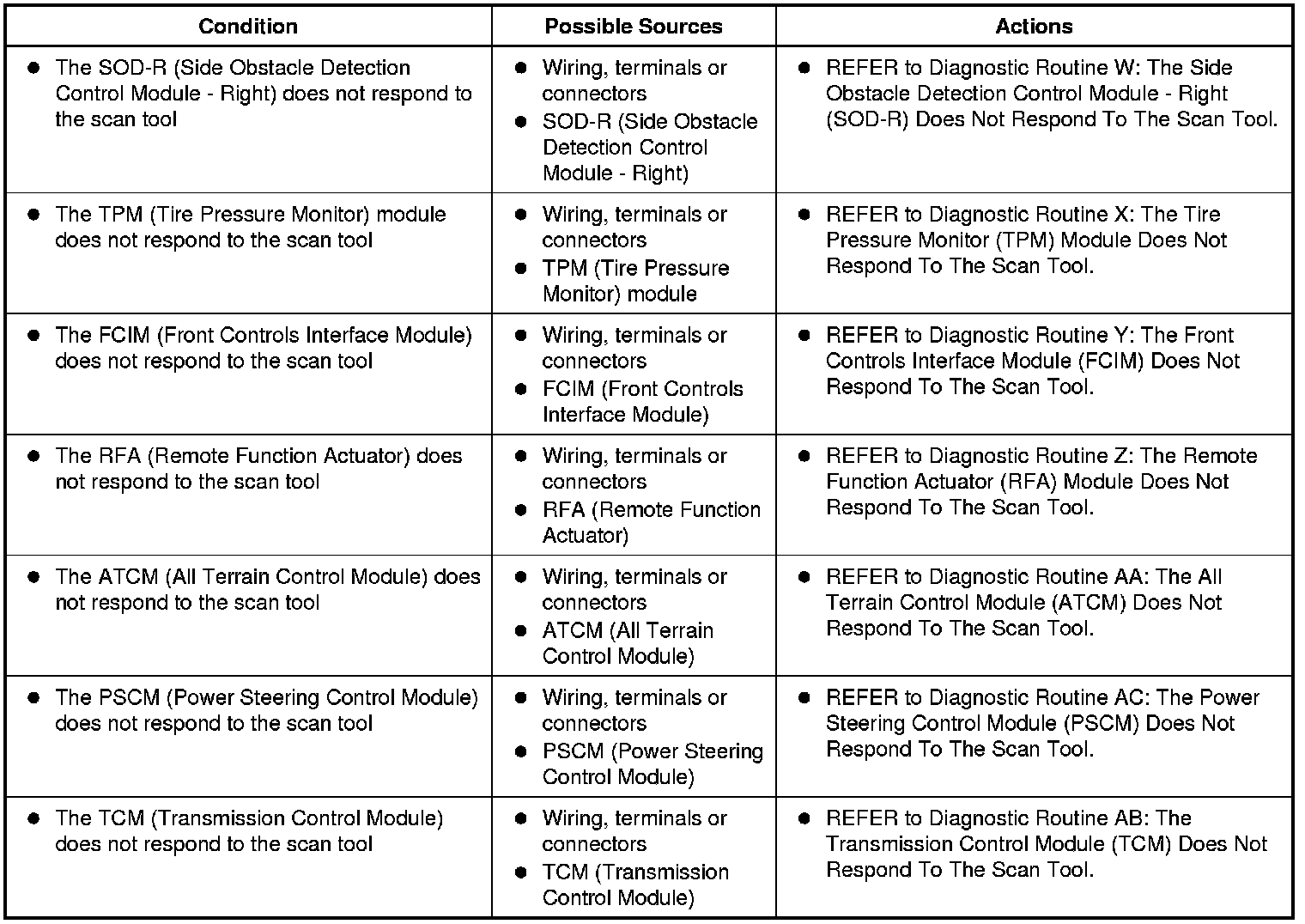

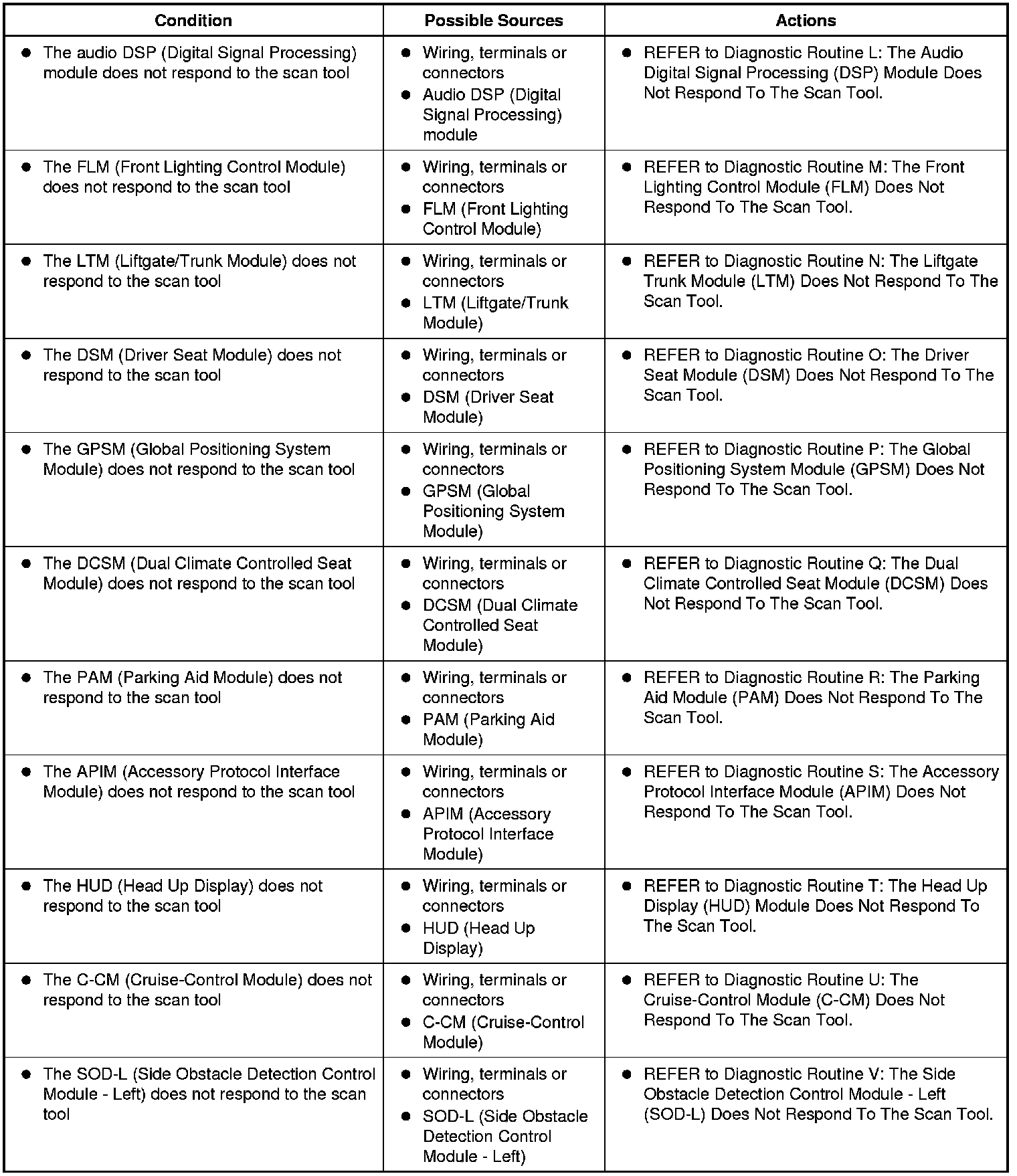

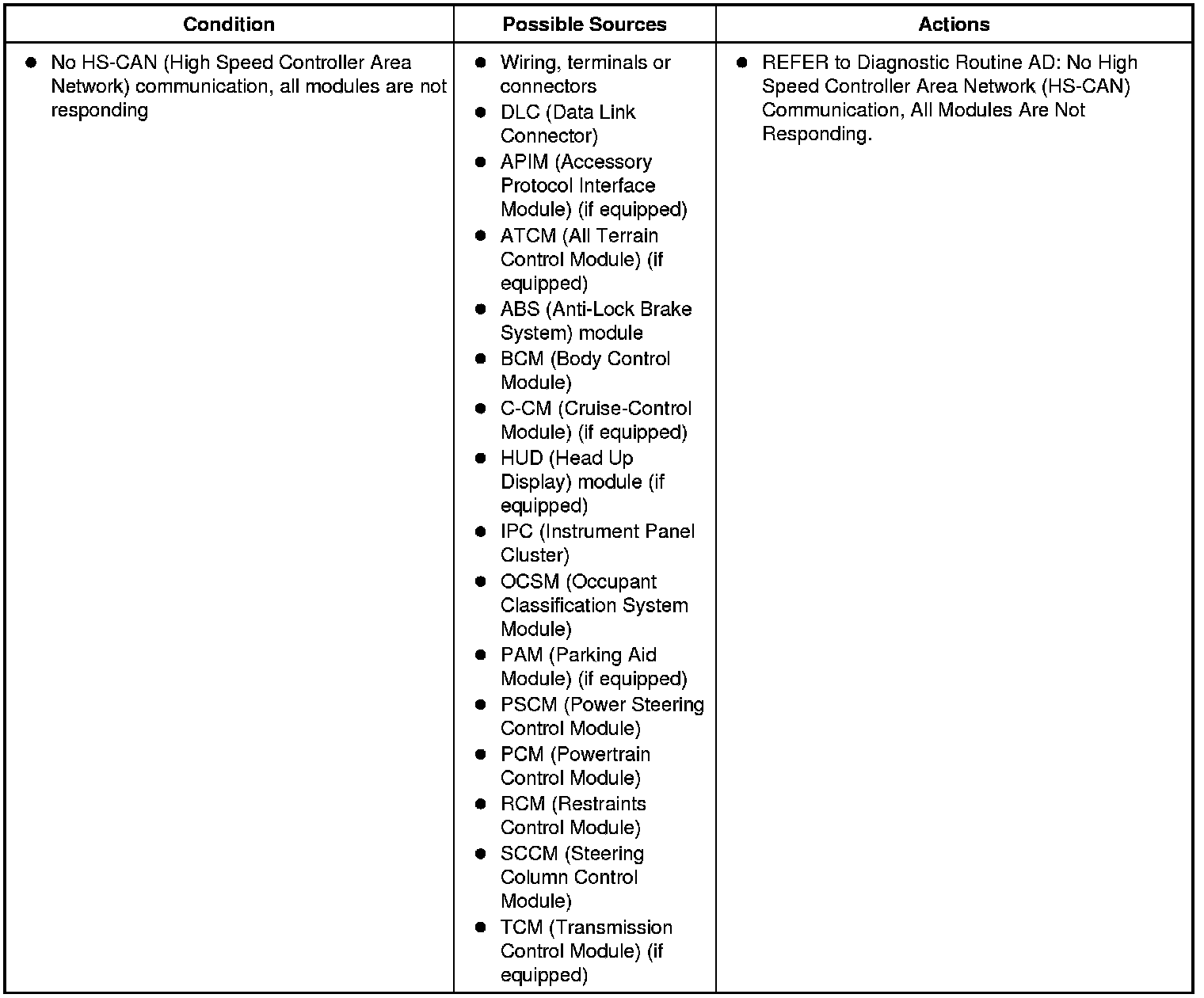

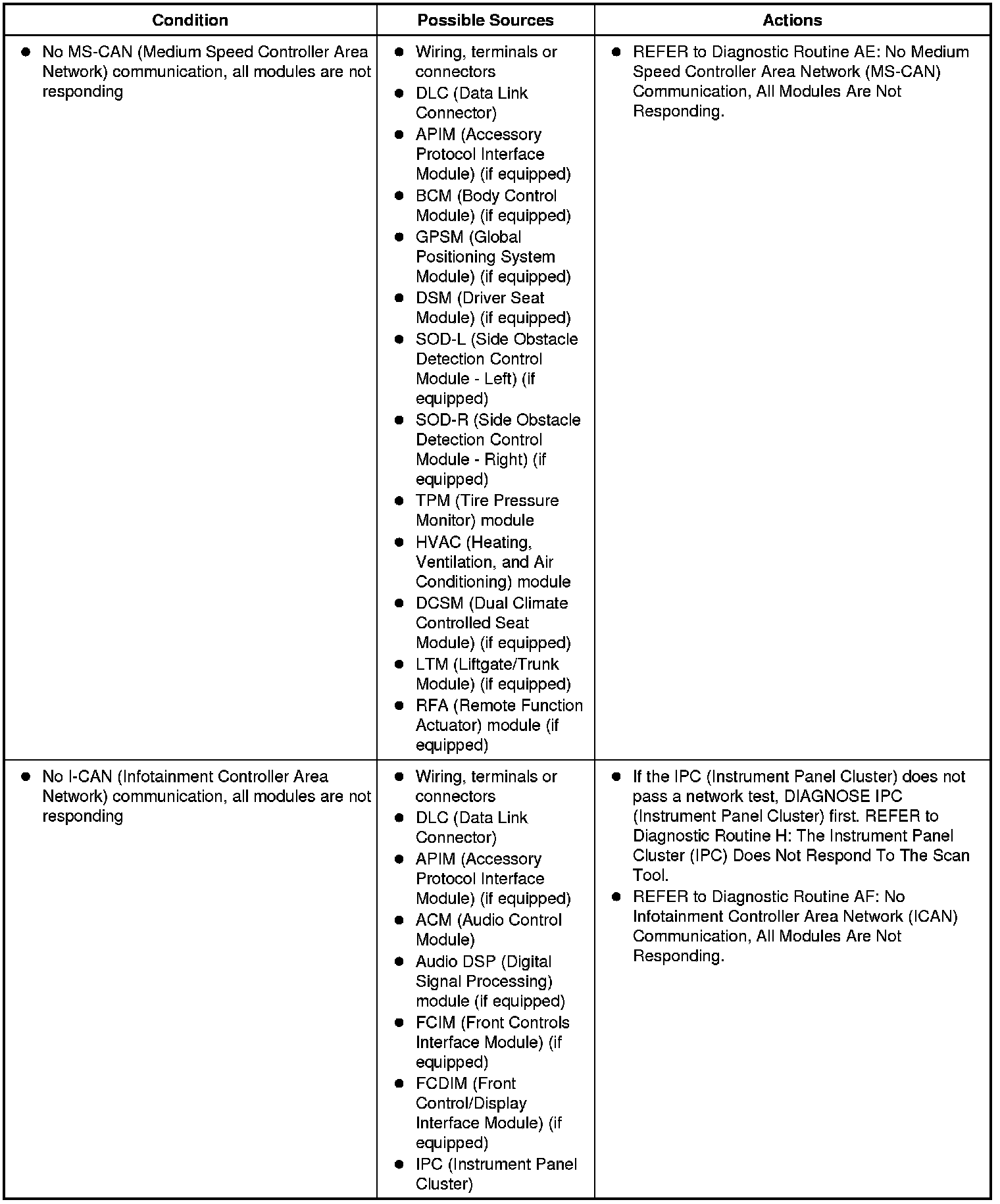

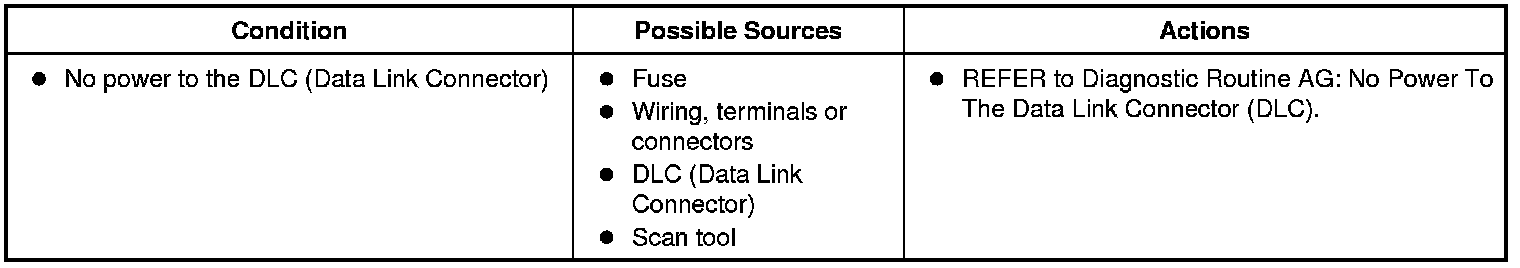

Symptom Chart: Communication Network

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Fundamentals and Basics for information regarding Ford-specific diagnostic practices.

Symptom Chart
