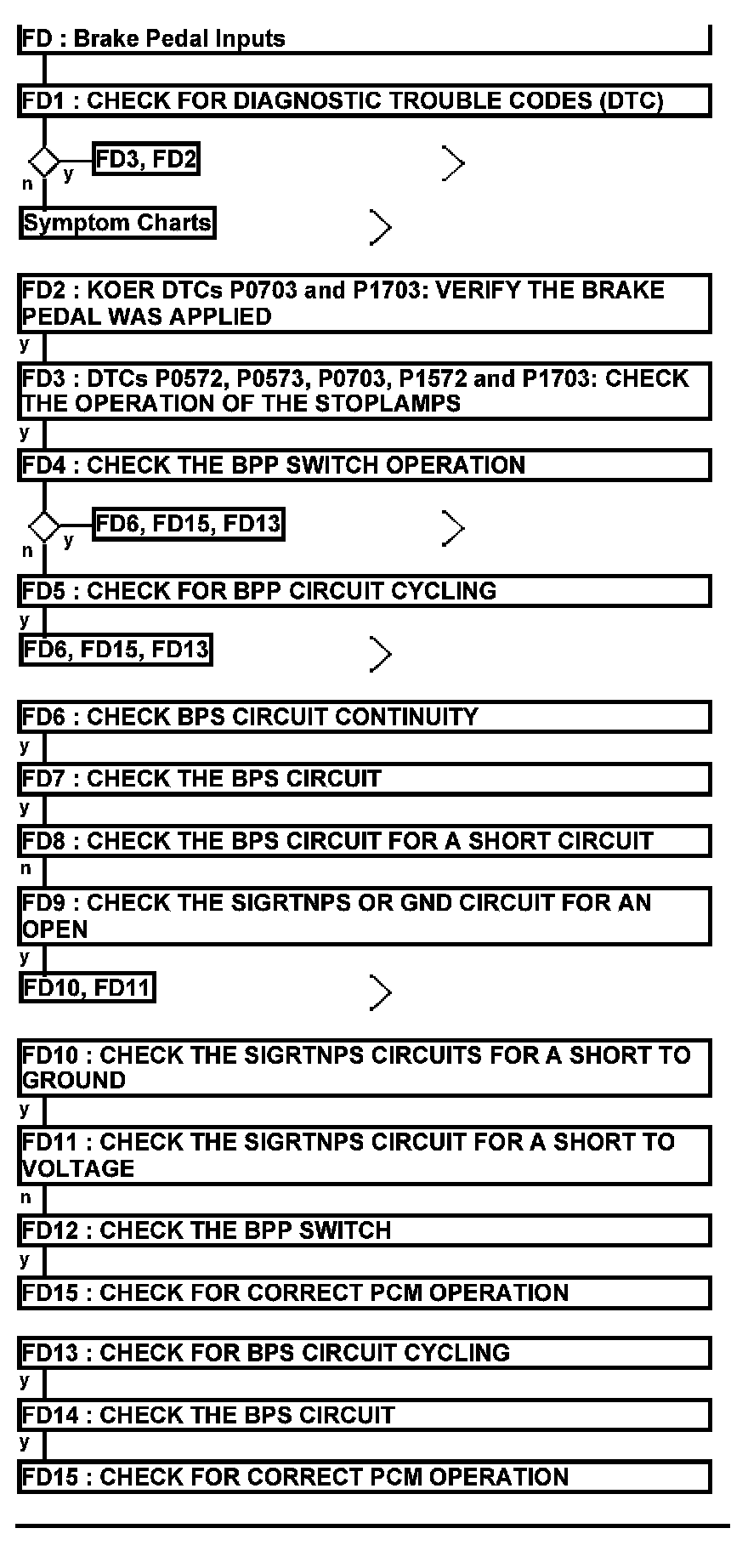

Test FD: Brake Pedal Inputs
Brake Pedal Inputs
Brake Pedal Position (BPP) Switch Connector
Harness Side

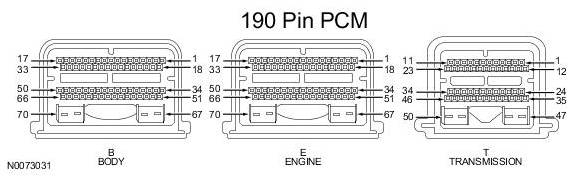

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
Brake Pedal Inputs
Brake Pedal Position (BPP) Switch Connector
Harness Side
Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
