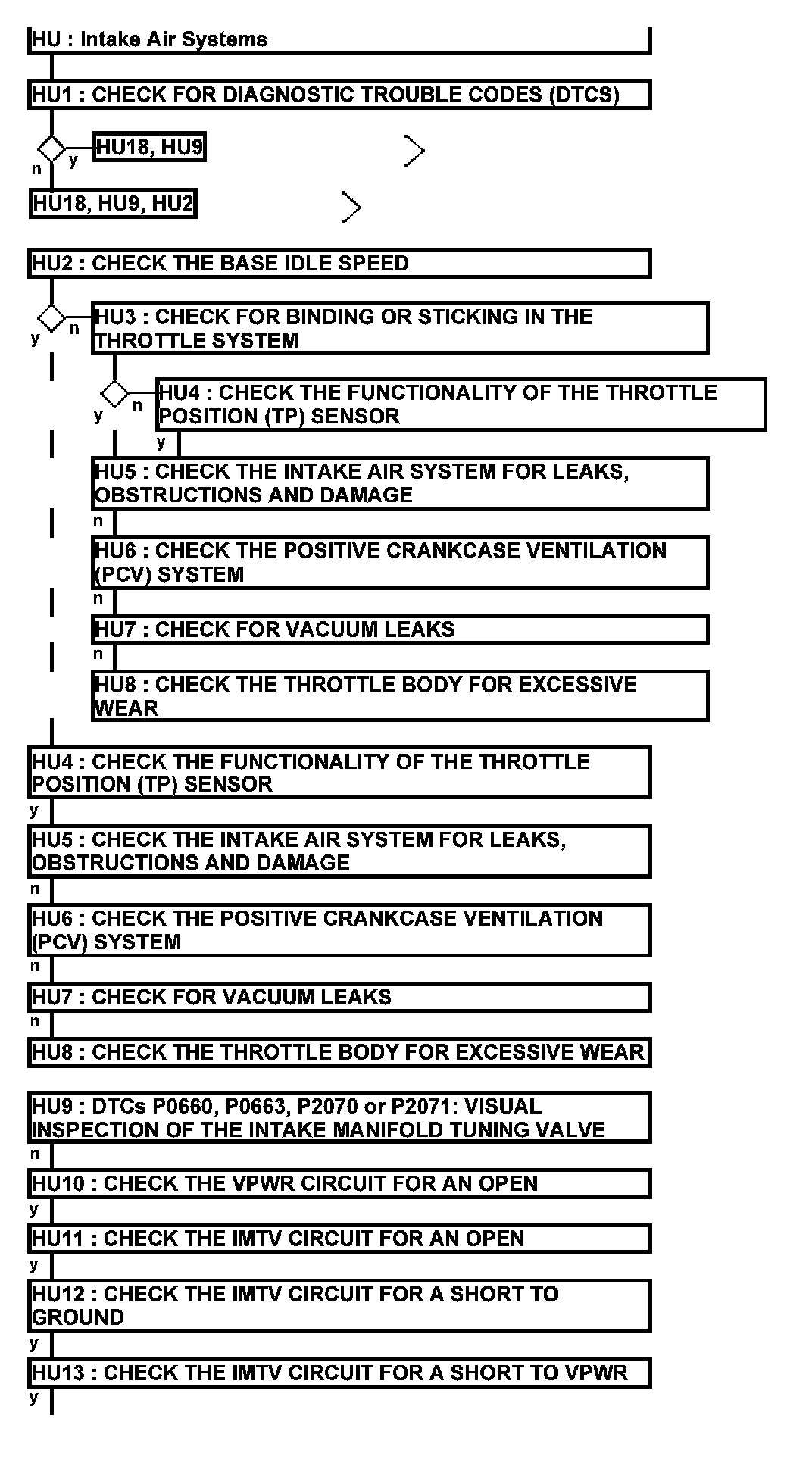

Test HU: Intake Air Systems
Intake Air Systems

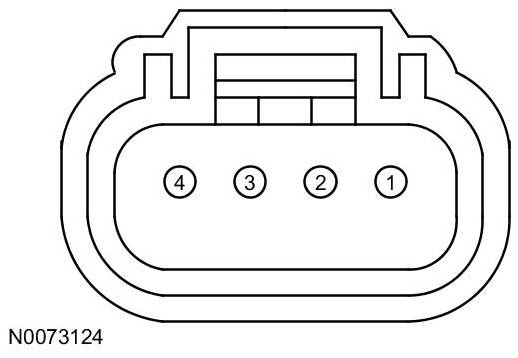

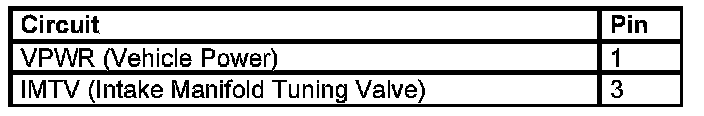

Intake Manifold Tuning Valve (IMTV) Actuator Connector
Harness Side

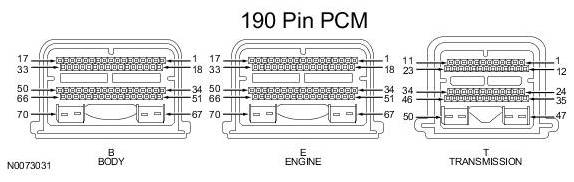

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
Intake Air Systems
Intake Manifold Tuning Valve (IMTV) Actuator Connector
Harness Side
Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
