Fluid Pan, A/T

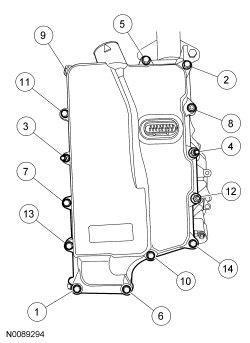

Tighten the main control cover bolts in the following sequence.
Tighten to 12 Nm (106 lb-in).
