Exhaust System

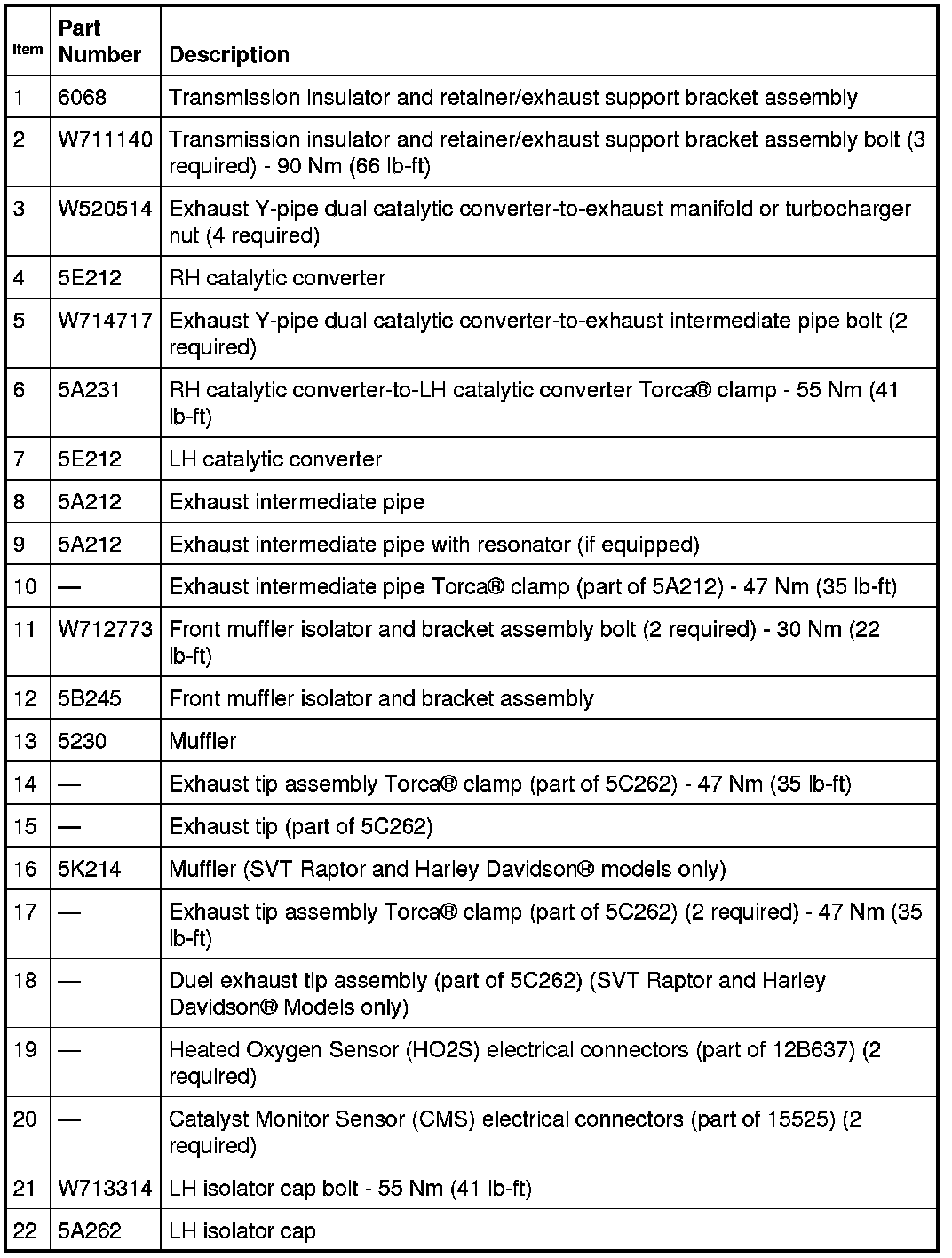

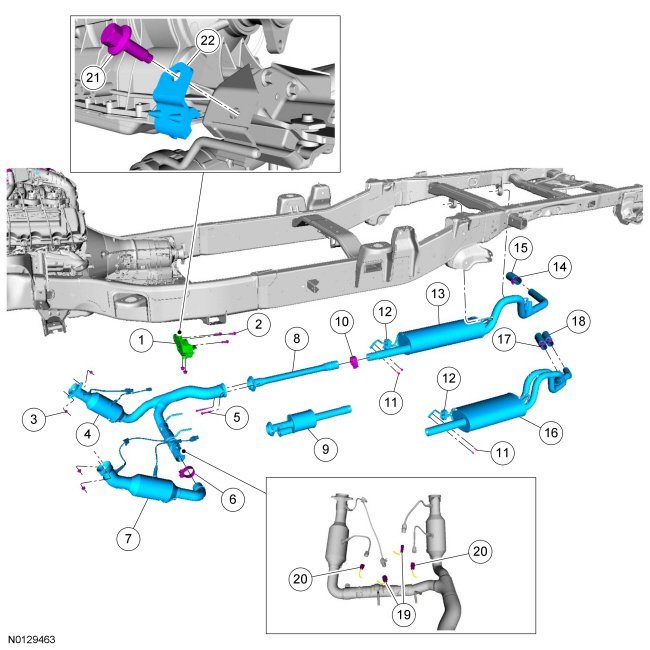

Exhaust System - Exploded View

NOTE: 2-Wheel Drive (2WD) shown, Four-Wheel Drive (4WD) similar.

NOTE: Exhaust system may vary by engine and wheelbase.

NOTE: Vehicle body removed from art for clarity.










1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
