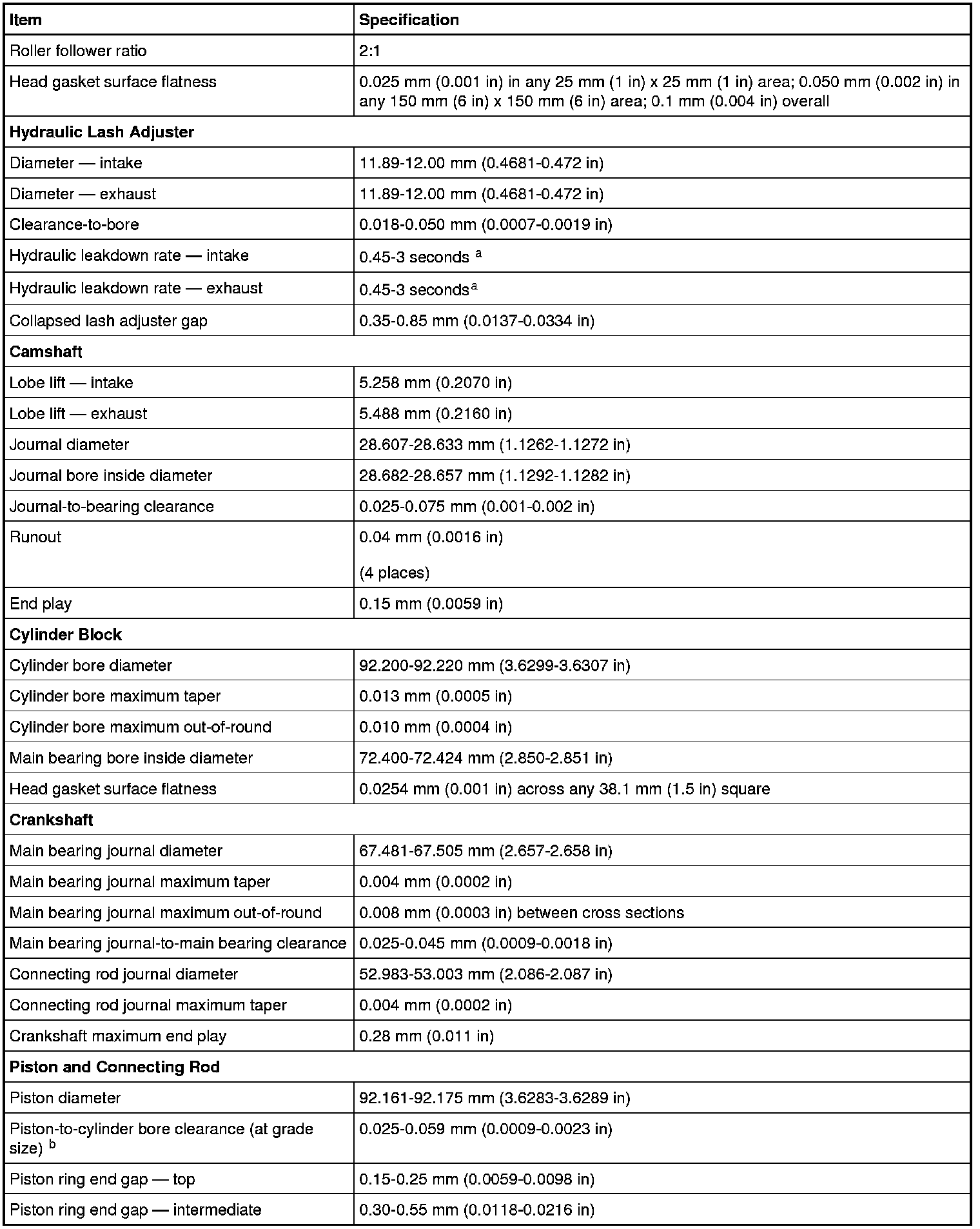

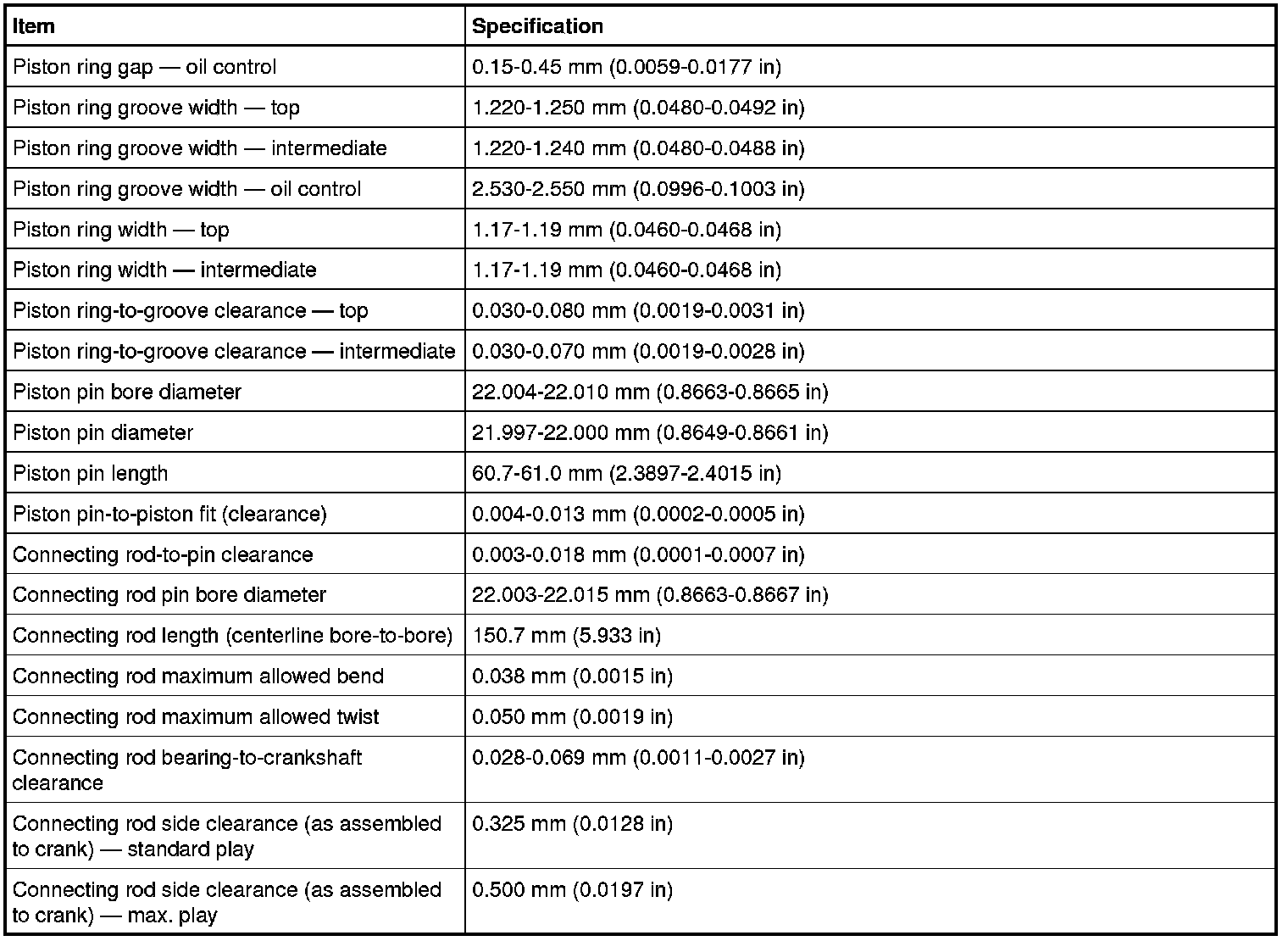

Connecting Rod, Engine














a Time required for the plunger to leak down 1.6 mm of travel with 222 N force and leakdown fluid in the lash adjuster.

b Before Grafal coating.
