Home
>>
Ford
>>
2012
>>
F 150 2WD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Accessories and Optional Equipment
>>
Communications Control Module
>>
C290D Audio Control Module (ACM)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

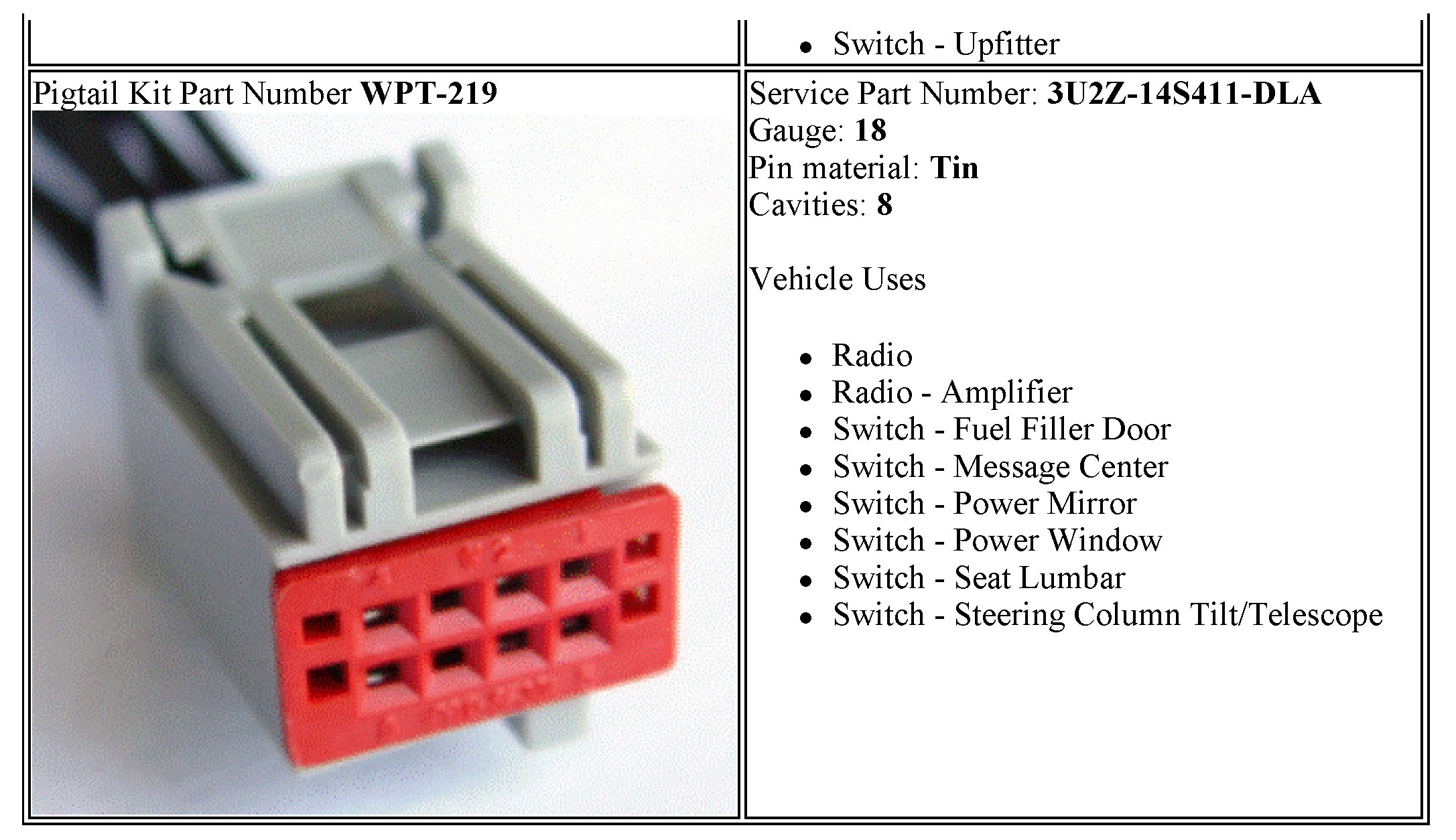

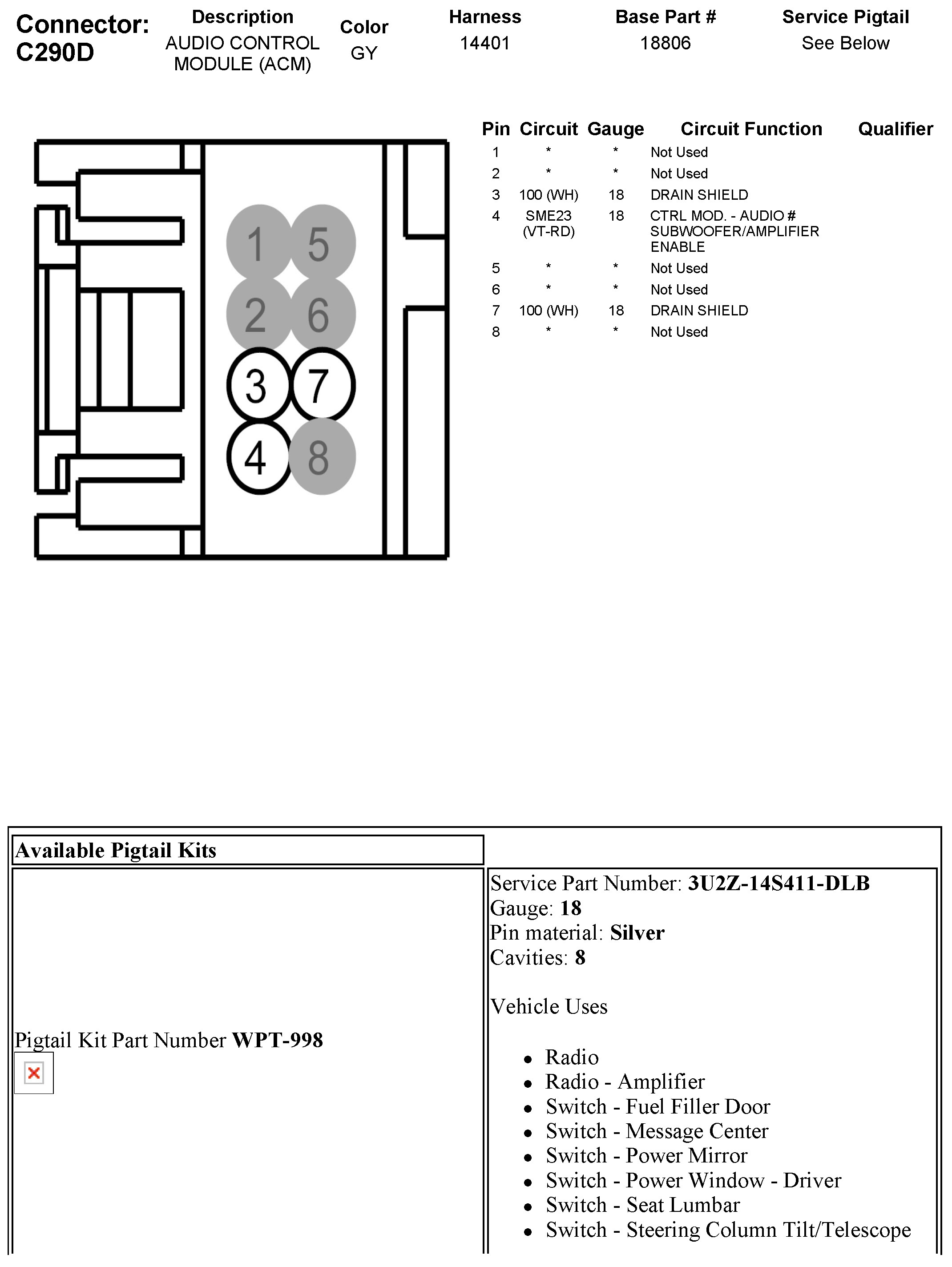

C290D Audio Control Module (ACM)
