Starting System




Specifications

General Specifications





a Initial "in-rush" current draw.

b Continuously running current draw.

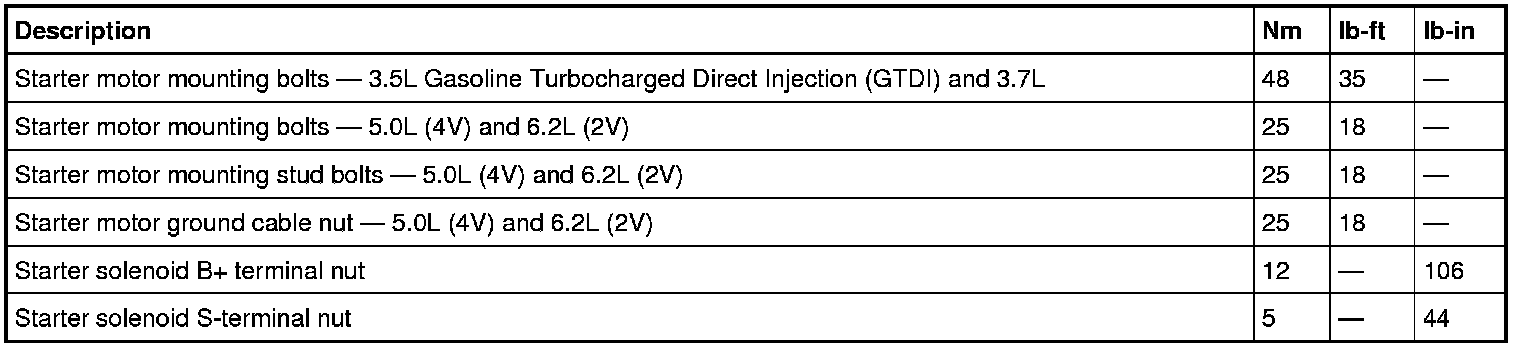

Torque Specifications
