Test HD: Misfire Detection Monitor

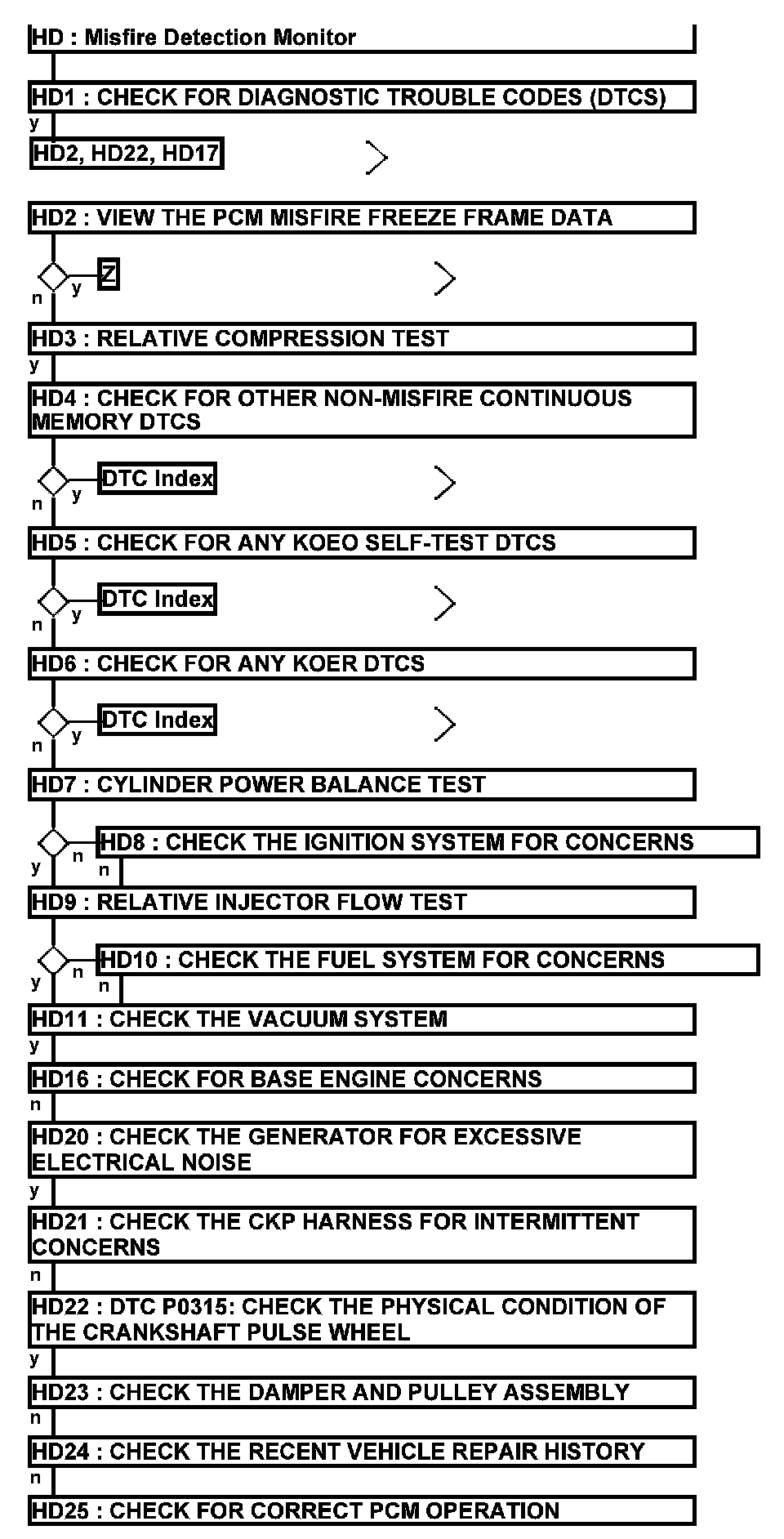

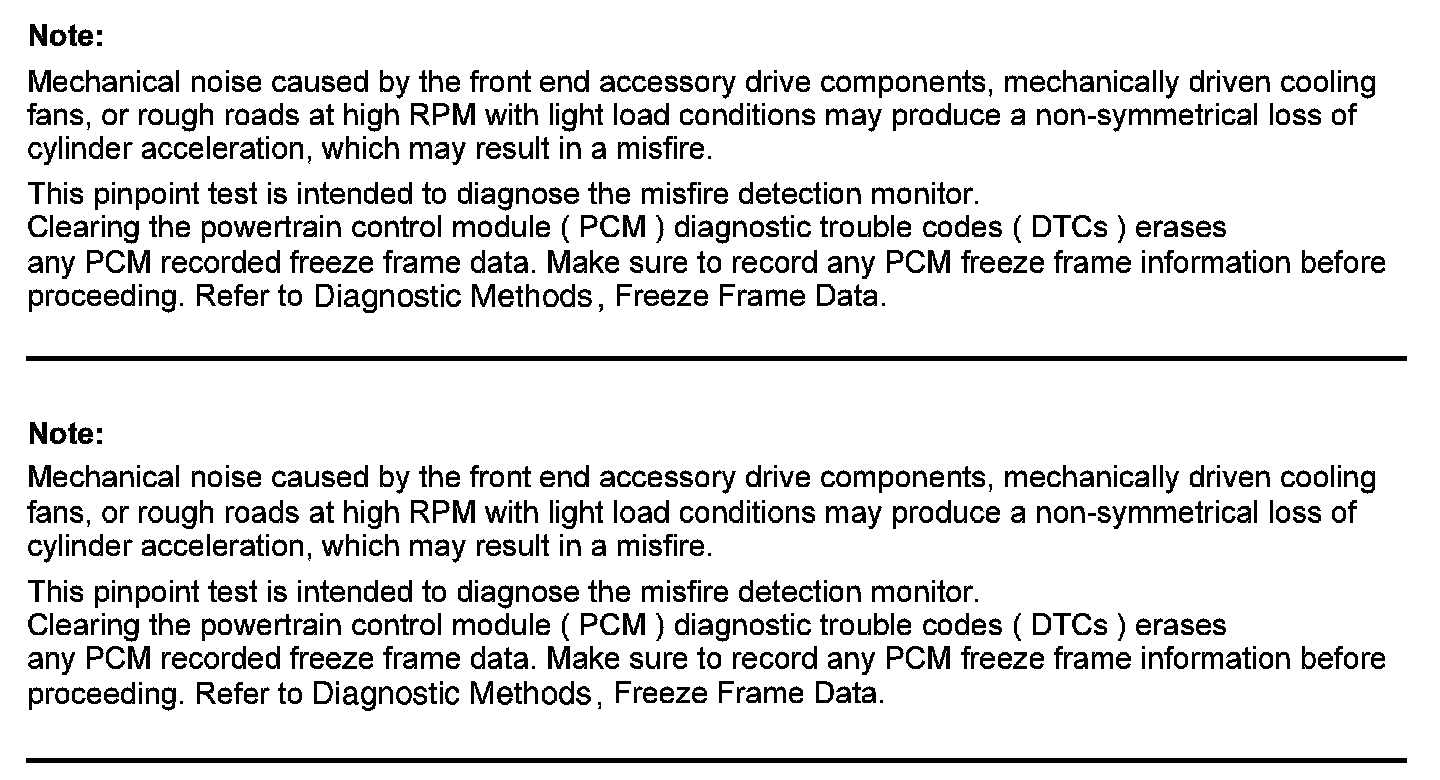

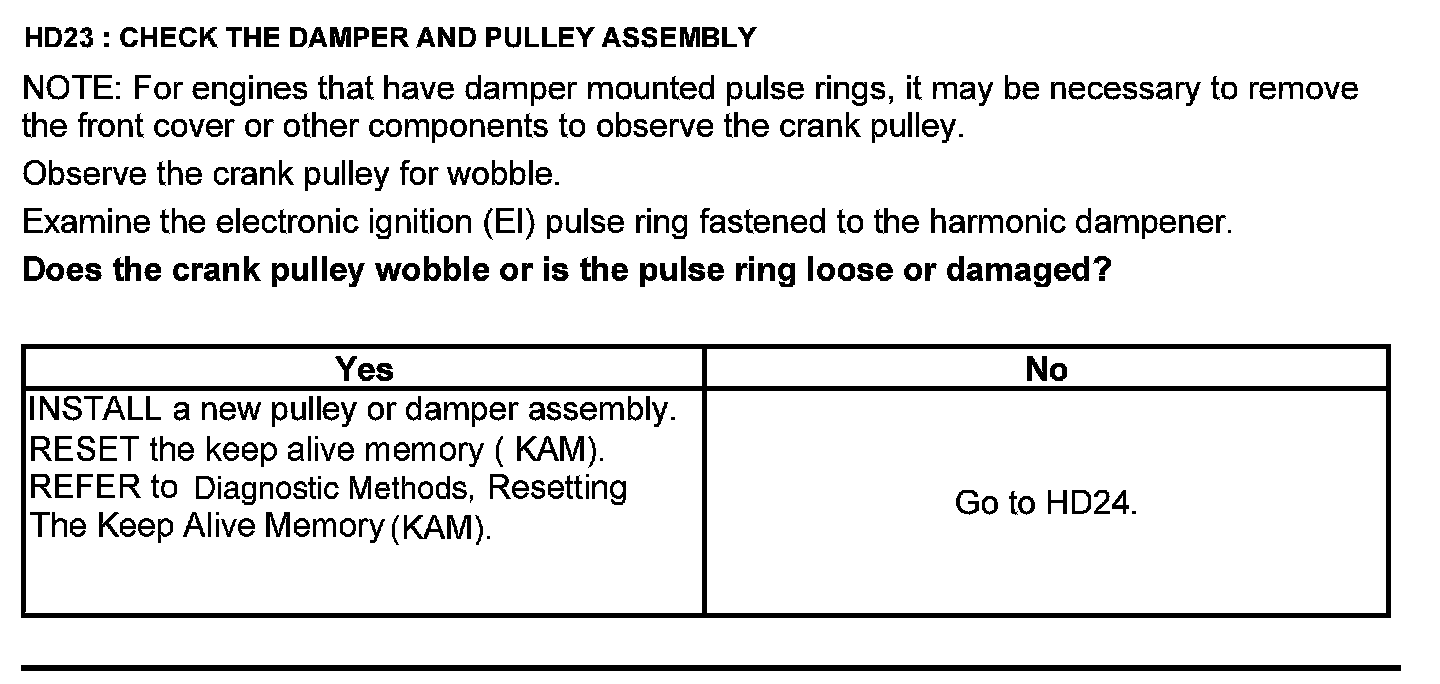

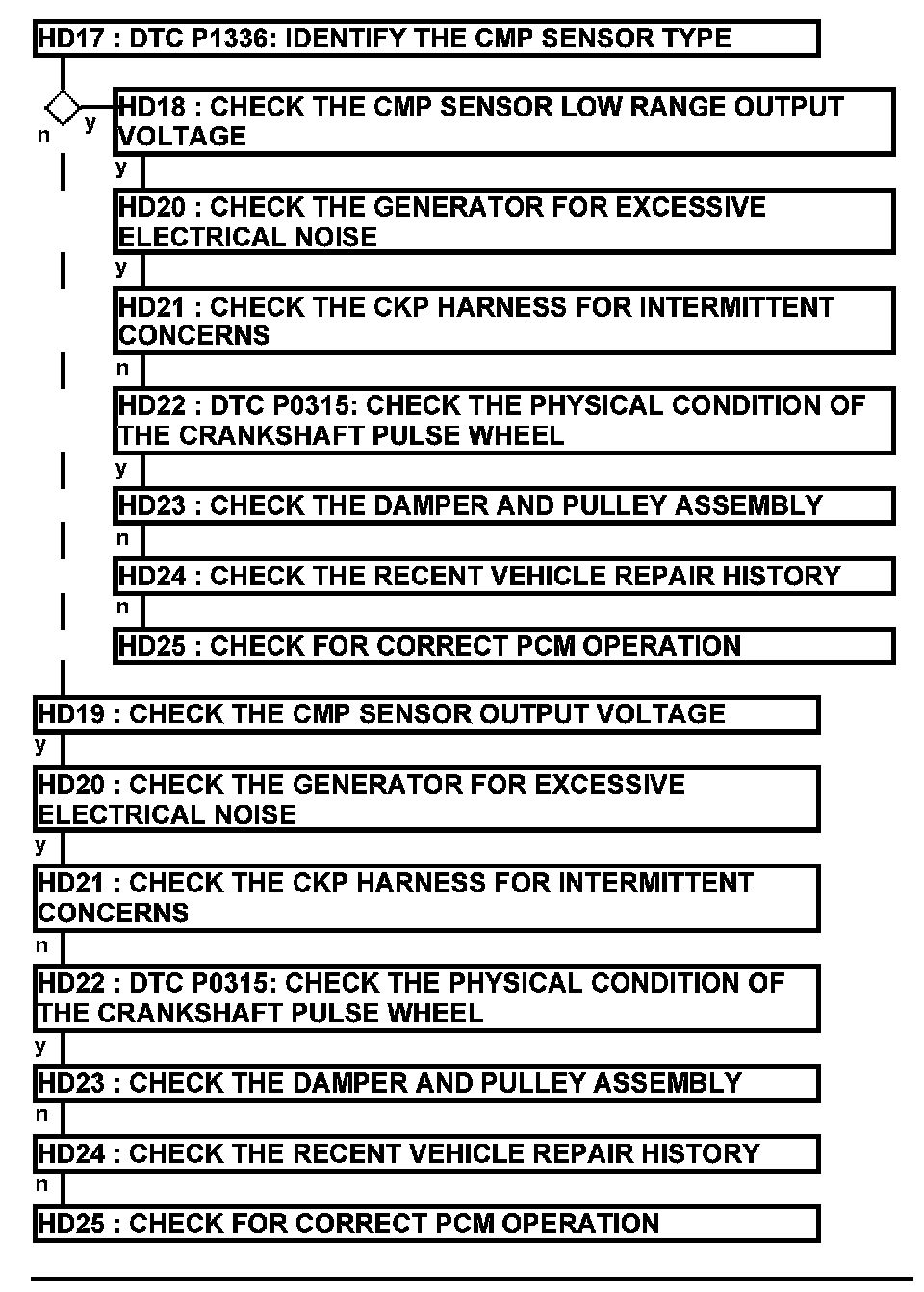

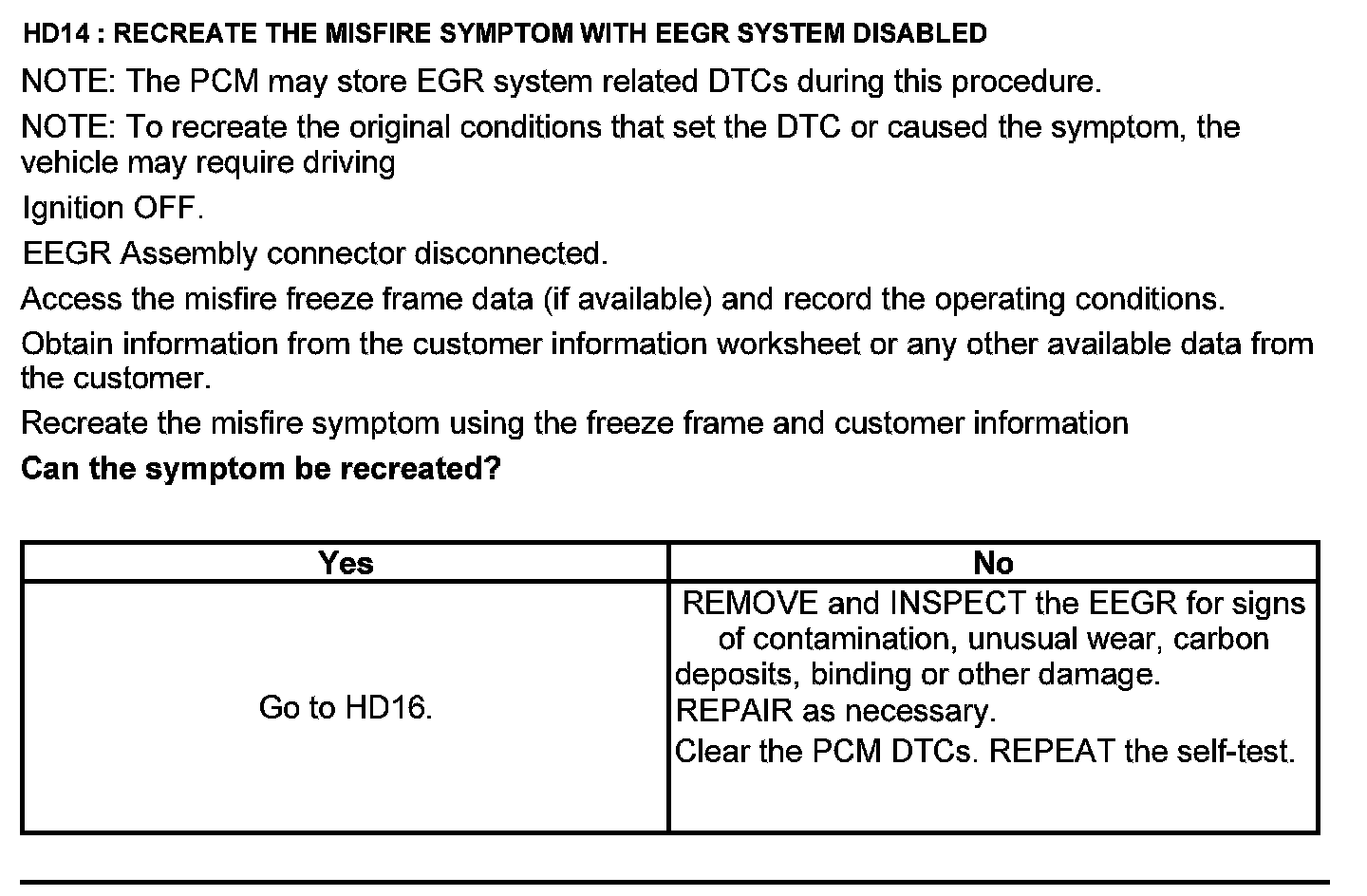

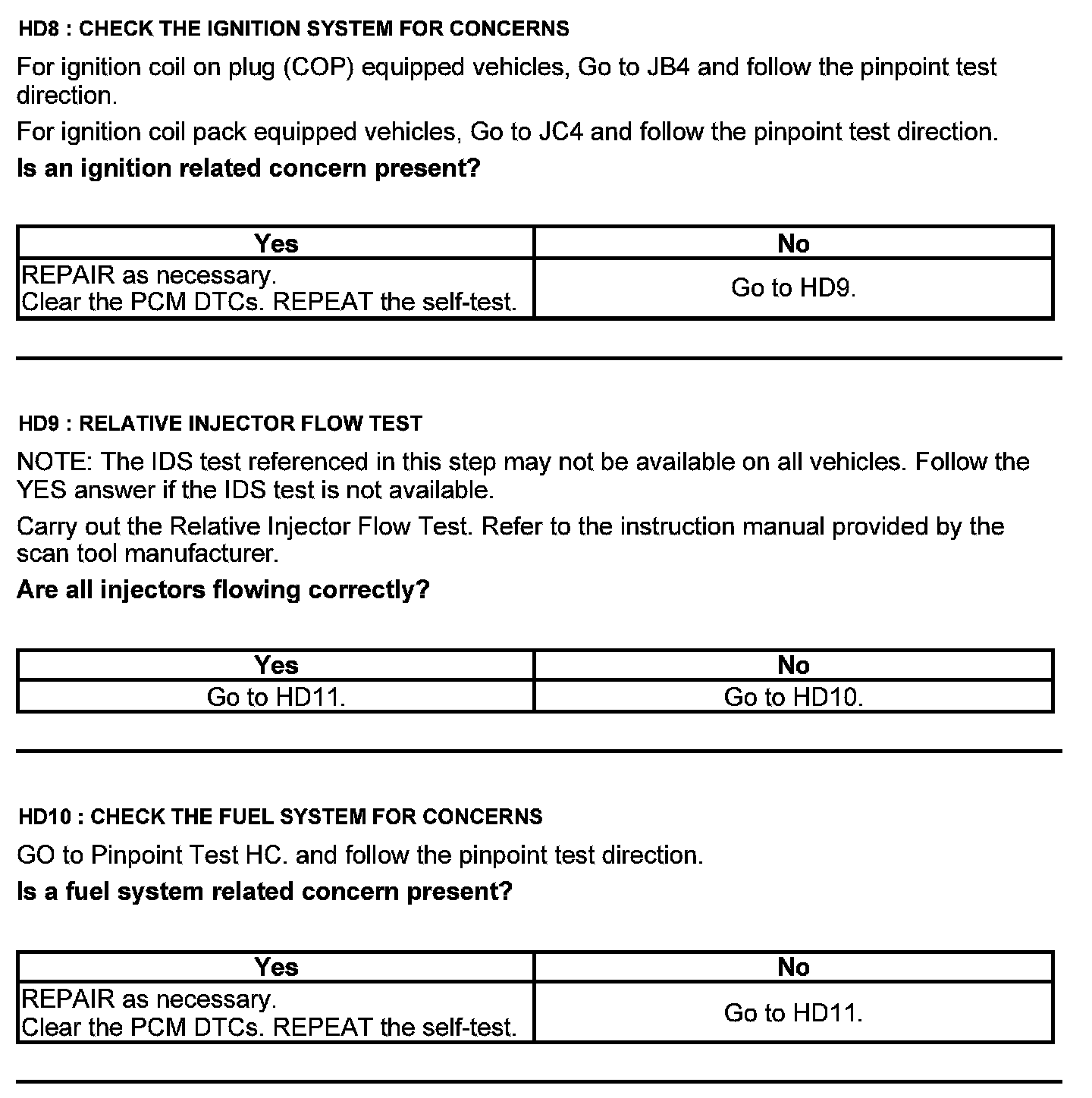

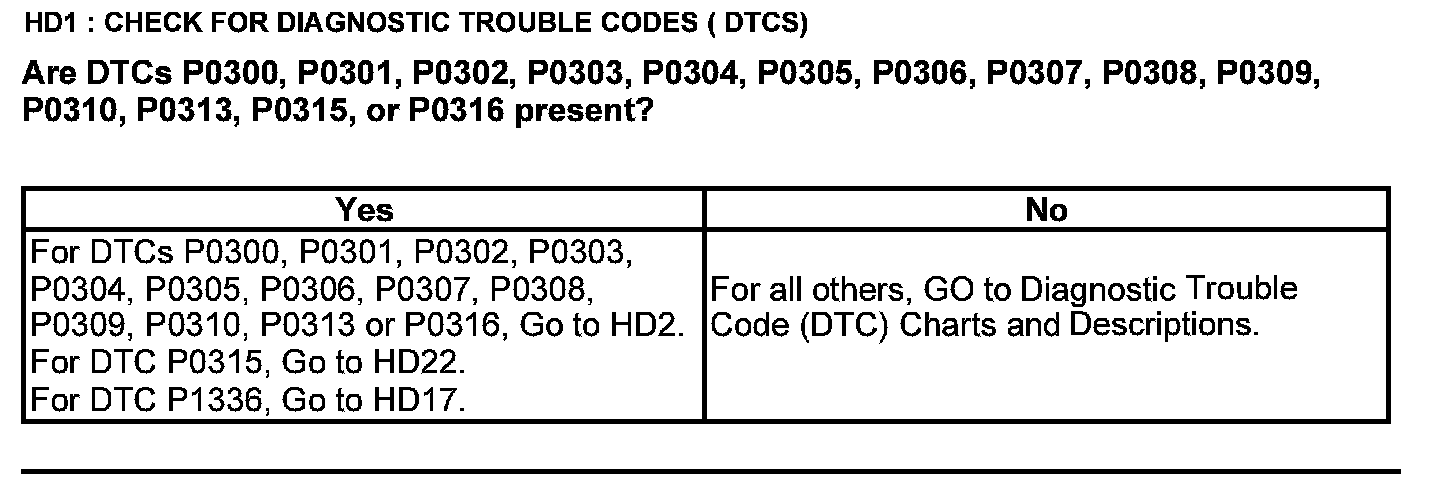

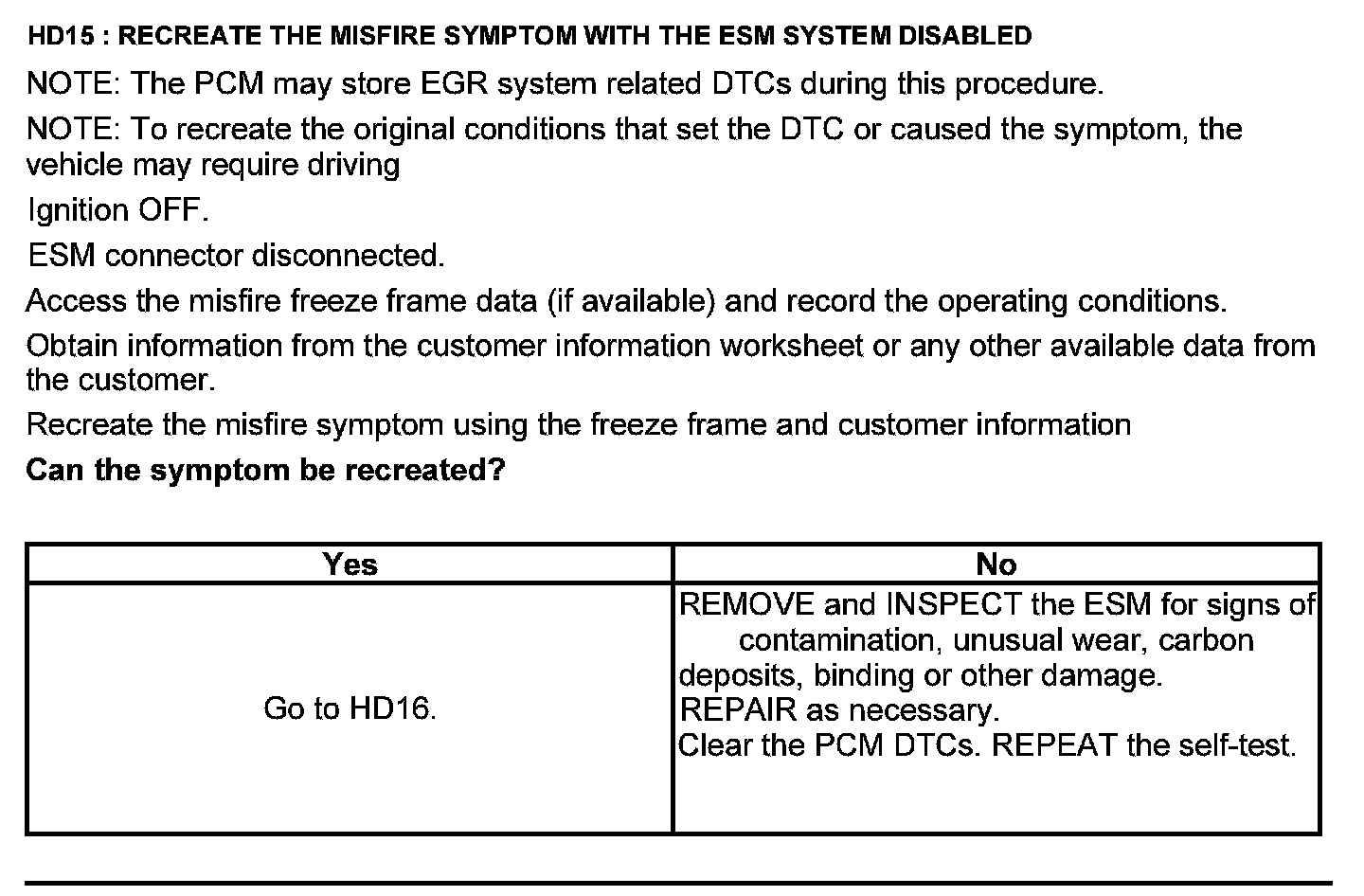

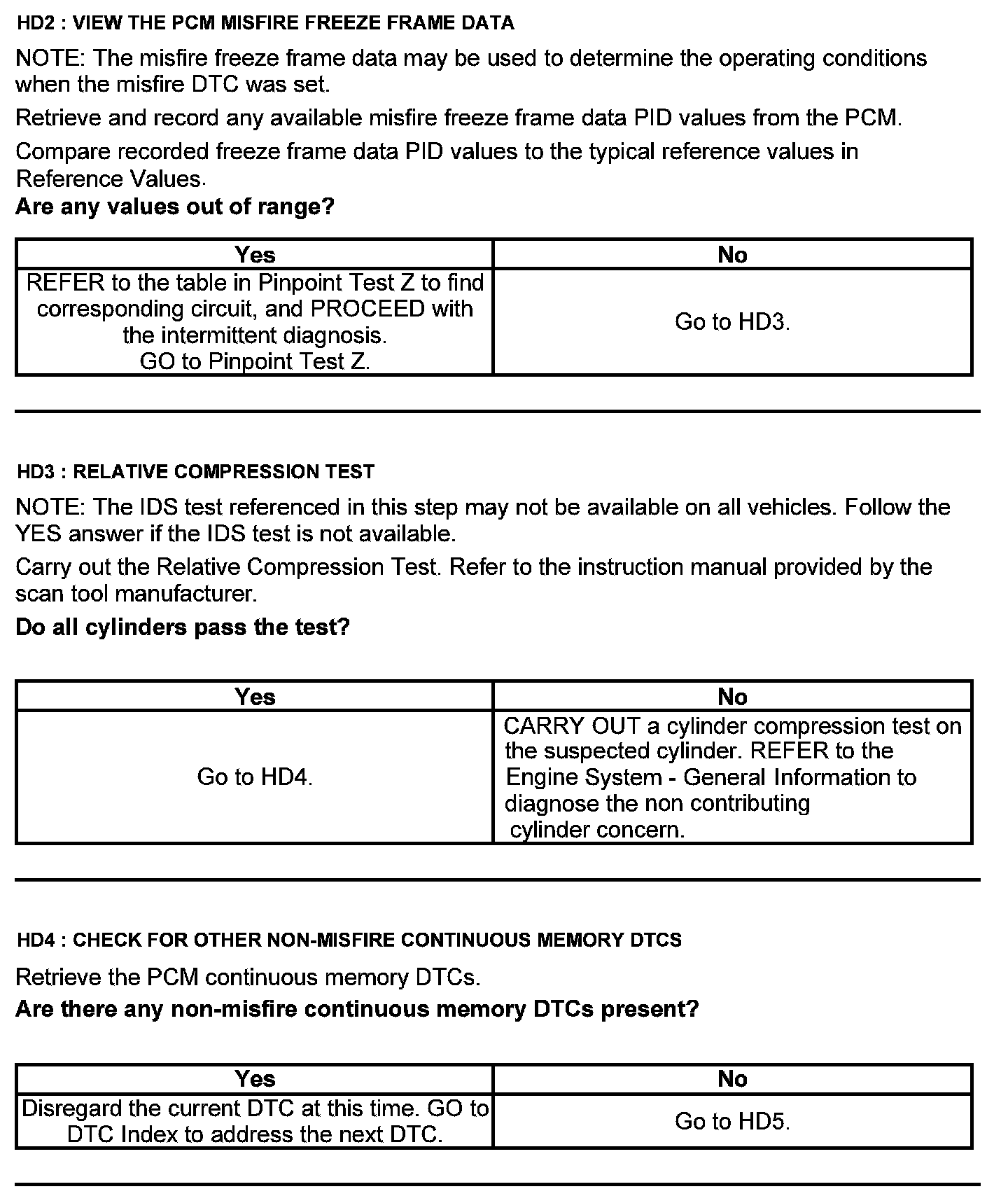

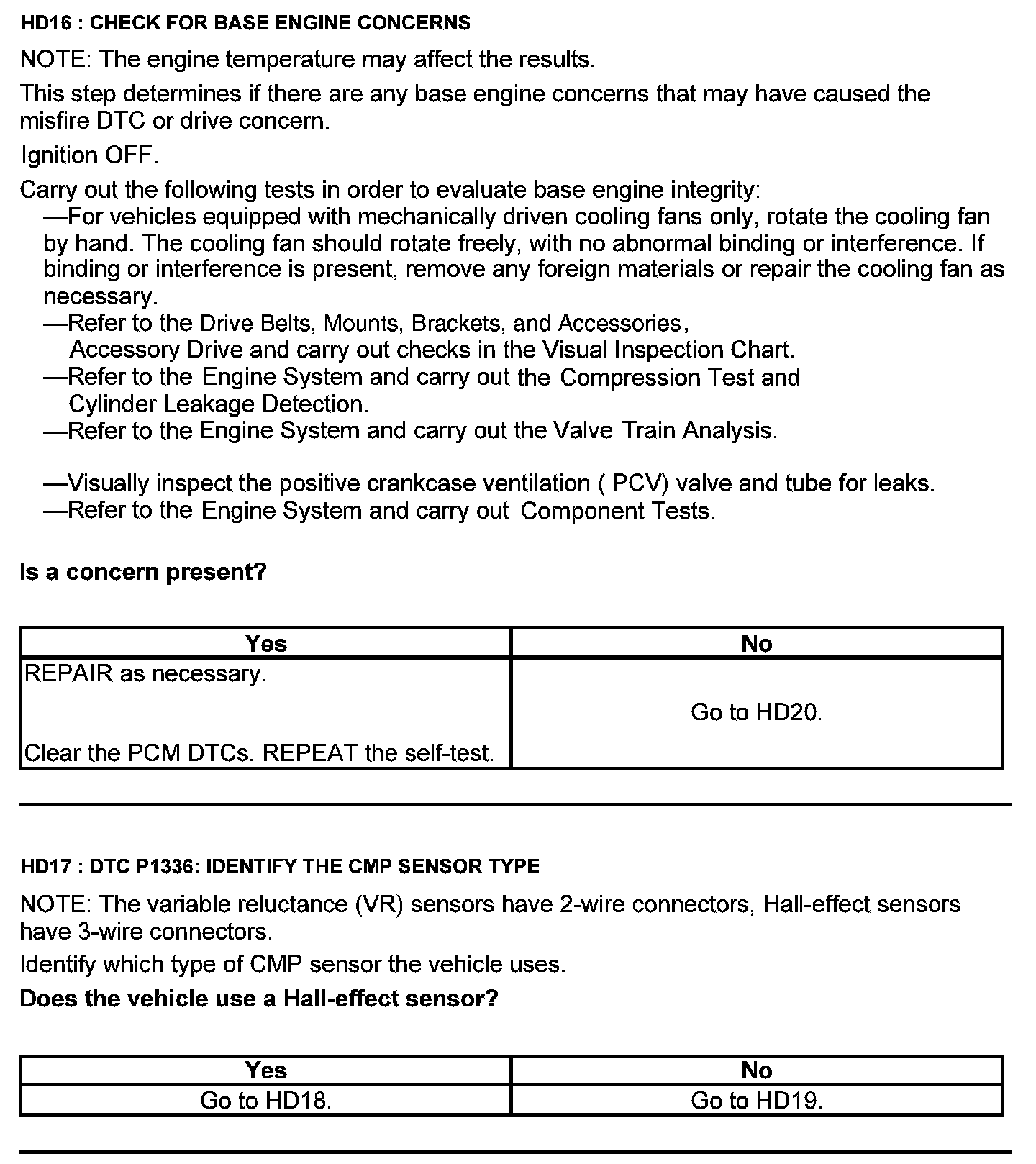

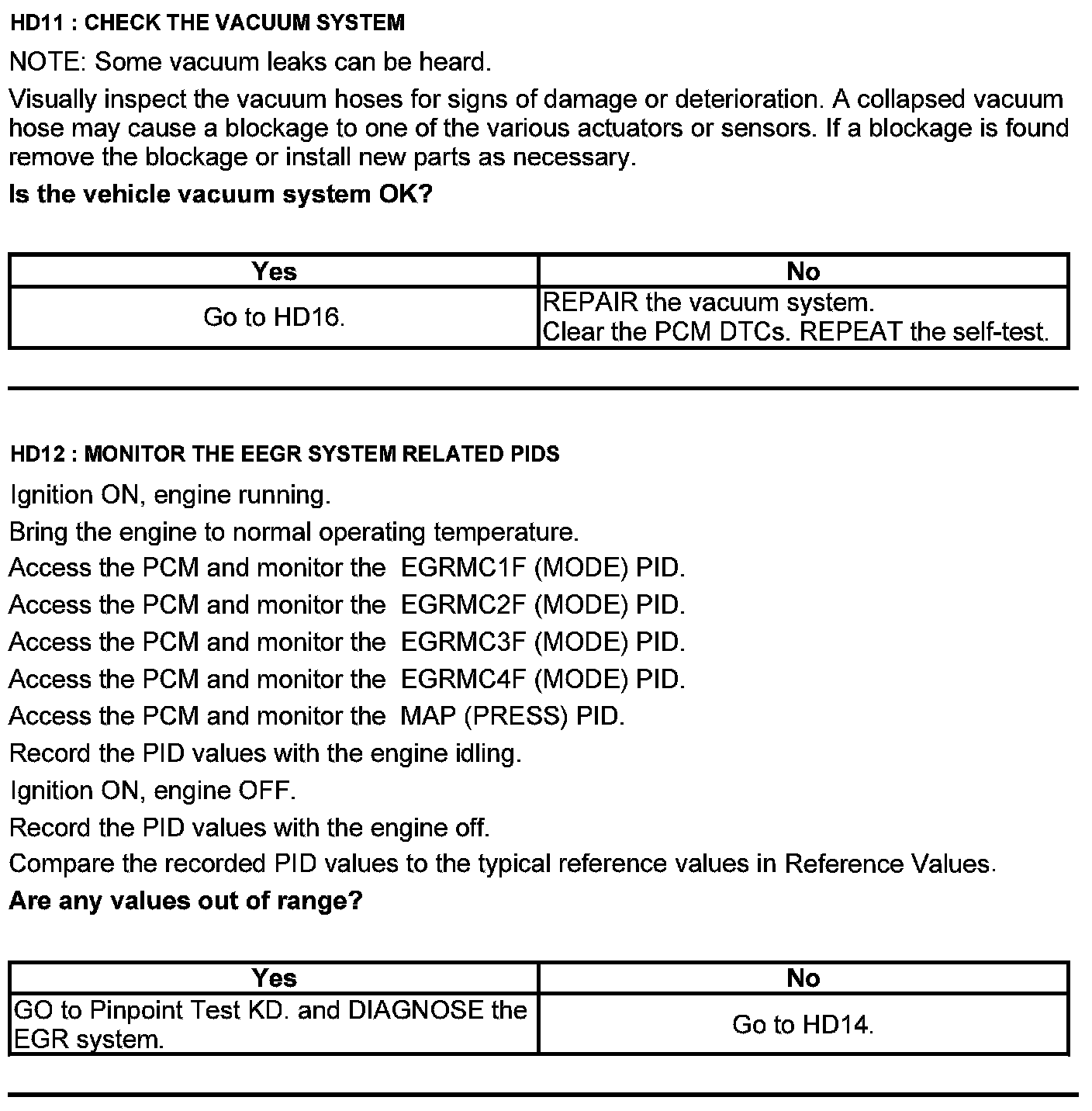

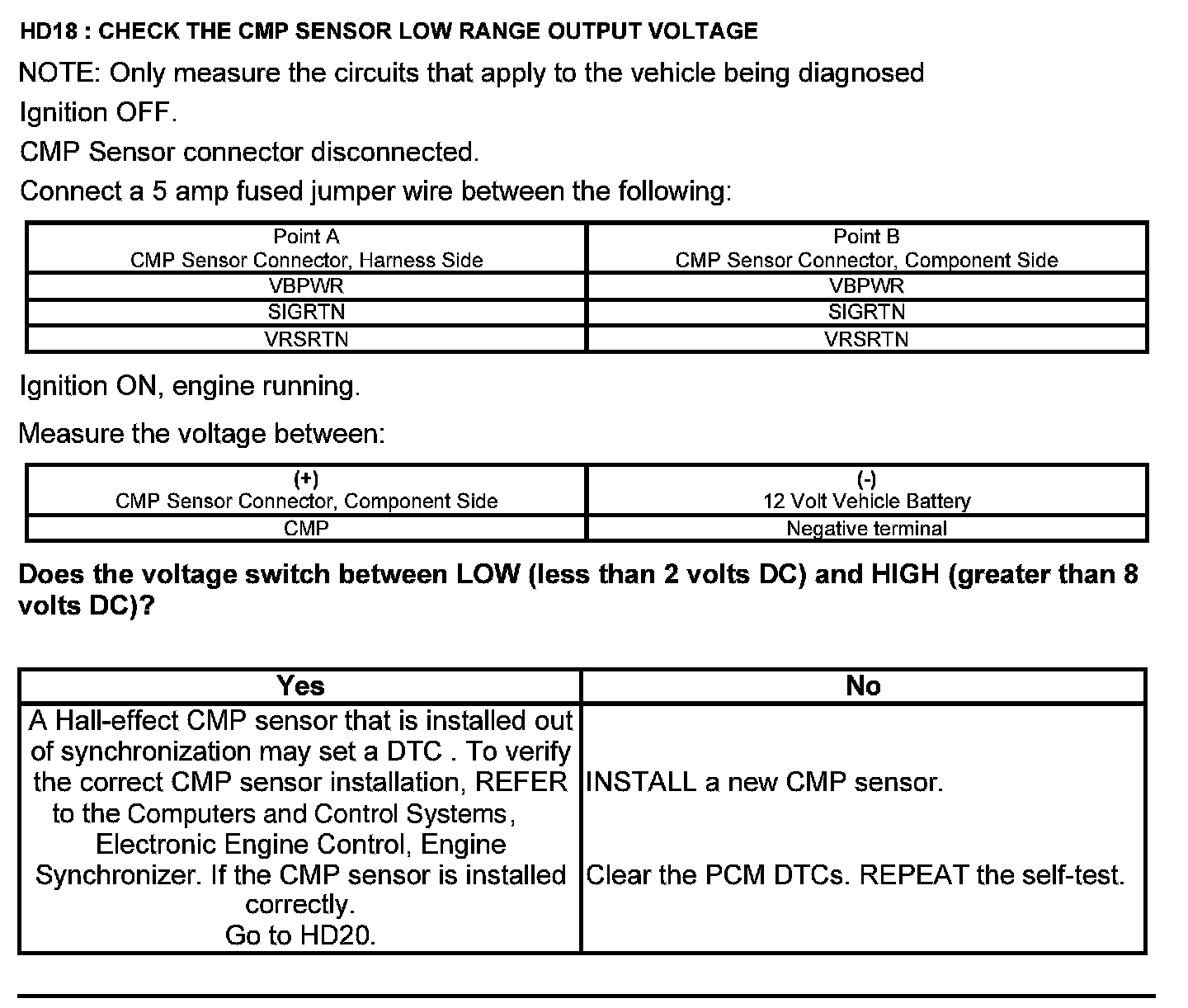

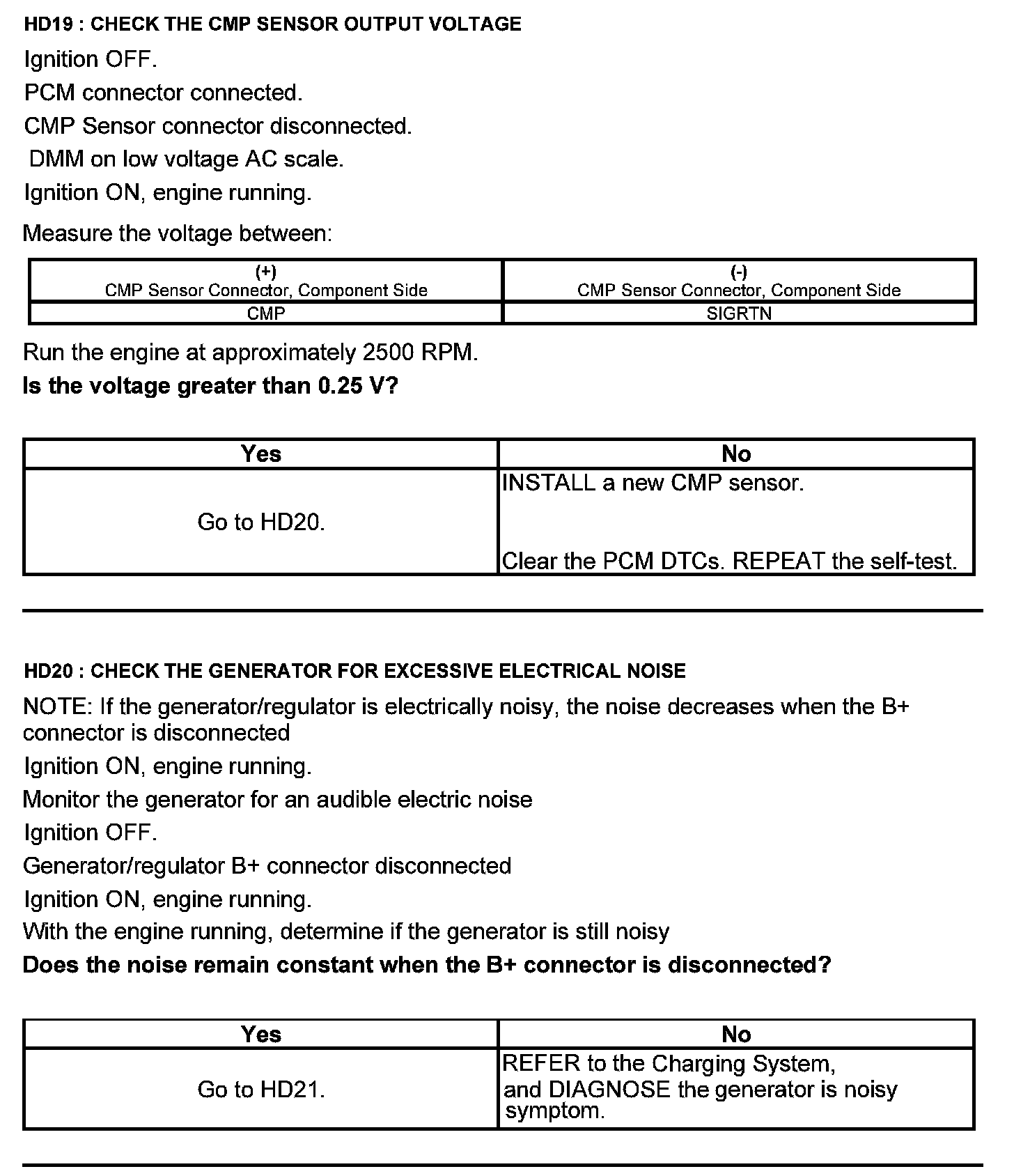

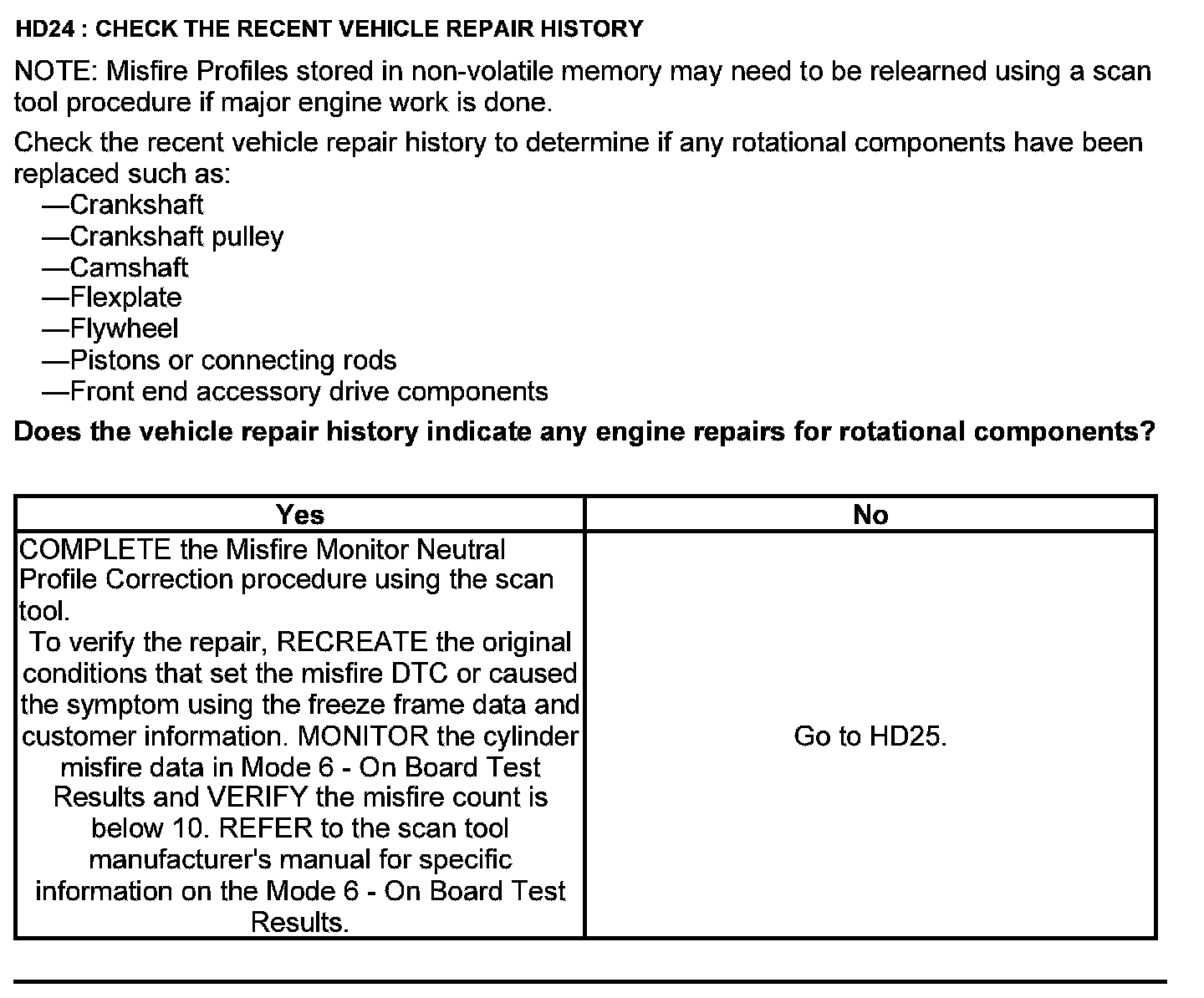

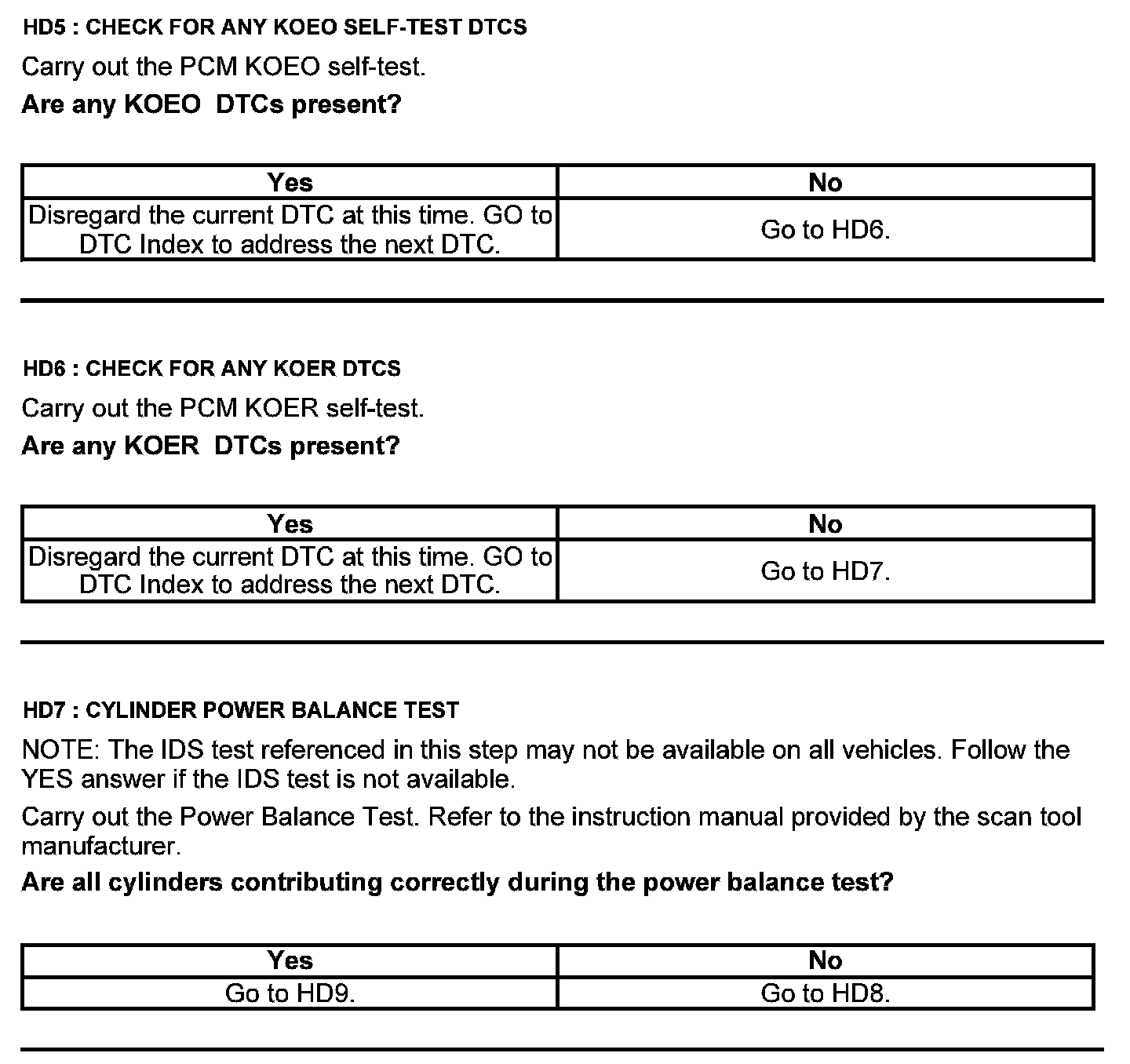

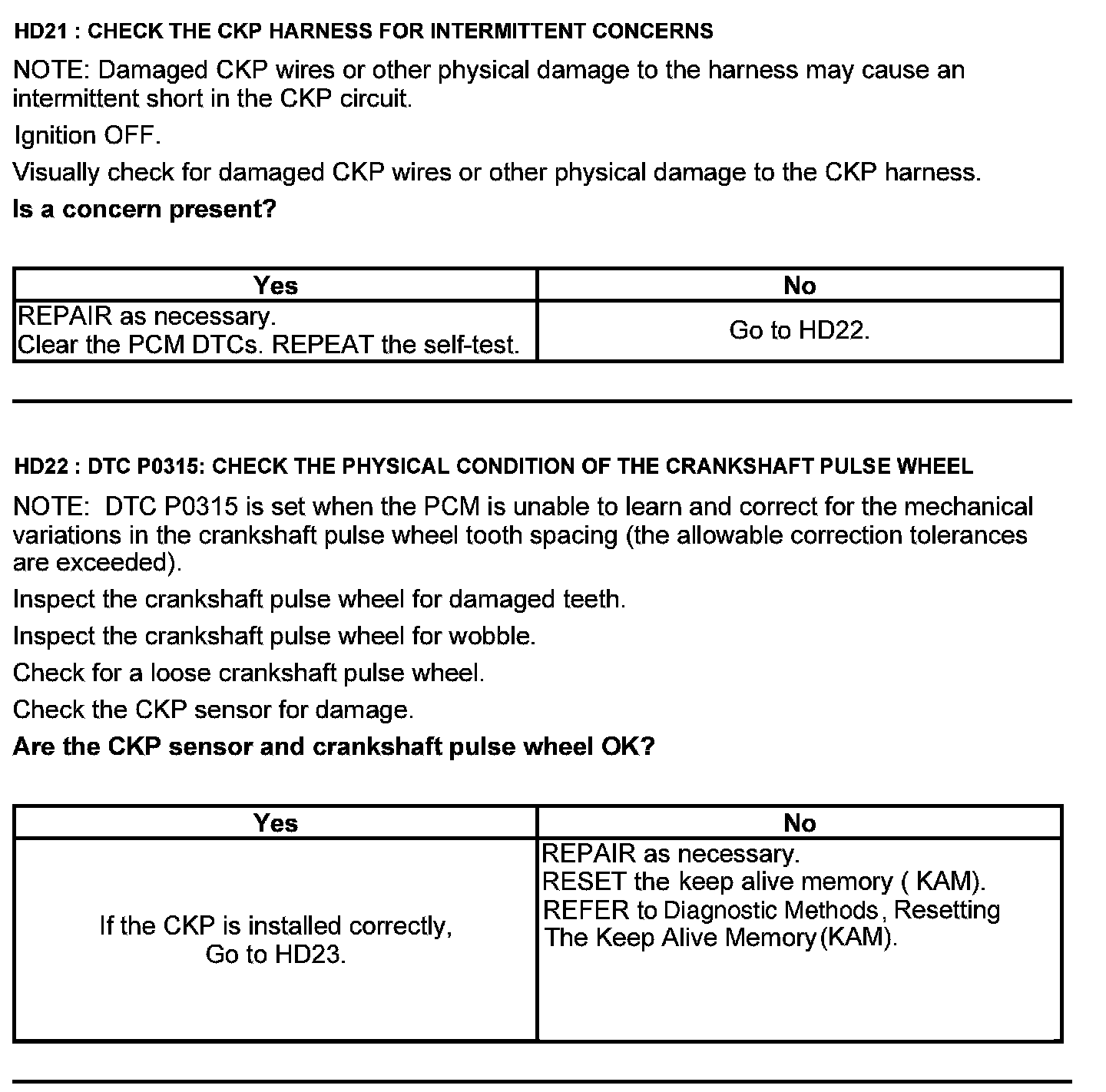

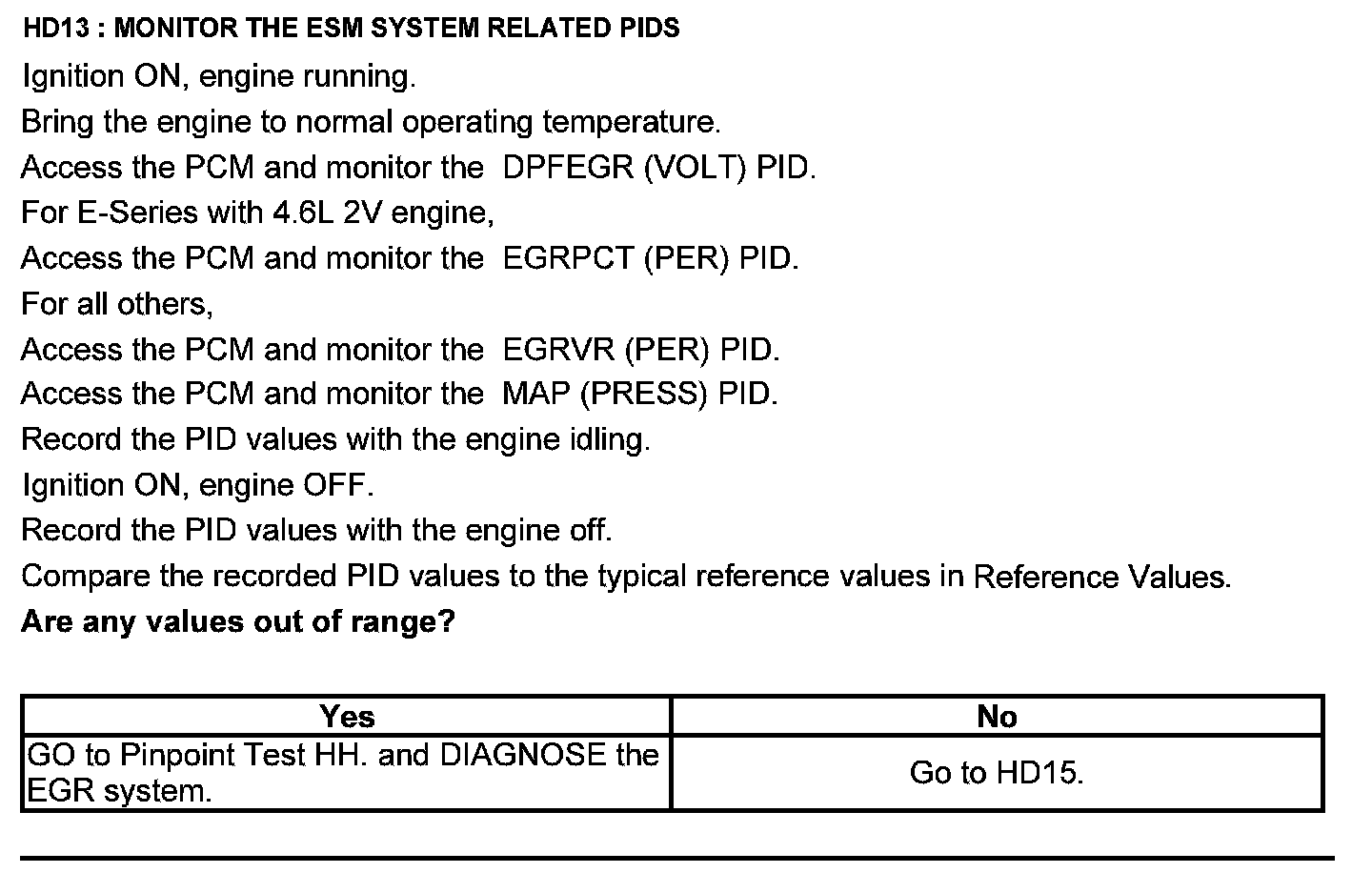

Misfire Detection Monitor

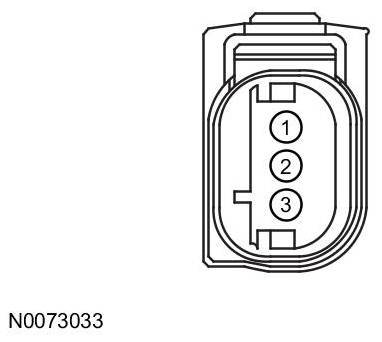

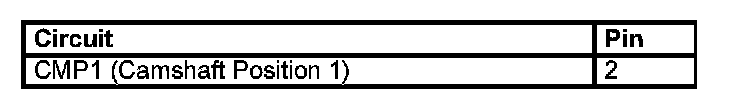

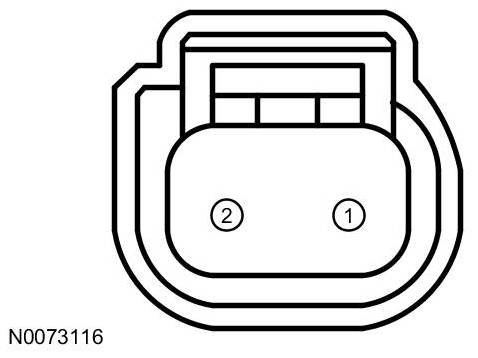

Camshaft Position 1 (CMP1) Sensor Connector






Harness Side

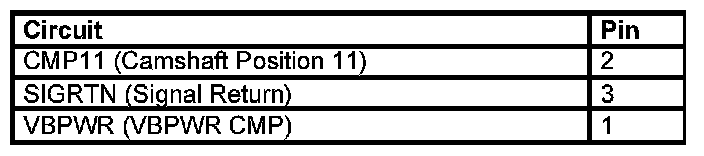

Camshaft Position 11 (CMP11) Sensor Connector





Harness Side

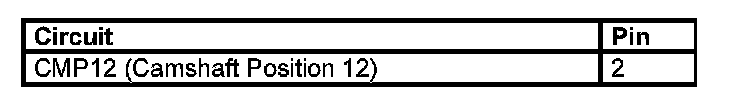

Camshaft Position 12 (CMP12) Sensor Connector





Harness Side

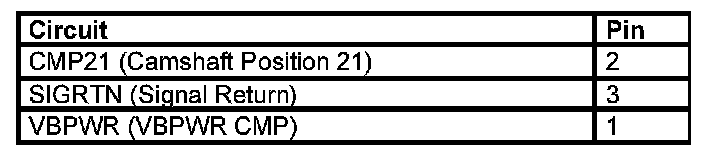

Camshaft Position 21 (CMP21) Sensor Connector





Harness Side

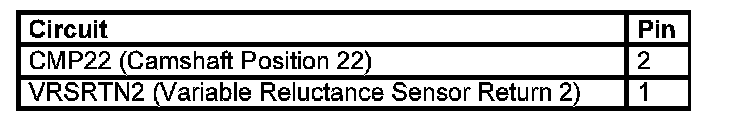

Camshaft Position 22 (CMP22) Sensor Connector





Harness Side

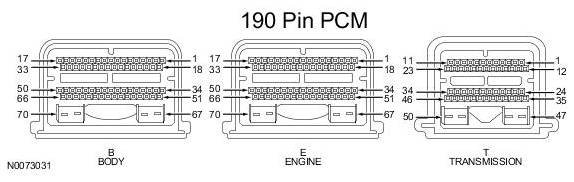

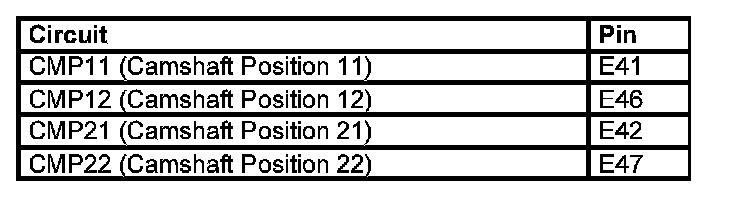

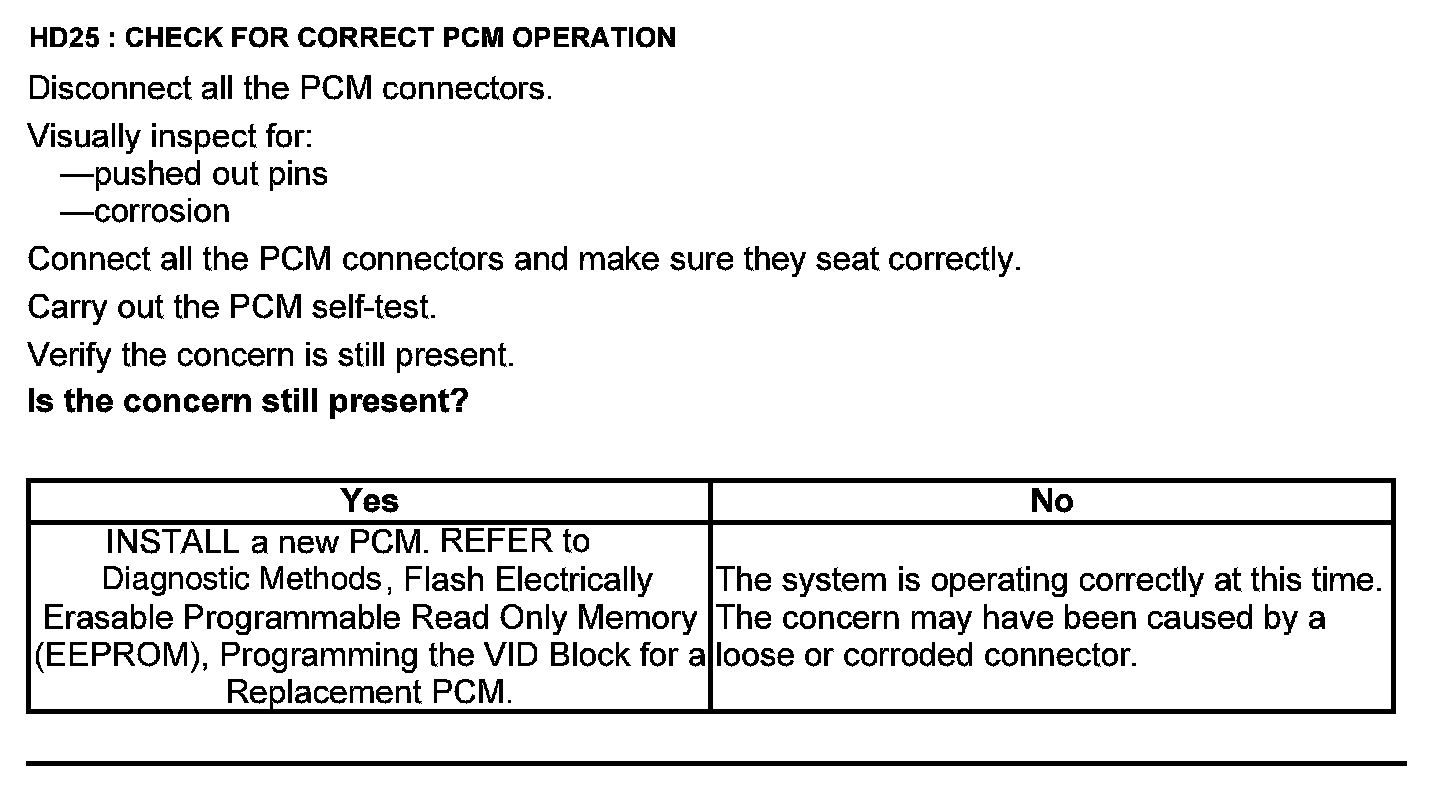

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
