Audio Control Module (ACM)

Audio Control Module (ACM)









Removal and Installation

1. Remove the instrument panel upper finish panel. For additional information, refer to Instrument Panel and Console Service and Repair.

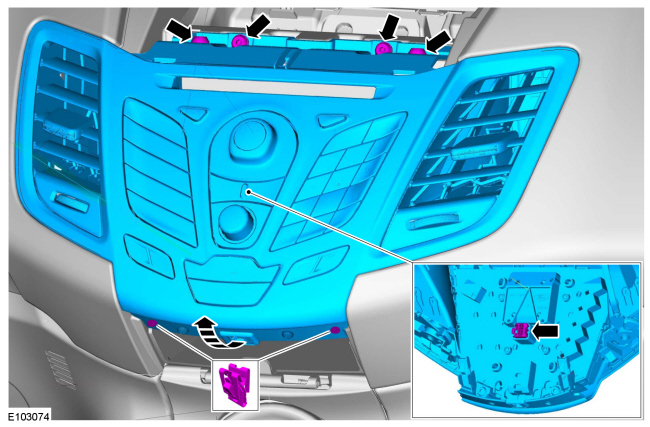

2. Remove the 4 Front Controls Interface Module (FCIM) finish panel screws and rotate upwards from the bottom to release the 3 clips. Remove the Front Controls Interface Module (FCIM) finish panel.
- Disconnect the electrical connector.

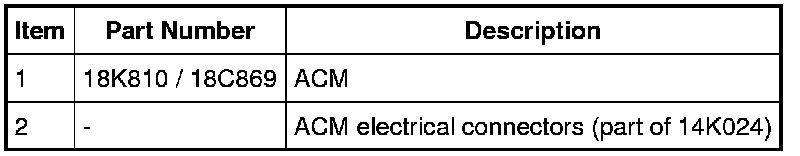

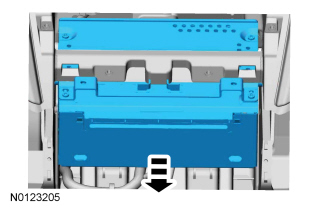

3. Remove the ACM.

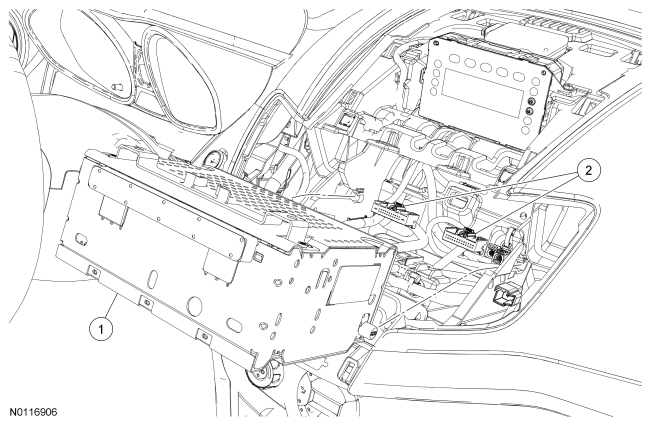

- Disconnect the ACM electrical connectors.





4. To install, reverse the removal procedure.
