Fuel Tank and Filler Pipe - Exploded View




Fuel Tank and Filler Pipe - Exploded View

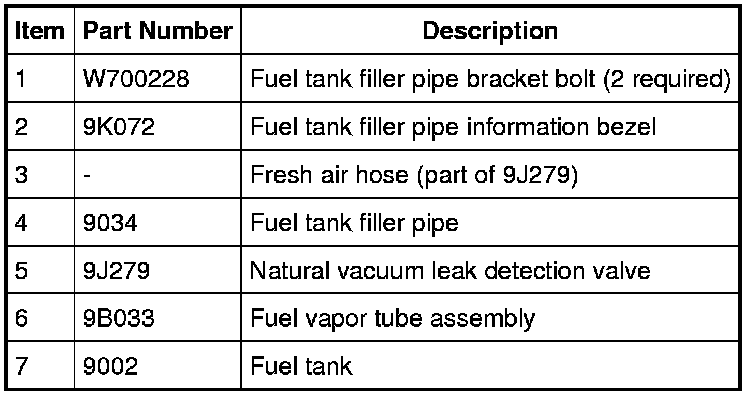

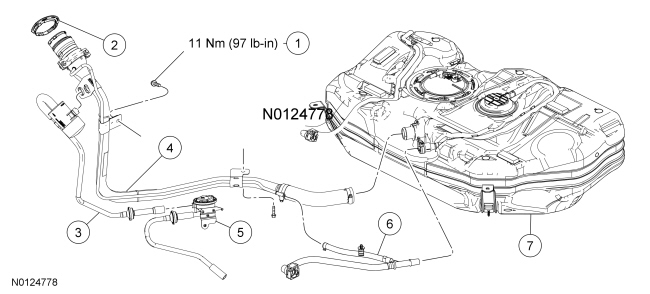

Fuel Tank Filler Pipe Assembly

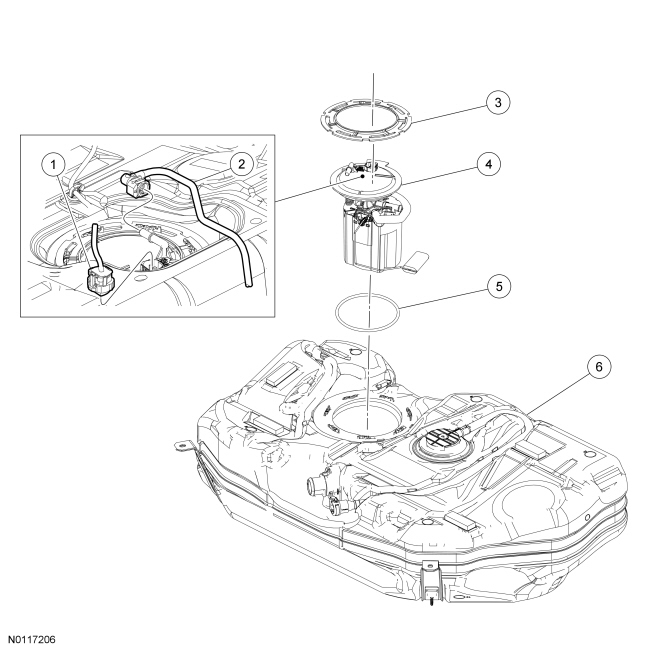

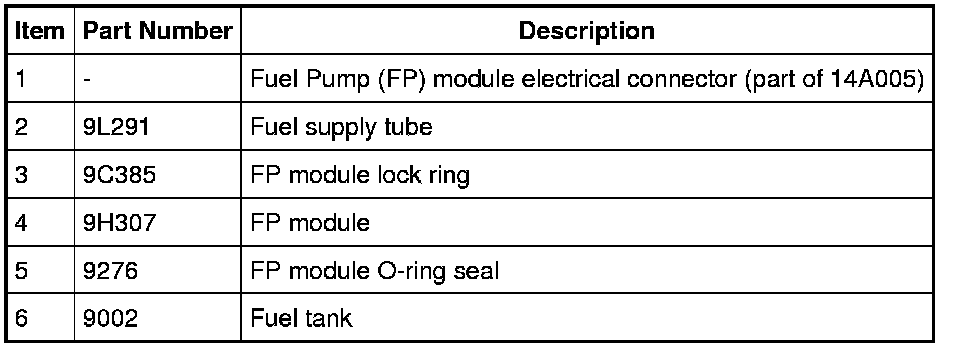

Fuel Fuel Pump (FP) Module and Lock Ring

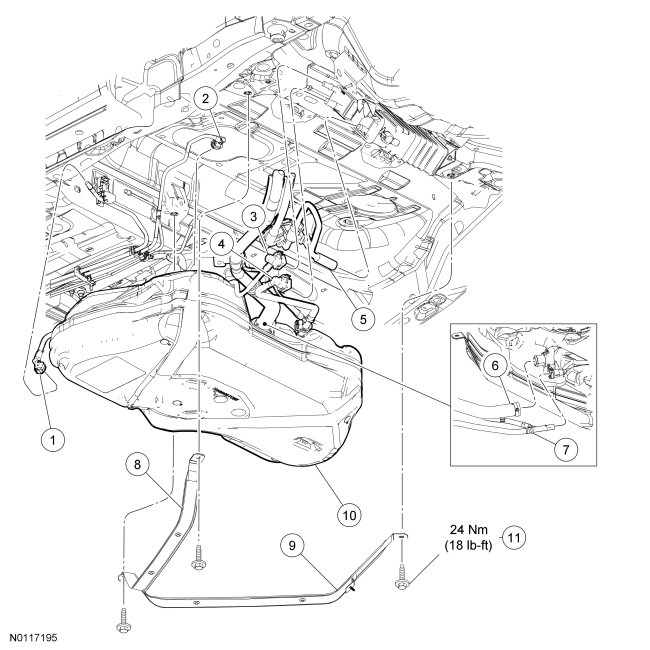

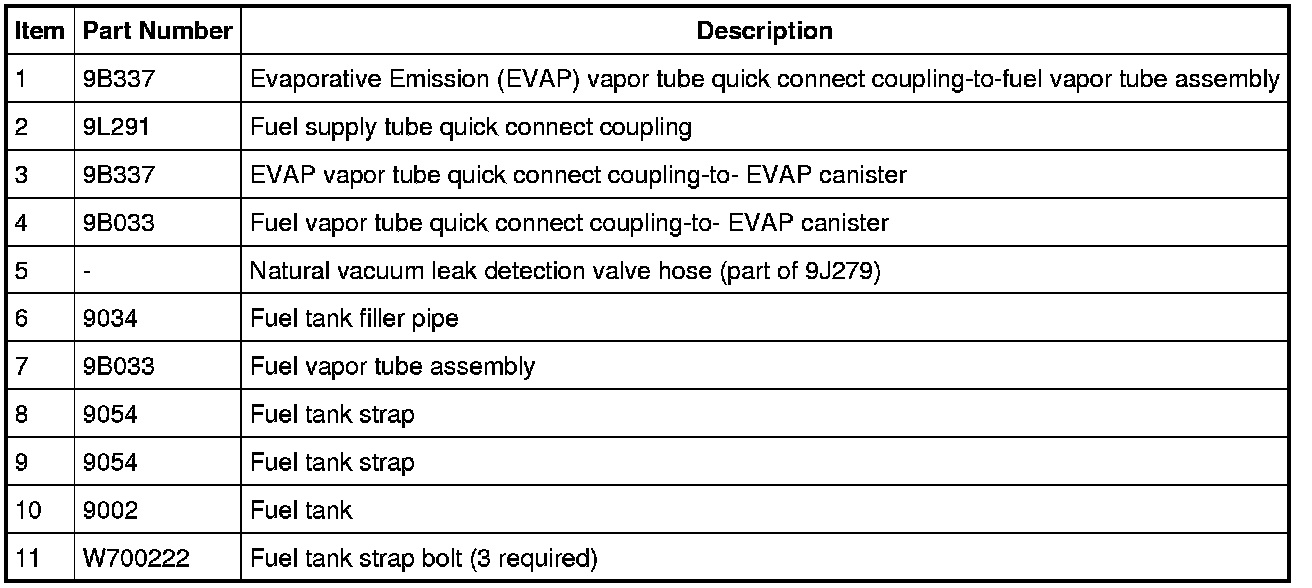

Fuel Tank and Fuel Tank Supports
