This system provides step-by-step module configuration procedures. Carry out the Programmable Module Installation (PMI) procedures Programmable Module Installation (PMI) when directed here from another diagnostic/repair information to carry out configuration or when DTCs from the list below are present:

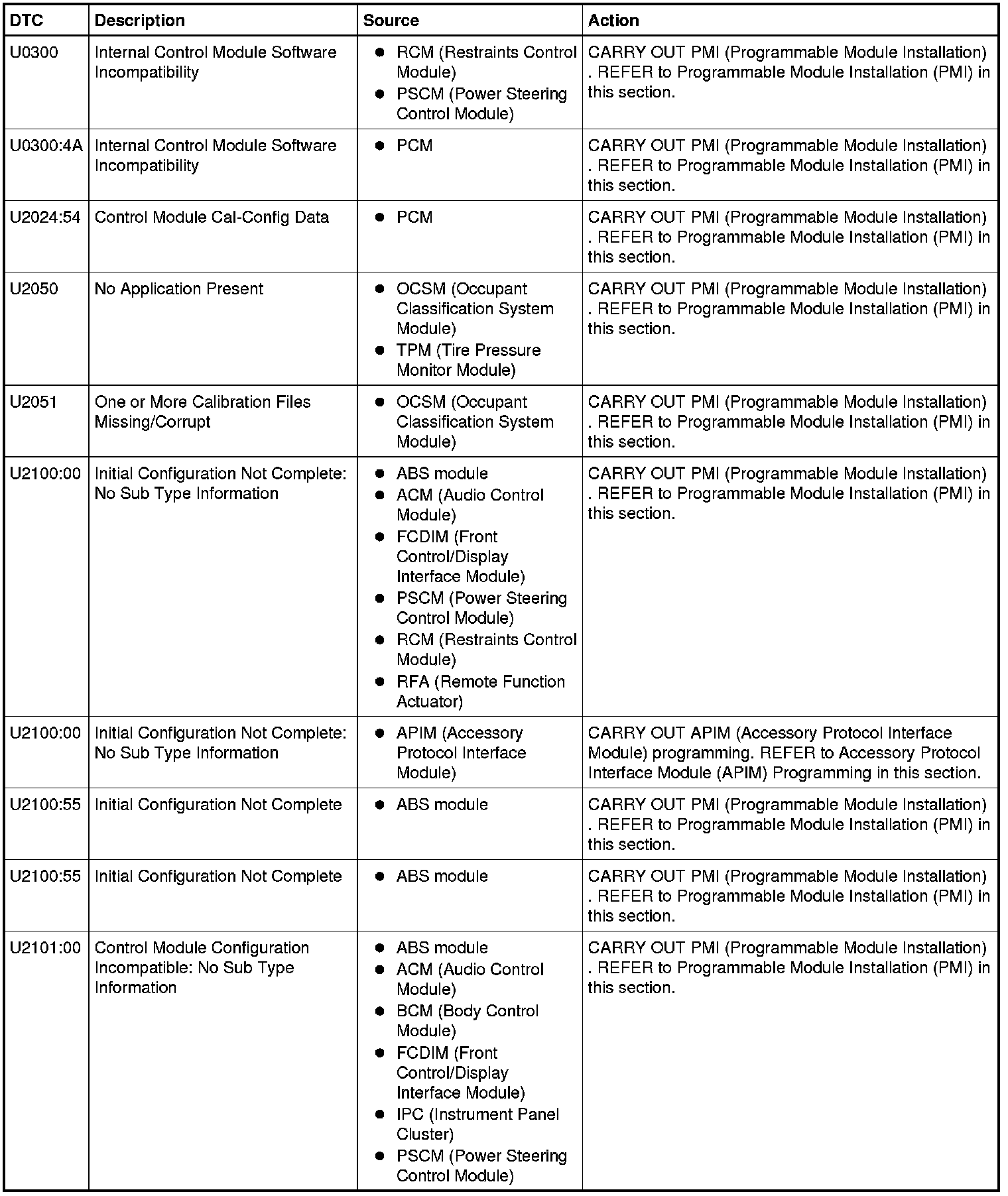

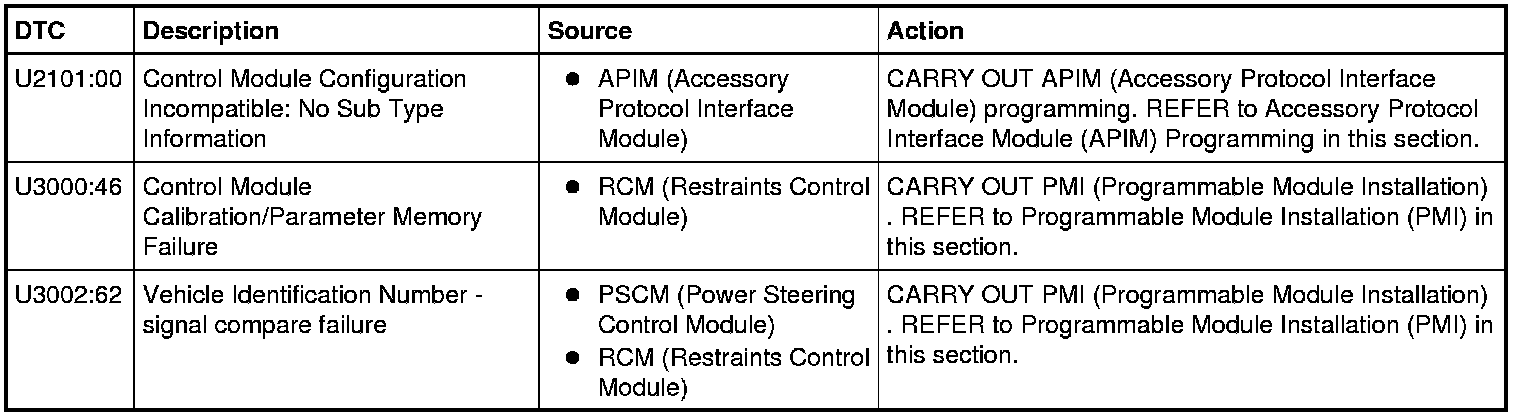

DTC Chart

NOTE: Some modules on this vehicle utilize a 5-character DTC followed by a 2-character failure-type code. The failure-type code provides information about specific fault conditions such as opens, or shorts to ground. Continuous Memory DTCs have an additional 2-character DTC status code suffix to assist in determining DTC history.
