Water Pump





Install a new gasket, the coolant pump and the 6 bolts.

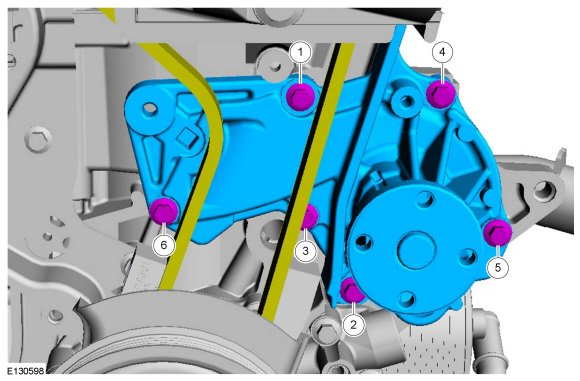

Tighten the bolts in the sequence shown to 10 Nm (89 lb-in).
