Start / Stop Switch: Service and Repair

Start/Stop Switch









Removal and Installation

1. Remove the upper instrument panel finish panel.

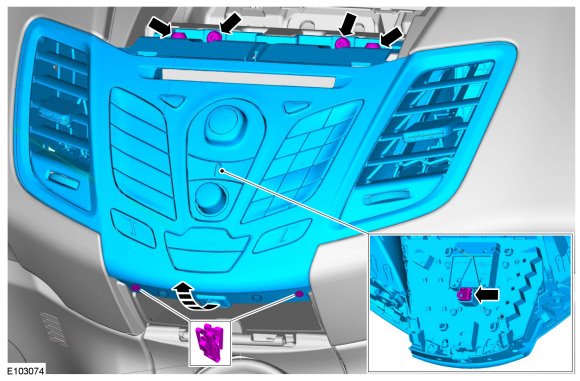

2. Position aside the Front Controls Interface Module (FCIM) finish panel in the following order.
1. Remove the 4 upper screws.

2. Pull outward to detach the 2 lower clips.

3. Disconnect the FCIM (Front Controls Interface Module) electrical connector and position the FCIM (Front Controls Interface Module) finish panel aside.

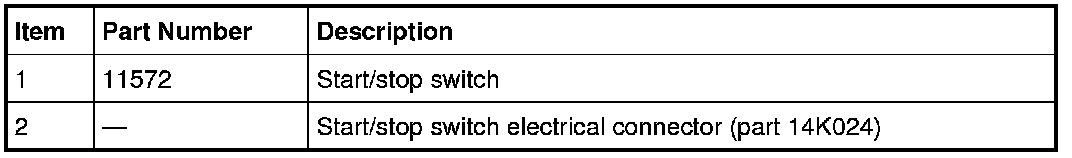

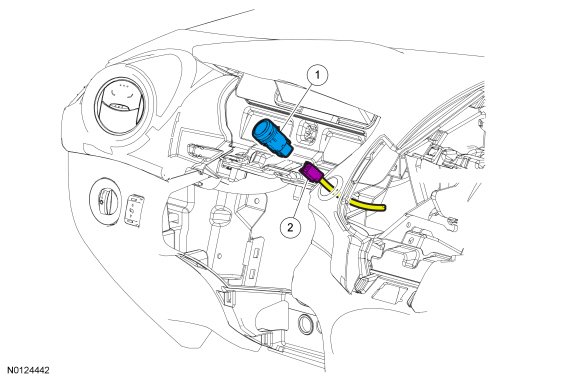

3. Release the 2 start/stop switch tabs (upper and lower) and detach the start/stop switch from the instrument panel.

4. Disconnect the start/stop switch electrical connector and remove the start/stop switch.

5. To install, reverse the removal procedure.
