Fuel Pump Control Module: Notes

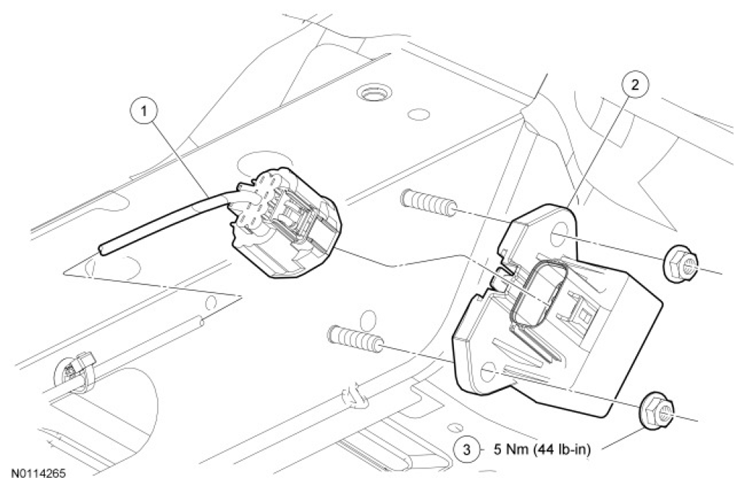

Fig 1: Exploded View Of Fuel Pump Control Module With Torque Specifications
G06937963Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Fuel Pump (FP) control module electrical connector (part of 14A005)
2 9D370 FP  control module
3 W711330 FP  control module nut (2 required)
