Steering Column Shaft

Turn the steering wheel 45 degrees to the right and using a suitable holding device, secure the steering wheel.

Fig 1: Securing Steering Wheel Using Suitable Holding Device
Courtesy of FORD MOTOR CO.

NOTE: Do not allow the steering column to rotate while the steering column shaft is disconnected or damage to the clockspring may result. If there is evidence that the steering column has rotated, remove and recenter the clockspring. For additional information, REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

NOTE: Do not allow the steering column to rotate while the steering column shaft is disconnected or damage to the steering column internal sensor may result.

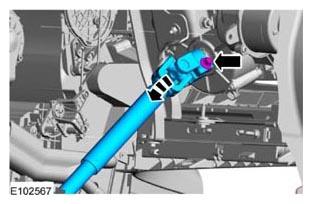

Fig 2: Locating Steering Column Shaft-To-Steering Gear Bolt

Courtesy of FORD MOTOR CO.

Remove and discard the steering column shaft-to-steering gear bolt and disconnect the steering column shaft from the steering gear.
- To install, tighten a new bolt to 32 Nm (24 lb-ft).
Remove and discard the steering column shaft-to-steering column bolt and remove the steering column shaft.
- To install, tighten a new bolt to 33 Nm (24 lb-ft).
Fig 3: Locating Steering Column Shaft-To-Steering Column Bolt
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
