Wheel Speed Sensor - Rear: Notes

NOTE: RH shown in illustration, LH similar. Wheel and tire removed for clarity.

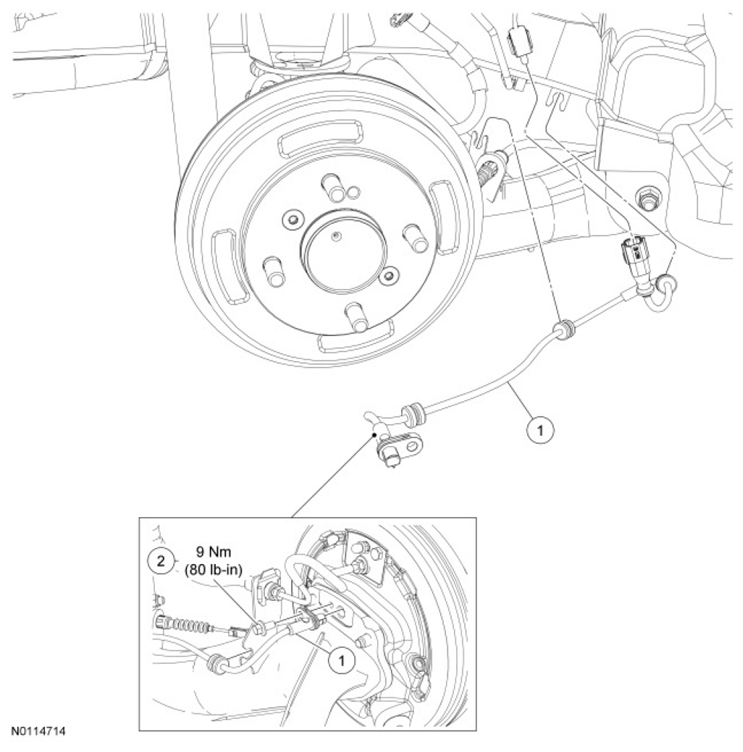

Fig 1: Wheel Speed Sensor Replacement Components With Torque Specifications - Rear
G06938875Courtesy of FORD MOTOR CO.
Item Part Number Description
1 2C204 Wheel speed sensor
2 W500011 Wheel speed sensor bolt (also part of 2C204)
