Variable Valve Timing System Monitor

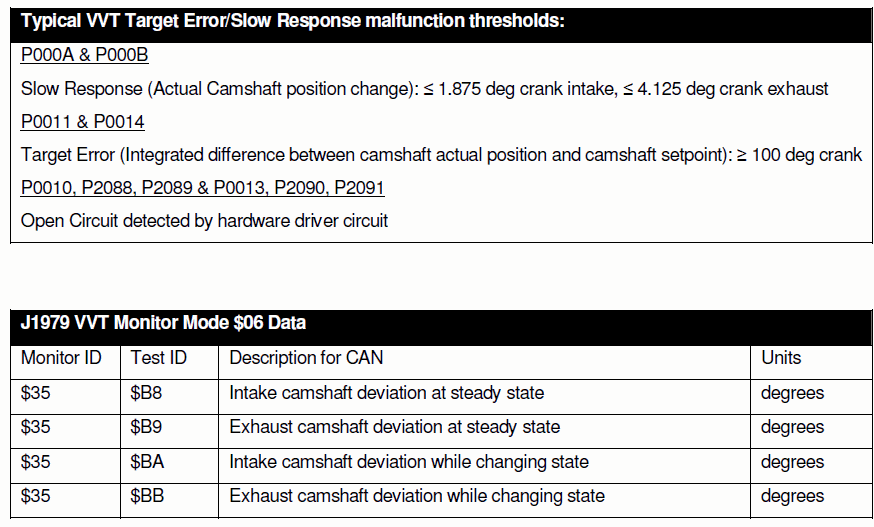

Fig 1: Mode $06 Data For VVT System Monitor
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
