Variable Camshaft Timing (VCT) Oil Control Solenoid

NOTE: Intake solenoid shown in illustration, exhaust solenoid similar.

NOTE: Lubricate the O-ring seals with clean engine oil.

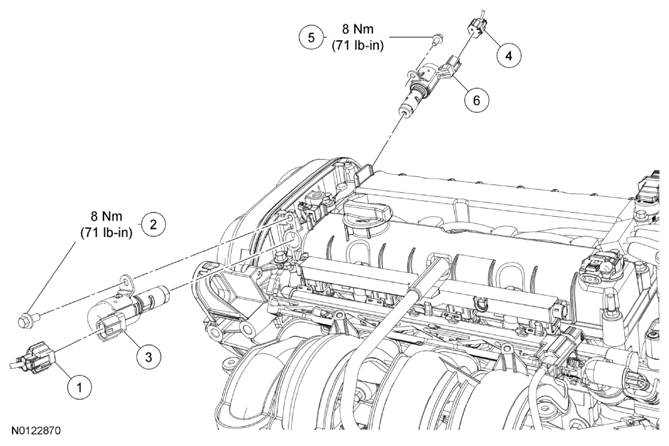

Fig 1: Variable Camshaft Timing Oil Control Solenoid Related Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	LH Variable Camshaft Timing (VCT) oil control solenoid electrical connector
2	W500011	VCT  oil control solenoid bolt (2 required)
3	6L713	VCT  oil control solenoid (2 required)
