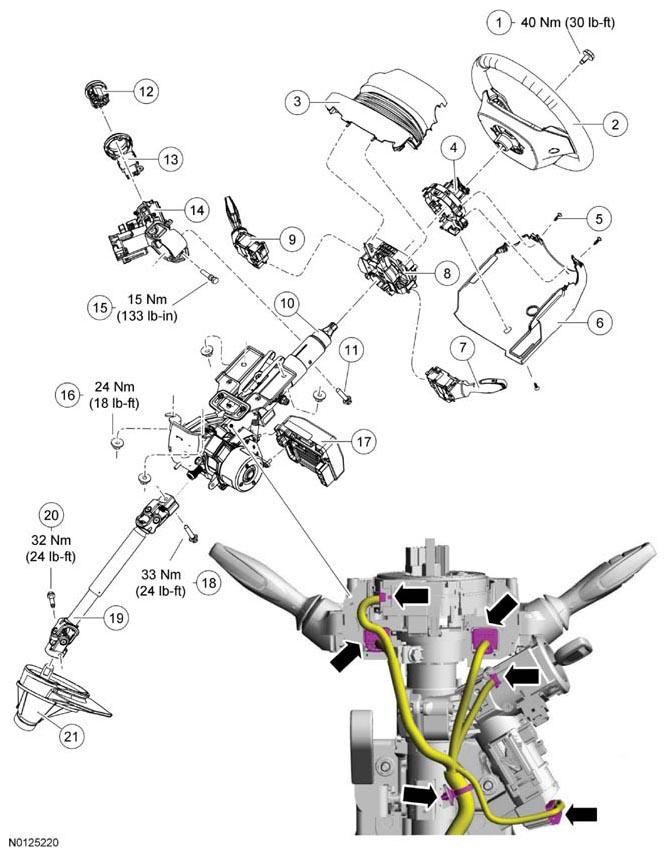

| 1 |
W750985 |
Steering wheel bolt |
| 2 |
3600 |
Steering wheel |
| 3 |
3530A |
Upper steering column shroud |
| 4 |
14A664 |
Clockspring |
| 5 |
W714630 |
Lower steering column shroud screw (3 required) |
| 6 |
3530B |
Lower steering column shroud |
| 7 |
13341 |
Steering column multifunction switch |
| 8 |
3F791 |
Steering column switch carrier |
| 9 |
17A553 |
Wiper/washer switch |
| 10 |
3C529 |
Steering column |
| 11 |
- |
Steering column anti-rotation bolt (M6 x 1 x 30) |
| 12 |
11582 |
Ignition lock cylinder |
| 13 |
15607 |
Passive Anti-Theft System (PATS) transceiver electrical connector (part of 14401) |
| 14 |
3F527 |
Ignition switch/lock cylinder housing (push button start and key start) |
| 15 |
W709942 |
Ignition switch/lock cylinder housing shear bolt (or part of 3F790) |
| 16 |
W520102 |
Steering column nut (4 required) |
| 17 |
- |
Steering column module (part of 3C529) |
| 18 |
3R827A |
Steering column shaft-to-steering column bolt |
| 19 |
3A525 |
Steering column shaft (or part of 3C529) |
| 20 |
3R827B |
Steering column shaft-to-steering gear bolt |
| 21 |
3D677 |
Dash seal |
