Body and Frame: Service and Repair

Side Impact Reinforcement







1. Remove the front seats and center console assembly.
2. Remove the lower B-pillar trim panel.

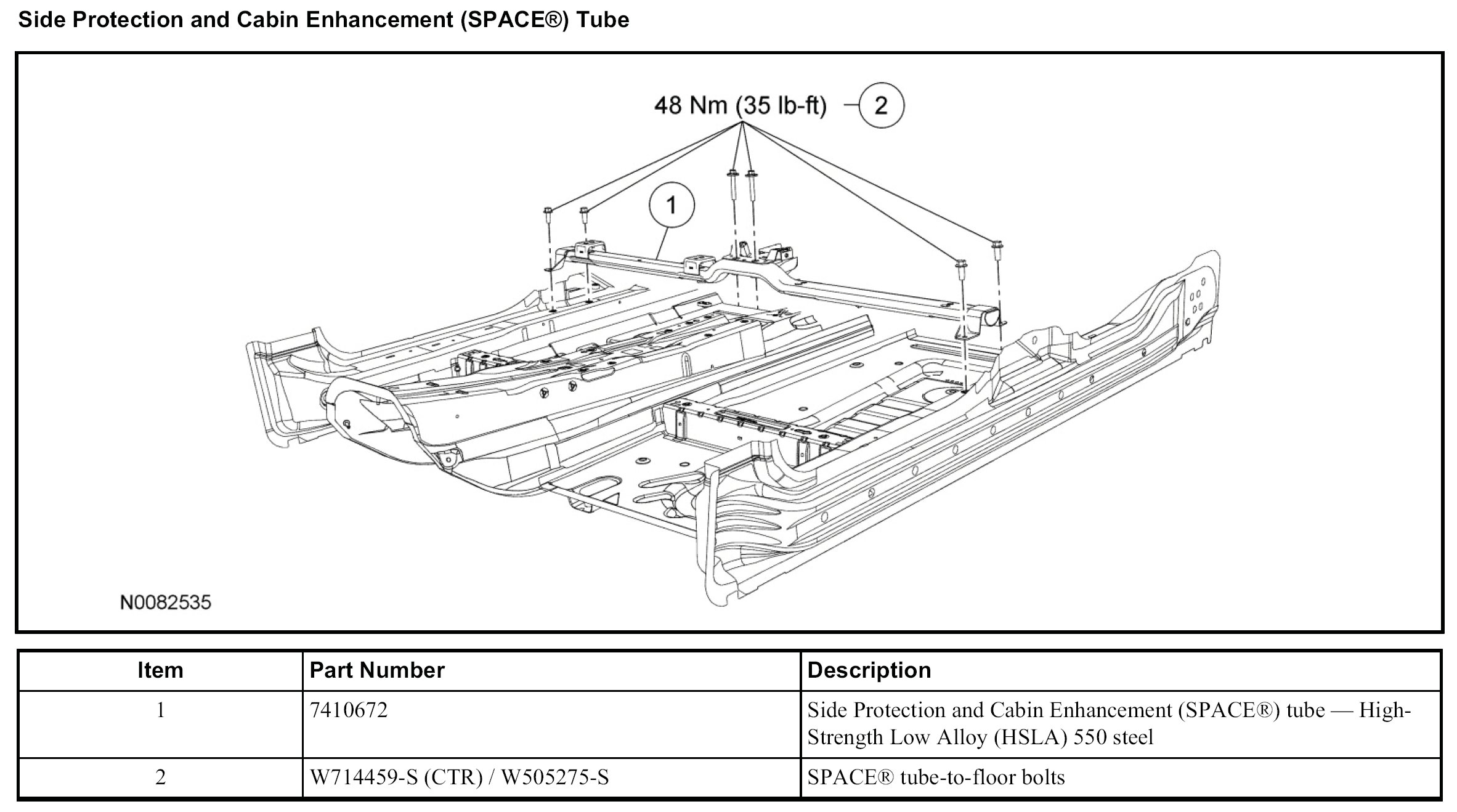

3. Remove the 6 Side Protection and Cabin Enhancement (SPACE(R)) tube-to-floor bolts and remove the SPACE(R) tube assembly.

Installation

1. Position the SPACE(R) tube and install the bolts.
- Tighten to 48 Nm (35 lb-ft).

2. Install the lower B-pillar trim panel.
3. Install the front seats and center console assembly.
