Steering Column Lock Module: Notes

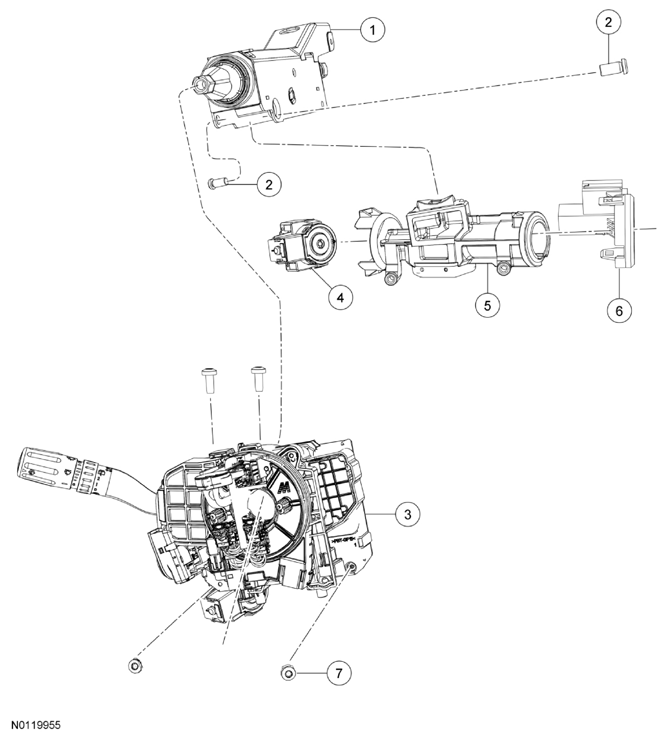

Fig 1: Identifying Steering Column Lock Module Removal And Installation
G08042307Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3C529 Steering column
2 - Sheer bolts (part of 3F527)
3 - Multifunction switch assembly
4 11572 Ignition switch
5 3F527 Steering column lock module
6 15607 PATS
7 W504694 Multifunction switch assembly screws
