Module Communications Network: Notes

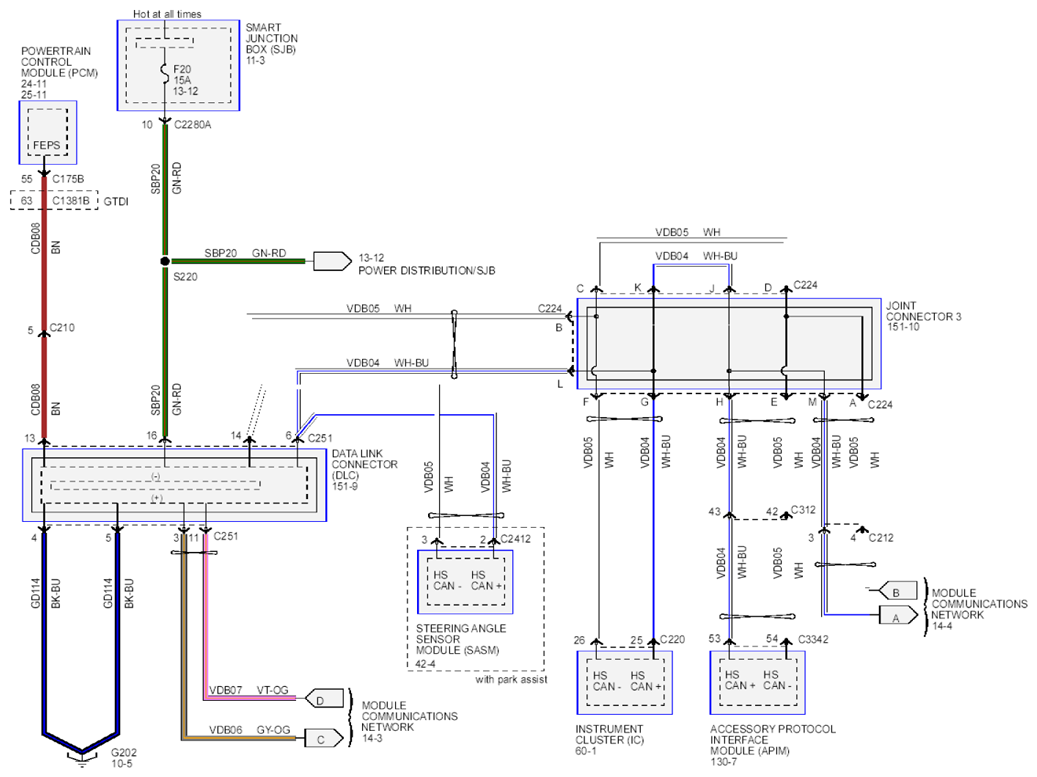

Fig 1: Module Communications Network Circuit Diagram (View 1 Of 7)

Courtesy of FORD MOTOR CO.

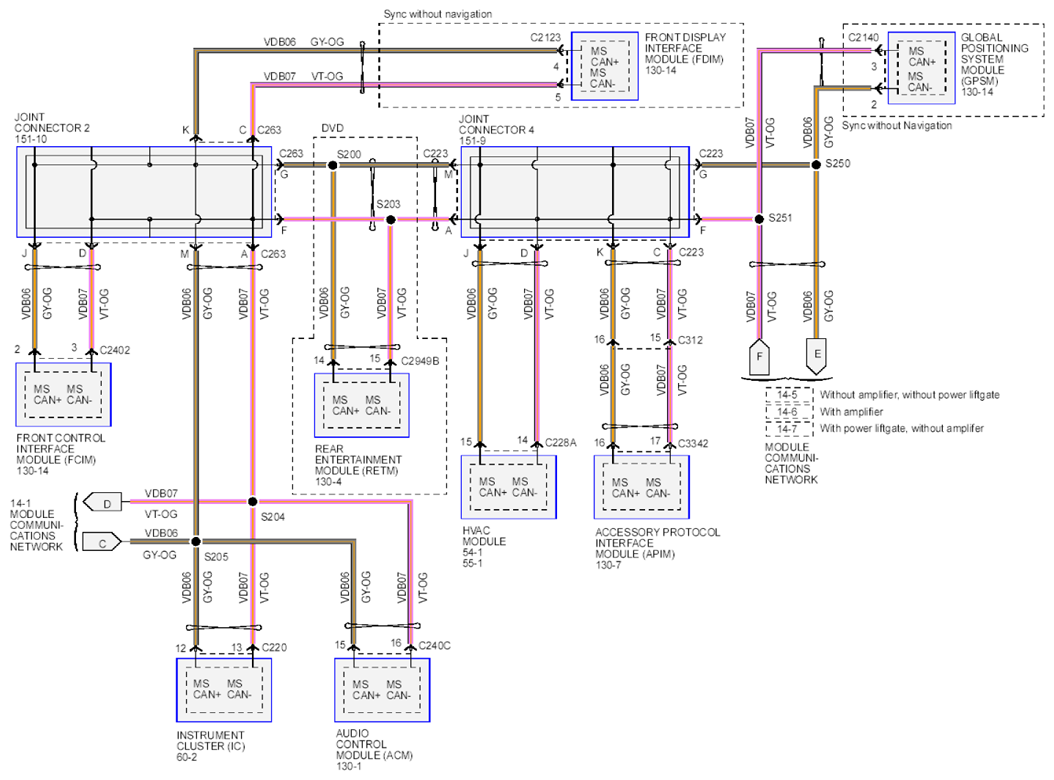

Fig 2: Module Communications Network Circuit Diagram (View 2 Of 7)

Courtesy of FORD MOTOR CO.

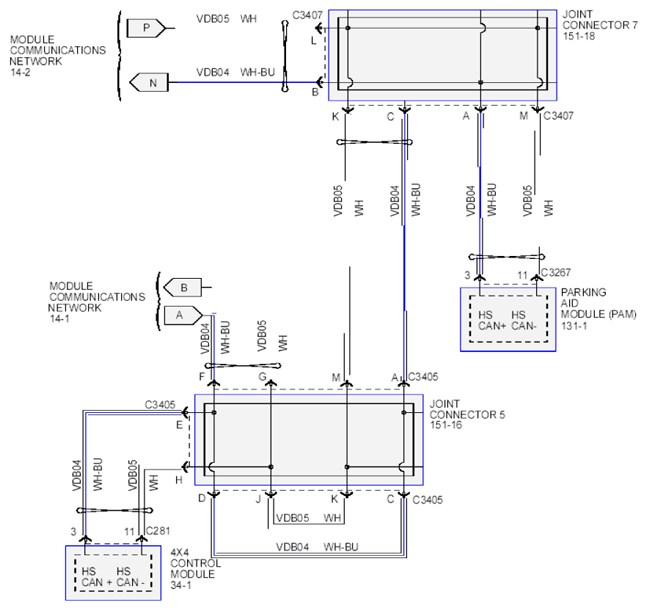

Fig 3: Module Communications Network Circuit Diagram (View 3 Of 7)

Courtesy of FORD MOTOR CO.

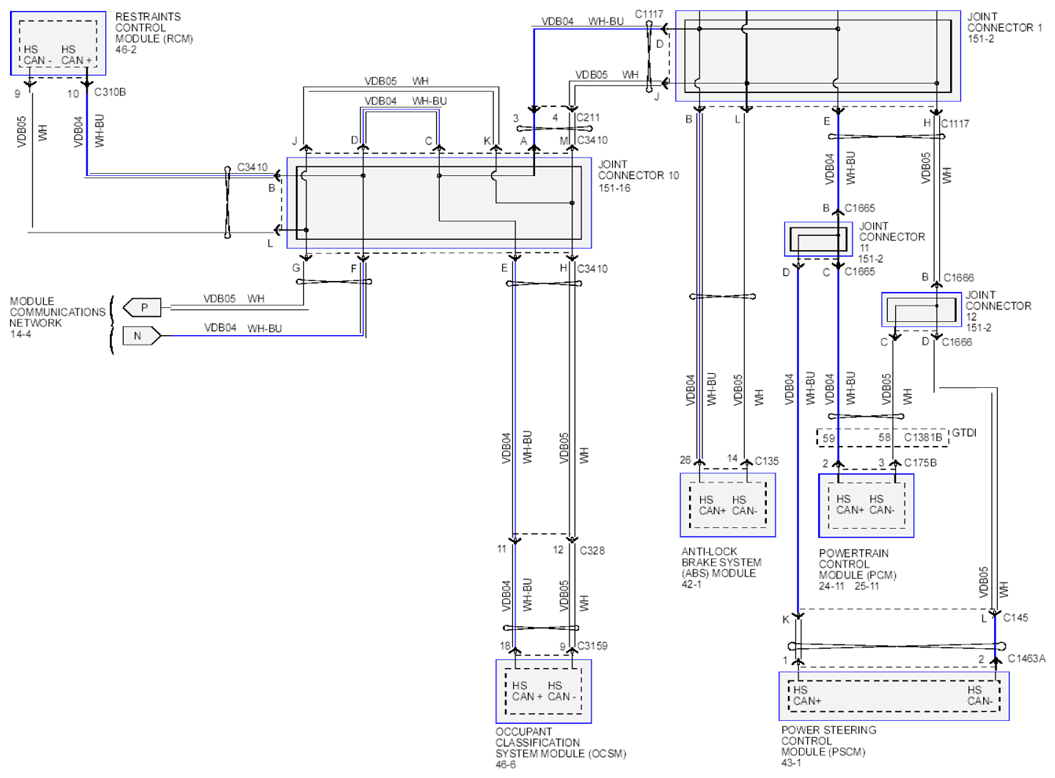

Fig 4: Module Communications Network Circuit Diagram (View 4 Of 7)

Courtesy of FORD MOTOR CO.
