Roof opening panel control switch: Schematic

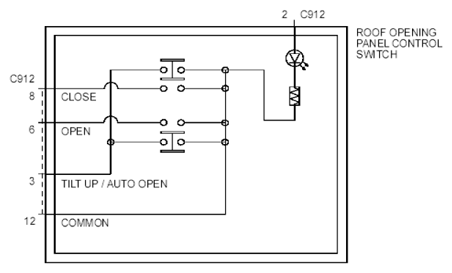

Fig 1: Roof Opening Panel Control Switch Schematic Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
